IMB-C2060 microATX Motherboard
Page 32
CN Location: See Figure 3-17
CN Pinouts: See Table 3-18
Each of these connectors provides RS-232 connections.

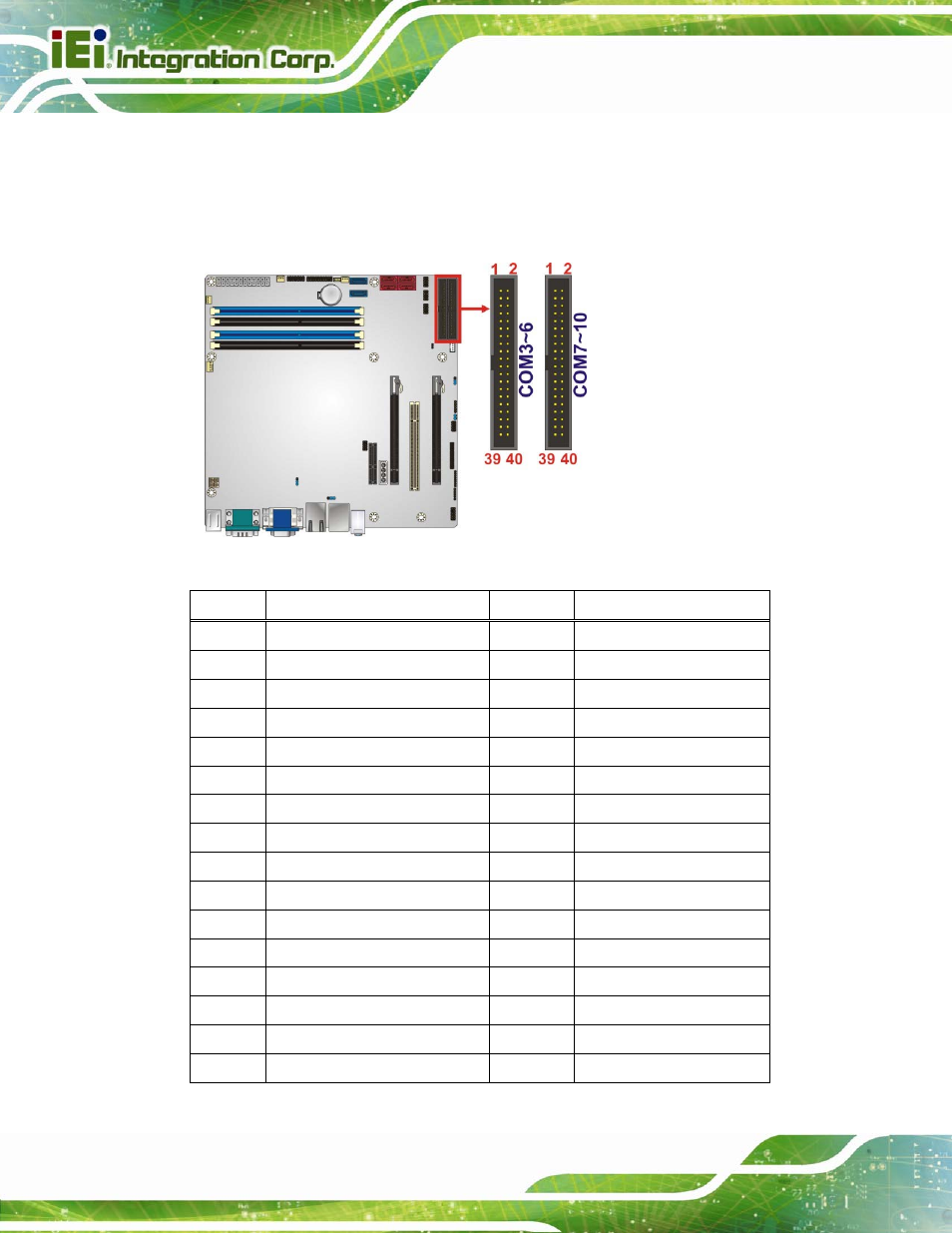

Figure 3-17: Serial Port Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NDCD3# 2 NDSR3#
3 NRXD3 4 NRTS3#
5 NTXD3 6 NCTS3#
7 NDTR3# 8 NRI3#
9 GND 10 GND
11 NDCD4# 12 NDSR4#
13 NRXD4 14 NRTS4#
15 NTXD4 16 NCTS4#
17 NDTR4# 18 NRI4#
19 GND 20 GND
21 NDCD5# 22 NDSR5#
23 NRXD5 24 NRTS5#
25 NTXD5 26 NCTS5#
27 NDTR5# 28 NRI5#
29 GND 30 GND
31 NDCD6# 32 NDSR6#
