IMB-C2060 microATX Motherboard

Page 28

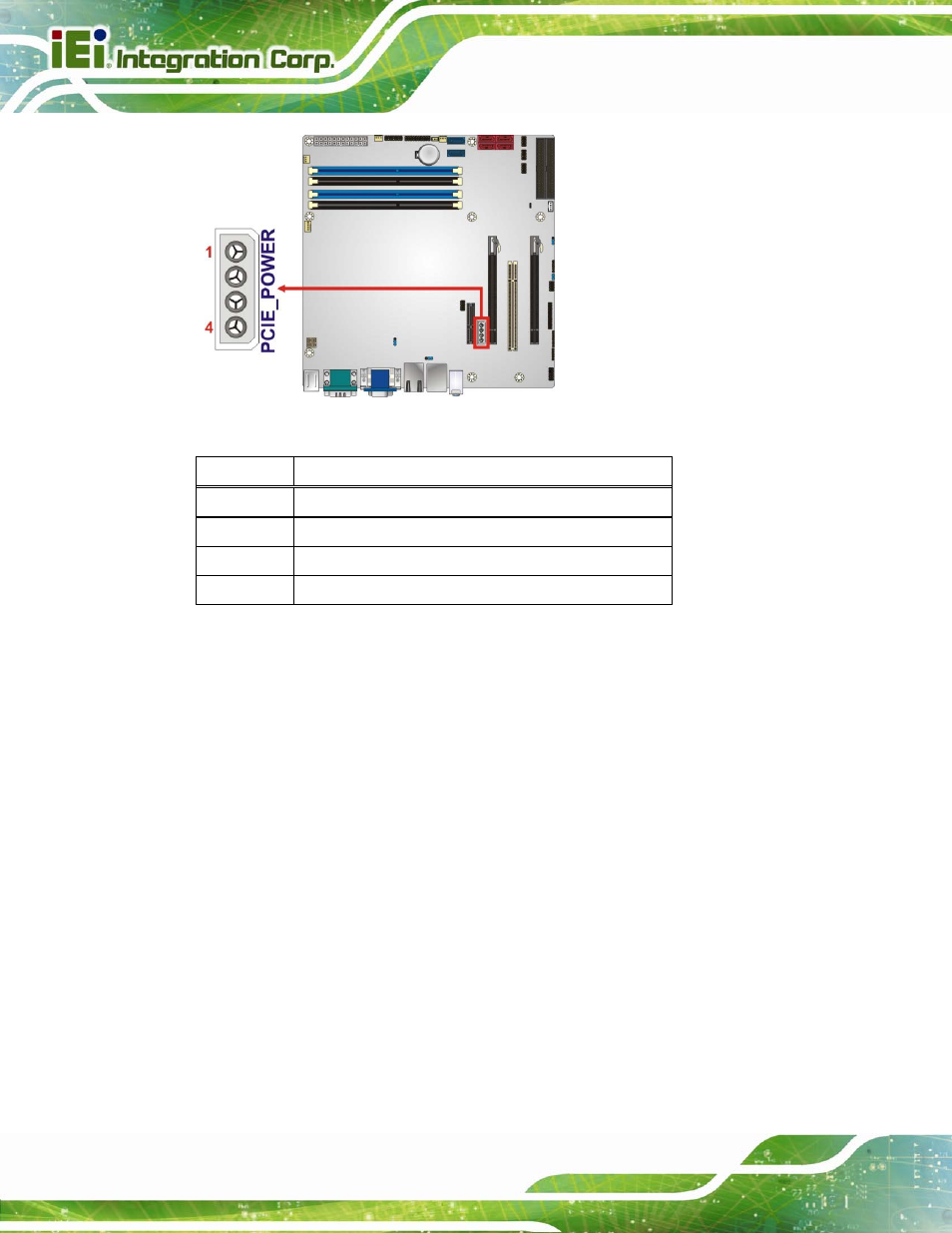

Figure 3-13: PCIe Power Location

Pin Description

1 VCC

+5V

2 GND

3 GND

4 VCC

+12V

Table 3-13: PCIe Power Pinouts

3.2.13 SATA 3Gb/s Drive Connectors

CN Label:

SATA3, SATA4, SATA5, SATA6

CN Type:

7-pin SATA connector

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-14

The SATA drive connectors can be connected to SATA drives.
