Page 71

IMB-C2060 microATX Motherboard

Page 57

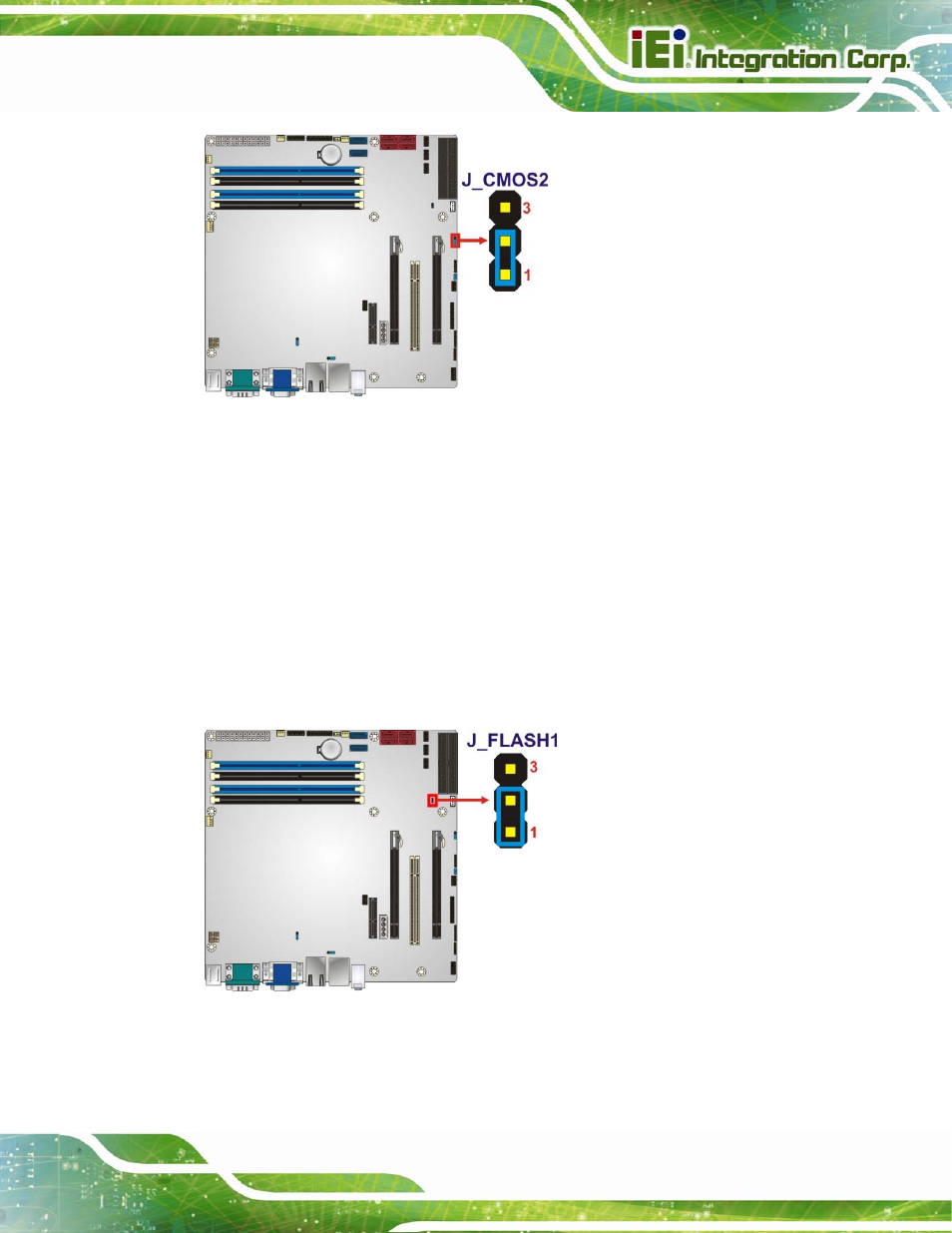

Figure 4-9: Clear BIOS Jumper Location

4.3.3 ME Debug Jumper

CN Label:

J_FLASH1

CN Type:

3-pin header

CN Location:

See Figure 4-10

CN Pinouts:

See Table 4-4

The ME Debug connector allows ME firmware overwrite protection.

Figure 4-10: ME Debug Jumper Location
