IMB-C2060 microATX Motherboard

Page 25

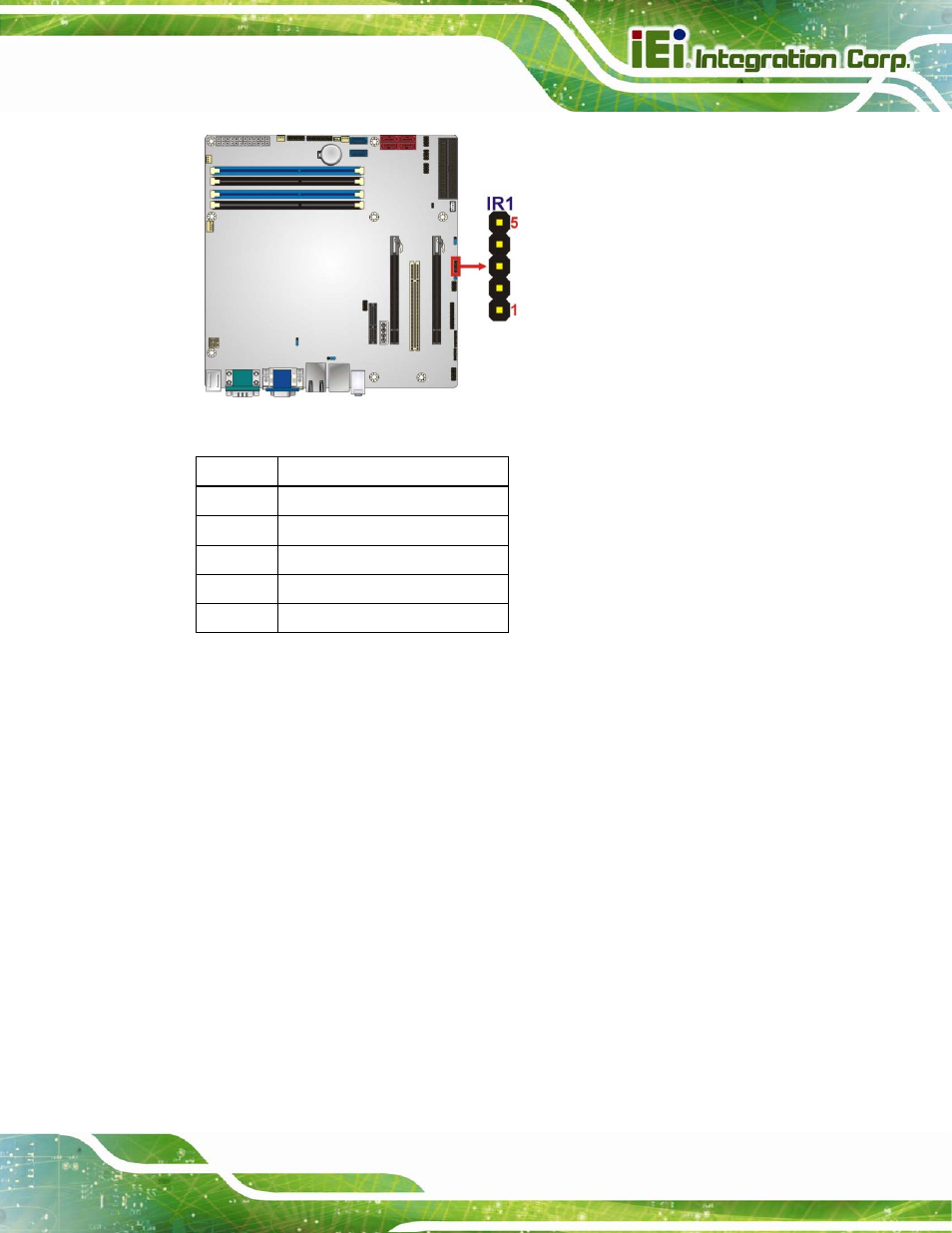

Figure 3-10: Infrared Connector Location

Pin Description

1 +5V

2 NC

3 IR_RX

4 GND

5 IR_TX

Table 3-11: Infrared Connector Pinouts

3.2.10 Memory Card Slot

CN Label:

DIMM1, DIMM2

CN Type:

DDR3 DIMM slot

CN Location:

See

7

Figure 3-11

The DIMM slots are for DIMM memory modules.
