IMB-C2060 microATX Motherboard
Page 41
CN Location: See Figure 3-24
The audio jacks connect to external audio devices.
ƒ Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
ƒ Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
ƒ Microphone (Pink): Connects a microphone.

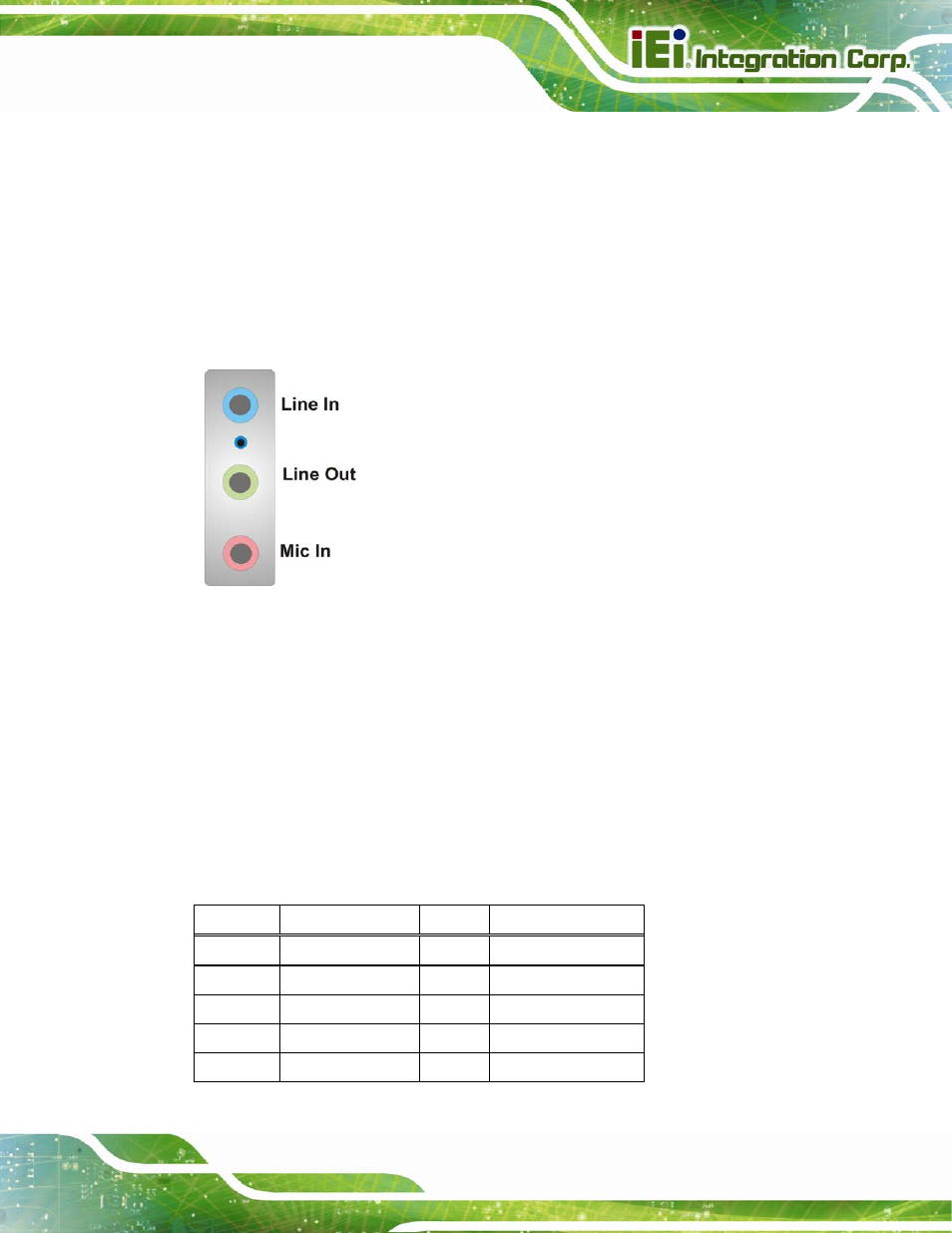

Figure 3-25: Audio Connector
3.3.2 Keyboard/Mouse Connector
CN Label: KBMS
CN Type: Dual PS/2
CN Location: See Figure 3-24
CN Pinouts: See Table 3-29
The PS/2 ports are for connecting a PS/2 mouse and a PS/2 keyboard.
PIN DESCRIPTION PIN DESCRIPTION
1 KB_DATA 8 NC
2 NC 9 GND
3 GND 10 KBPWR
4 KBPWR 11 MS_CLK
5 KB_CLK 12 NC
