3.2.6 Front Panel Audio Connector

CN Label:

FP_AUDIO

CN Type:

10-pin header

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-8

This connector connects to speakers, a microphone and an audio input.

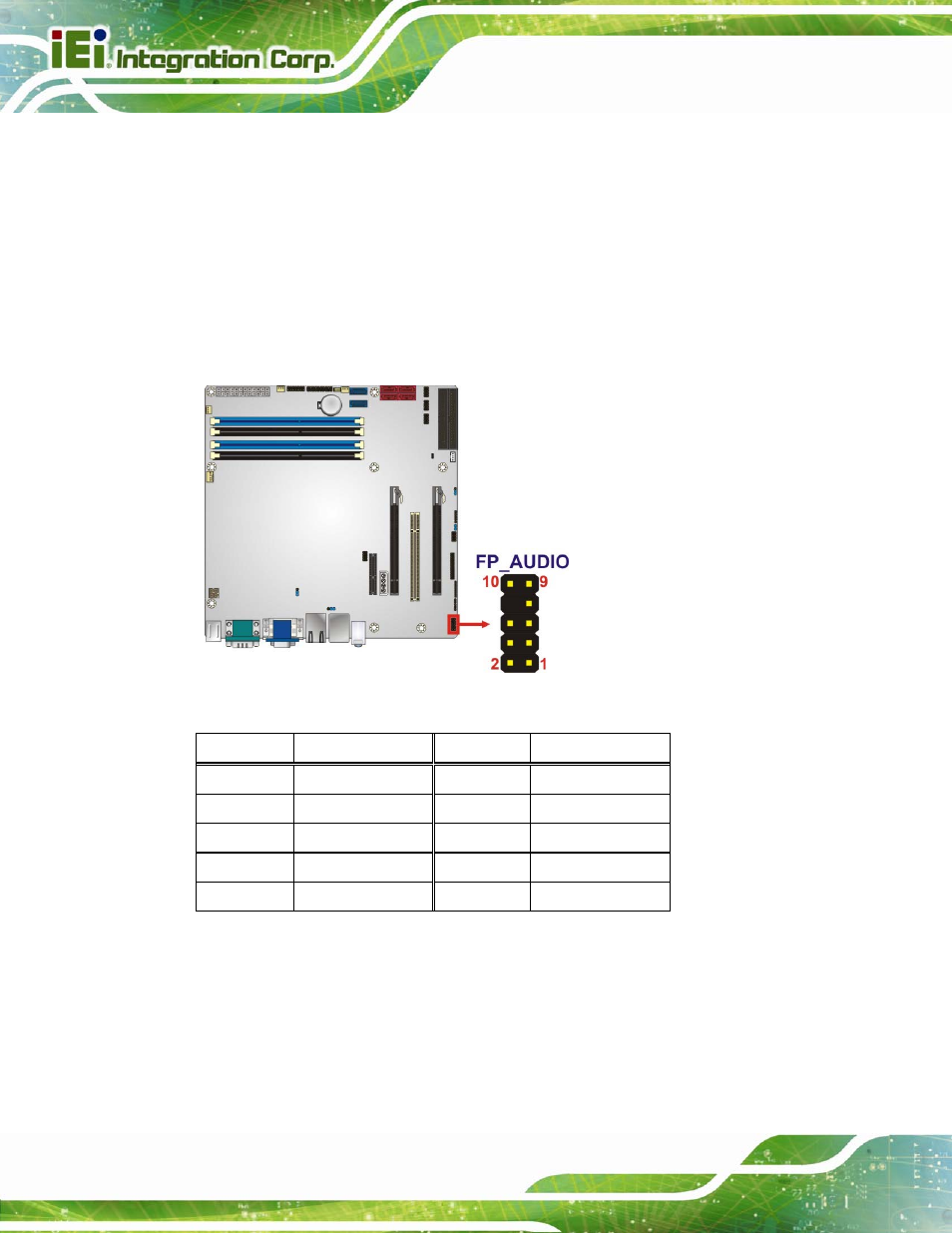

Figure 3-7: Front Panel Audio Connector Location

Pin Description

Pin Description

1 MIC_L 2 Audio

GND

3 MIC_R 4 FP_AUO

DETECT

5 Line_R 6 PD

7 F_SENSE 8 NC

9 Line_L 10

PD

Table 3-8: Front Panel Audio Connector Pinouts

3.2.7 Front Panel Connector

CN Label:

F_PANEL

CN Type:

14-pin header
