IMB-C2060 microATX Motherboard

Page 58

PIN NO.

DESCRIPTION

Short 1-2

Overwrite disable (Default)

Short 2-3

Overwrite enable

Table 4-4: ME Debug Jumper Settings

4.3.4 USB Power Select Jumper

Jumper Label:

USB_PWR1

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-5

Jumper Location:

See Figure 4-11

The USB power connector allows the user to select the USB power setting.

Setting Description

Short 1-2

5V (Default)

Short 2-3

5VSB

Table 4-5: USB Power Select Jumper Settings

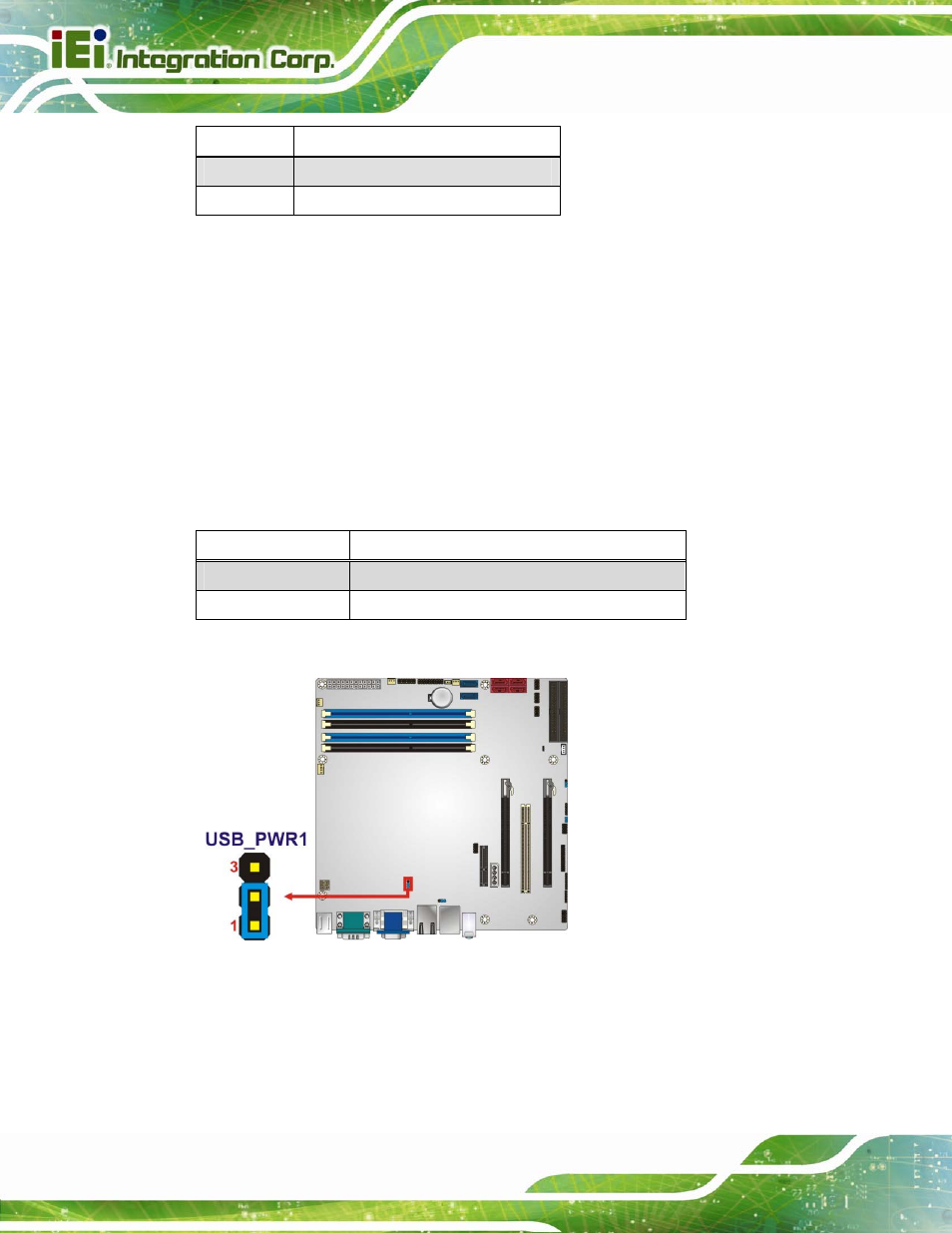

Figure 4-11: USB Power Select Jumper Location
