IMB-C2060 microATX Motherboard
Page 55
4.3 Jumper Settings

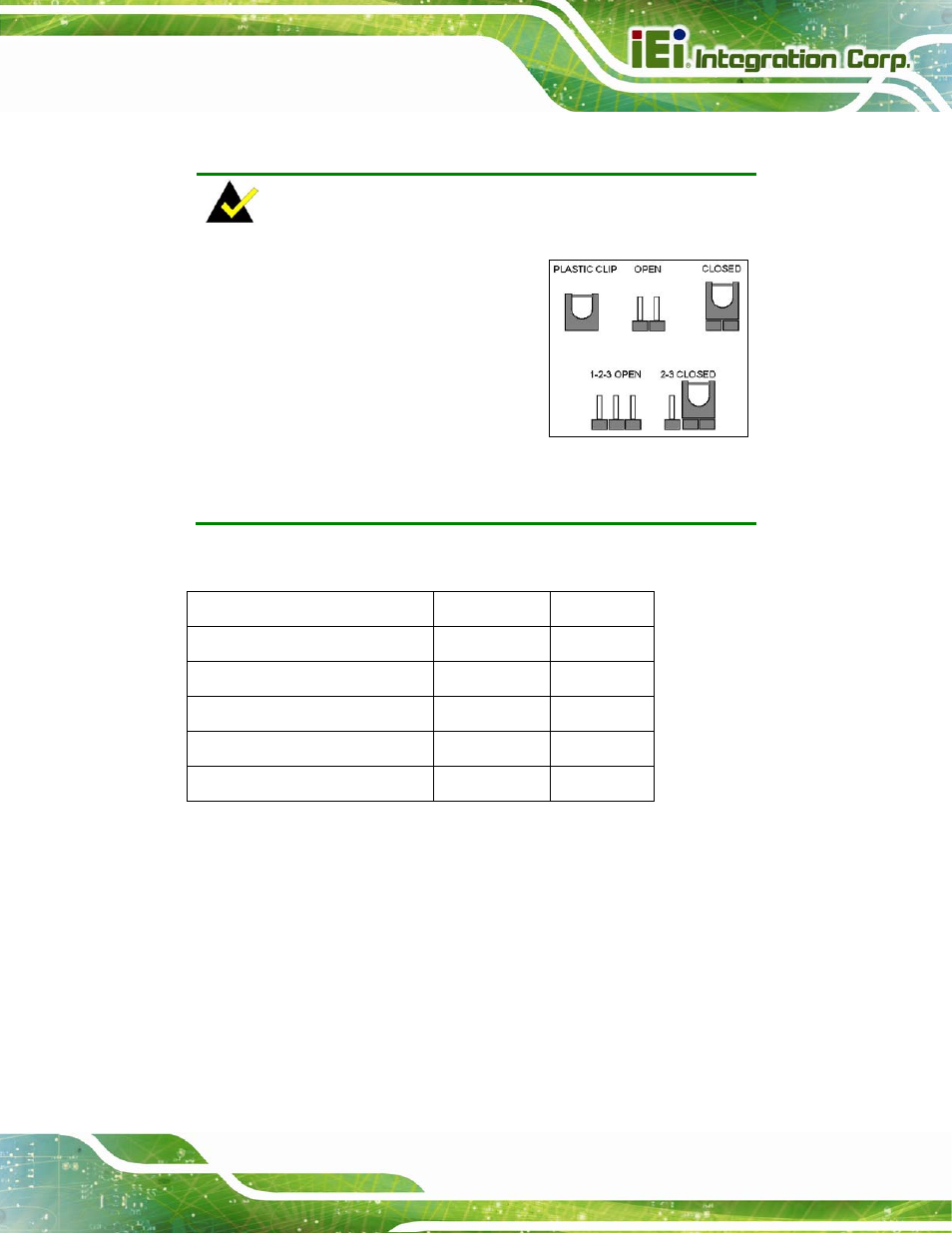

NOTE:
A jumper is a metal bridge used to close
an electrical circuit. It consists of two or
three metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them. To
CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
The hardware jumpers must be set before installation. Jumpers are shown in Table 4-1.
Description Label Type
AT/ATX mode select jumper JATX_AT1 2-pin header
Clear CMOS jumper J_CMOS2 3-pin header
ME Debug connector J_FLASH1 3-pin header
USB power select jumper USB_PWR1 3-pin header
Wake-on LAN WOL_SEL1 3-pin header
Table 4-1: Jumpers
4.3.1 AT/ATX Power Mode Jumper
Jumper Label: JATX_AT1
Jumper Type: 2-pin header
Jumper Settings: See Table 4-2
Jumper Location: See Figure 4-8
The AT Power Select jumper specifies the systems power mode as AT or ATX.
