IMB-C2060 microATX Motherboard
Page 38

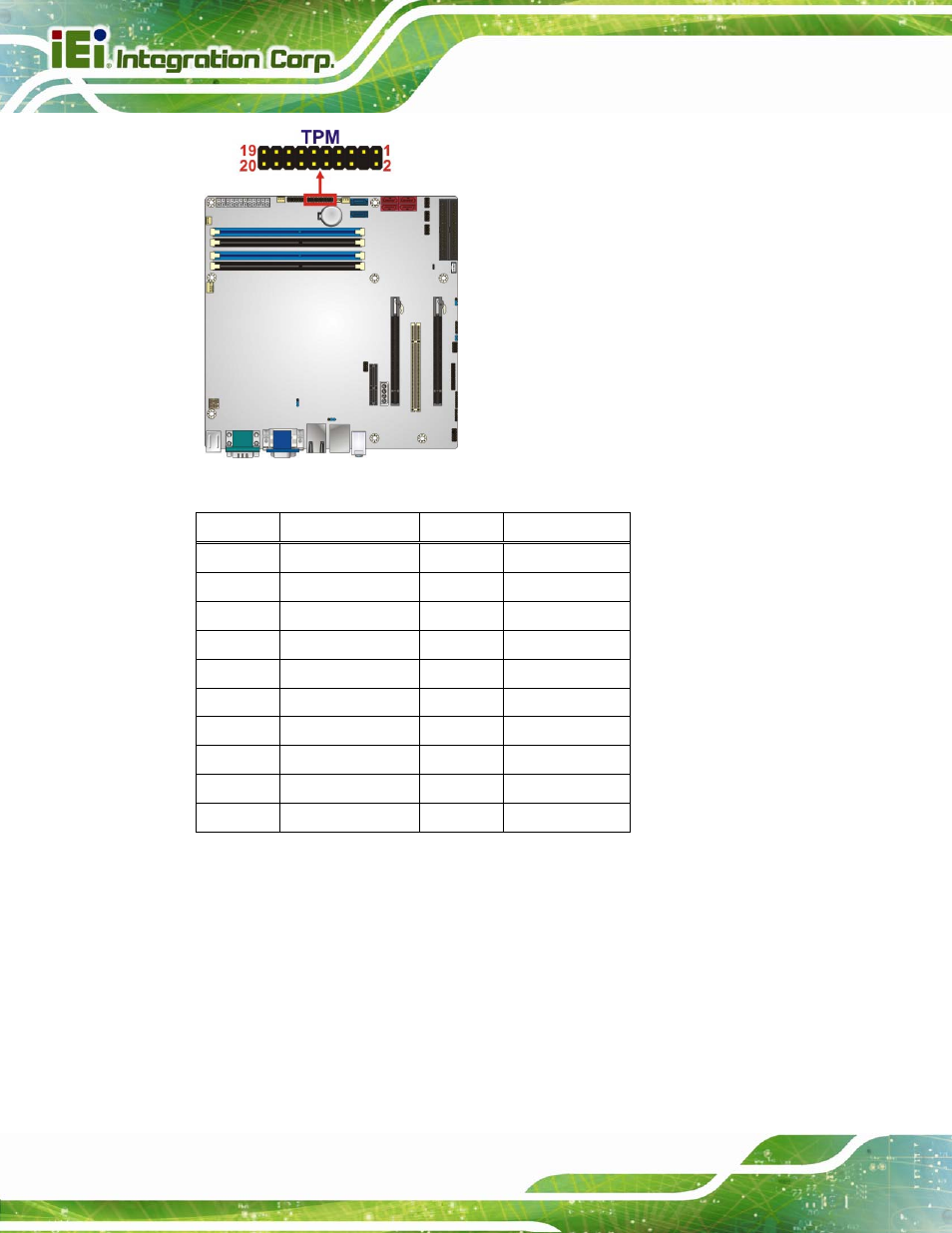

Figure 3-22: TPM Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 TPMCLK 2 GND
3 LFRAME- 4 NC
5 PCIRST4- 6 +5V
7 LAD3 8 LAD2
9 LAD0 10 LAD1
11 GND 12 GND
13 SMBCLK_MAIN 14 SMBDATA_MAIN
15 +3.3V 16 SERIRQ
17 GND 18 CLKRUN-
19 +3.3V 20 LDRQ0-
Table 3-24: TPM Connector Pinouts
3.2.22 USB Connectors
CN Label: USB1, USB2, USB3, USB4
CN Type: 8-pin header
CN Location: See Figure 3-23
CN Pinouts: See Table 3-25 ~ Table 3-28
