IMB-C2060 microATX Motherboard

Page 40

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

7

GND

8

+5V

Table 3-27: USB3 Connector Pinouts

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

+5V

2

GND

3

USB20_C_N8

4

USB20_C_P9

5

USB20_C_P8

6

USB20_C_N9

7

GND

8

+5V

Table 3-28: USB4 Connector Pinouts

3.3 External Peripheral Interface Connector Panel

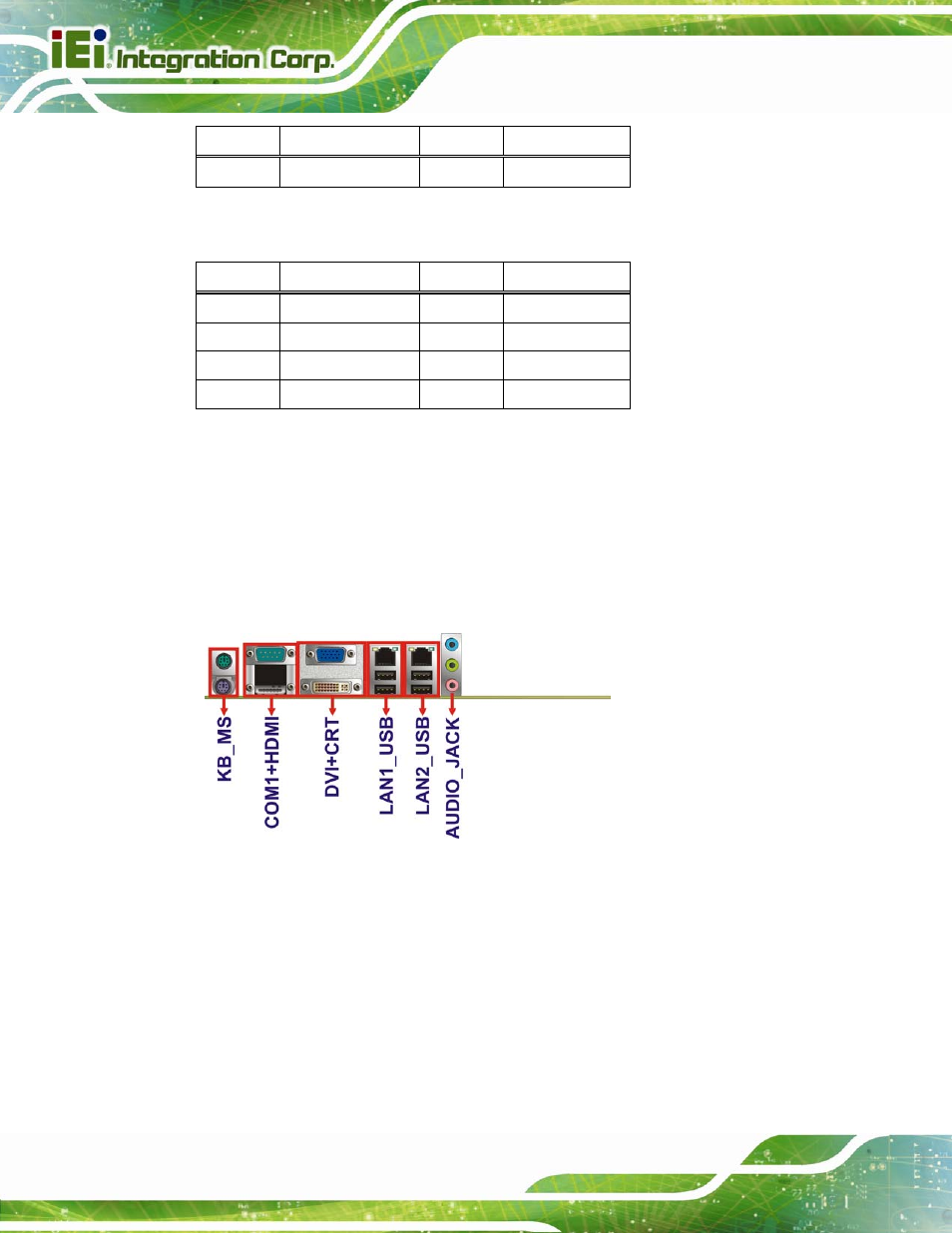

The figure below shows the external peripheral interface connector (EPIC) panel. The

EPIC panel consists of the following:

Figure 3-24: External Peripheral Interface Connector

3.3.1 Audio Connector

CN Label:

AUDIO_JACK

CN Type:

Audio jack
