IMB-C2060 microATX Motherboard

Page 30

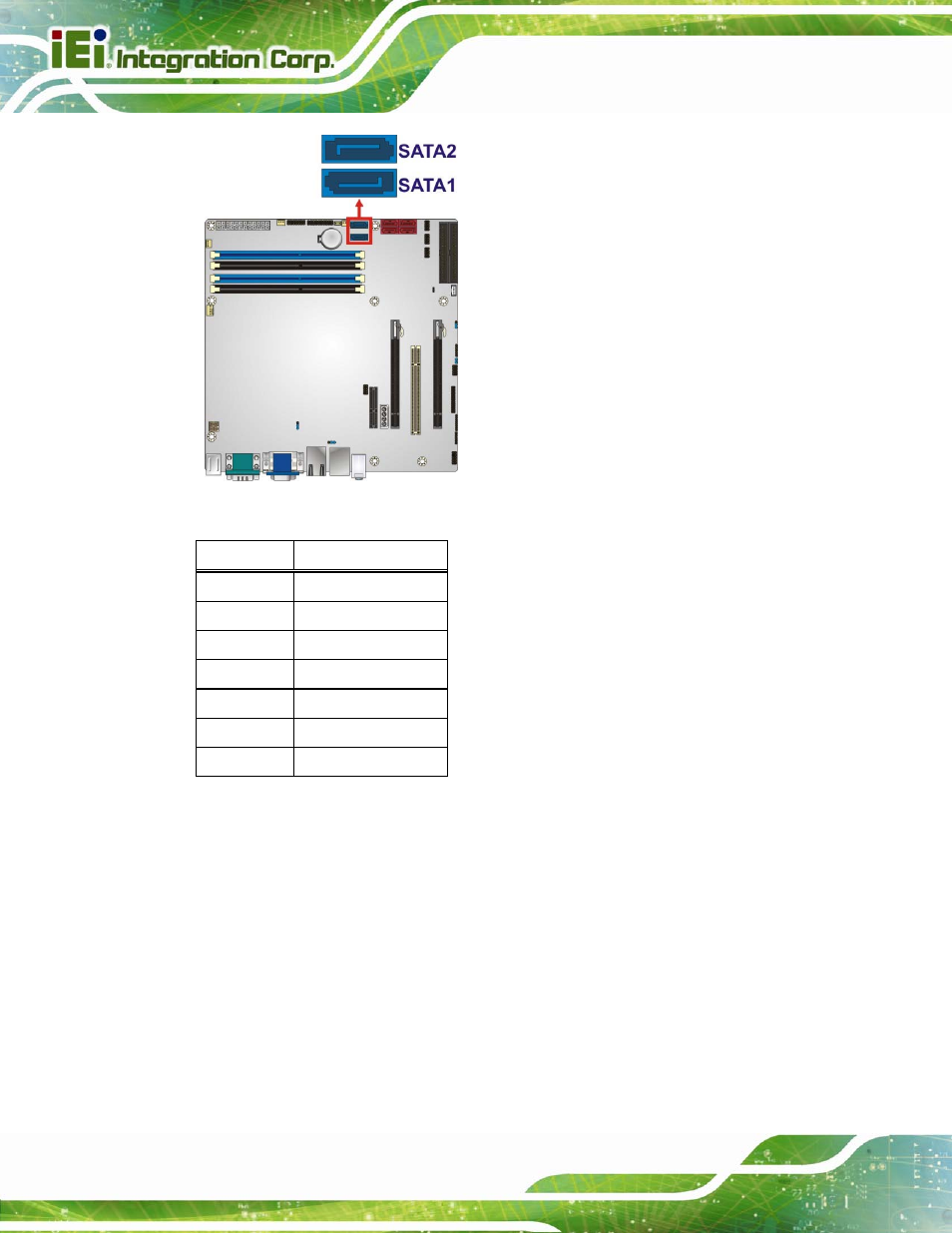

Figure 3-15: SATA 6Gb/s Drive Connector Locations

Pin Description

1 GND

2 SATATXP

3 SATATXN

4 GND

5 SATARXN

6 SATARXP

7 GND

Table 3-15: SATA 6Gb/s Drive Connector Pinouts

3.2.15 Serial Port Connector, RS-422/485

CN Label:

COM2

CN Type:

4-pin wafer

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-16

Used for RS-422/485 communications.
