IMB-C2060 microATX Motherboard

Page 36

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-22

The SPI connector is used to flash the BIOS.

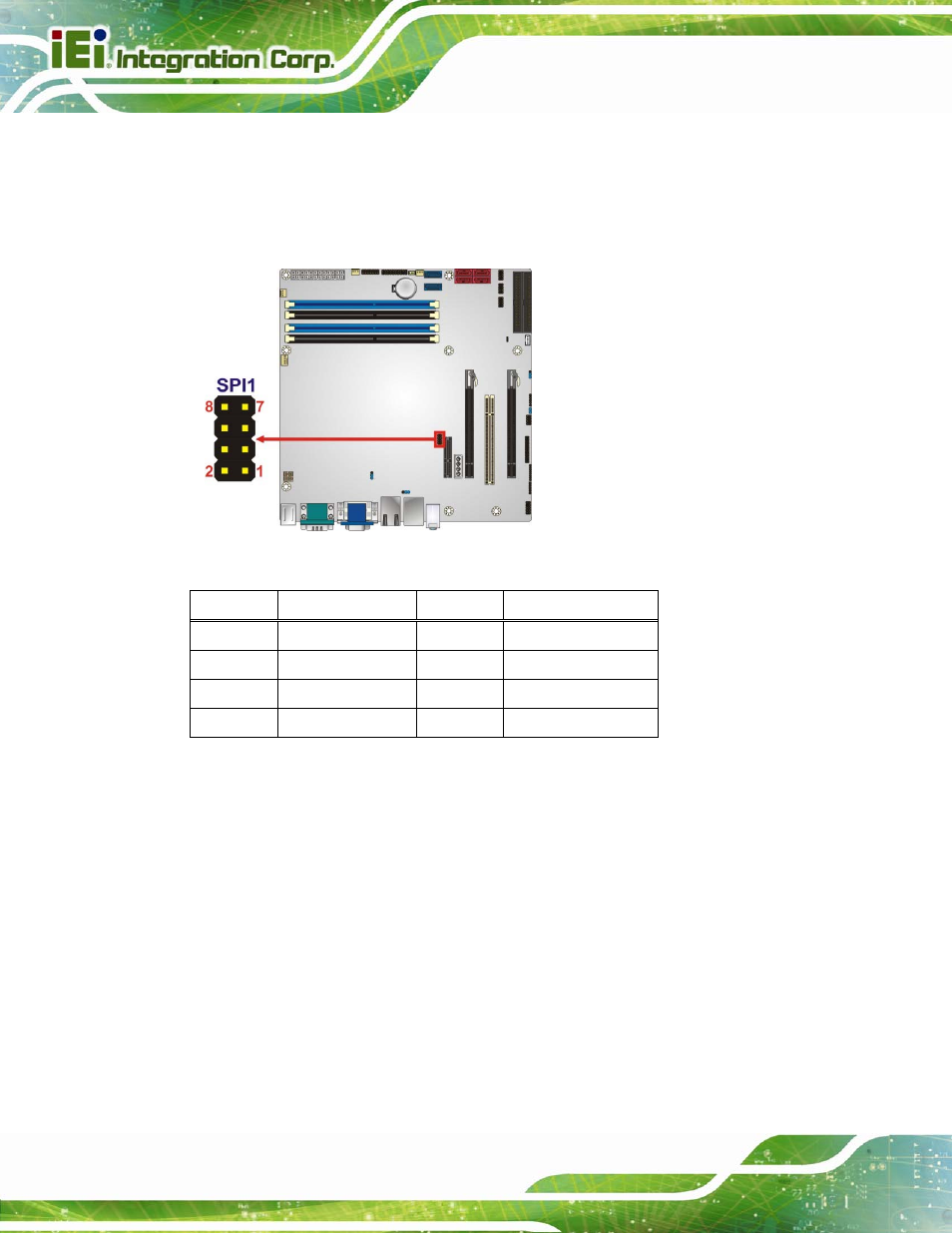

Figure 3-20: SPI Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

+SPI_VCC

2

GND

3

SPI_CS0#_CN

4

SPI_CLK0_CN

5

SPI_SO0_CN

6

SPI_SI0_CN

7

NC

8

NC

Table 3-22: SPI Connector Pinouts

3.2.20 System Fan Connectors

CN Label:

SYS_FAN1, SYS_FAN2

CN Type:

3-pin wafer

CN Location:

See Figure 3-21

CN Pinouts:

See Table 3-23

The fan connector attaches to a cooling fan.
