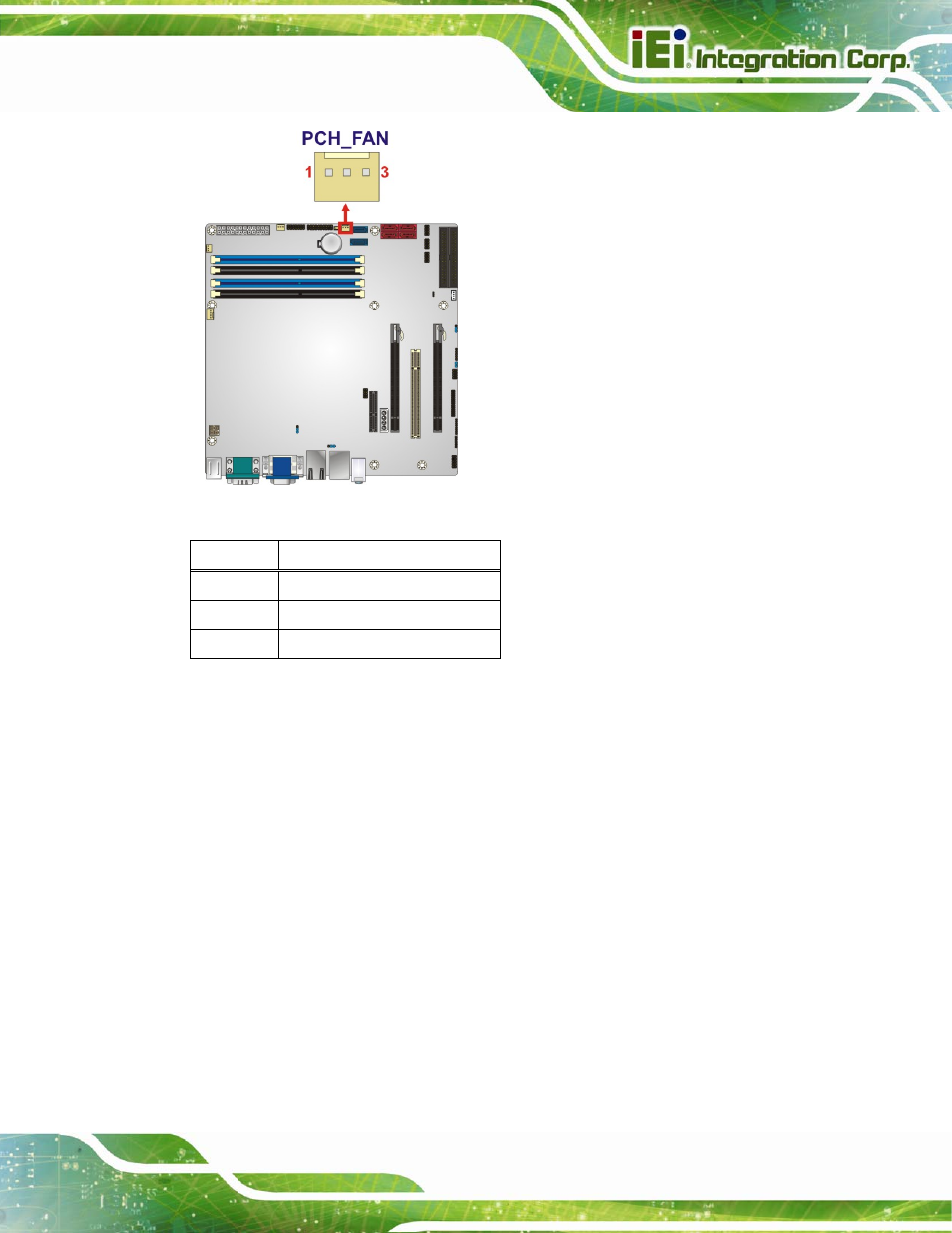

Figure 3-12: PCH Fan Connector Location

Pin Description

1 FANIN

2 +12V

3 GND

Table 3-12: PCH Fan Connector Pinouts

3.2.12 PCI Express Power

CN Label:

PCIE_POWER

CN Type:

4-pin connector

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-13

Provides extra power to the PCIe x16 card.
