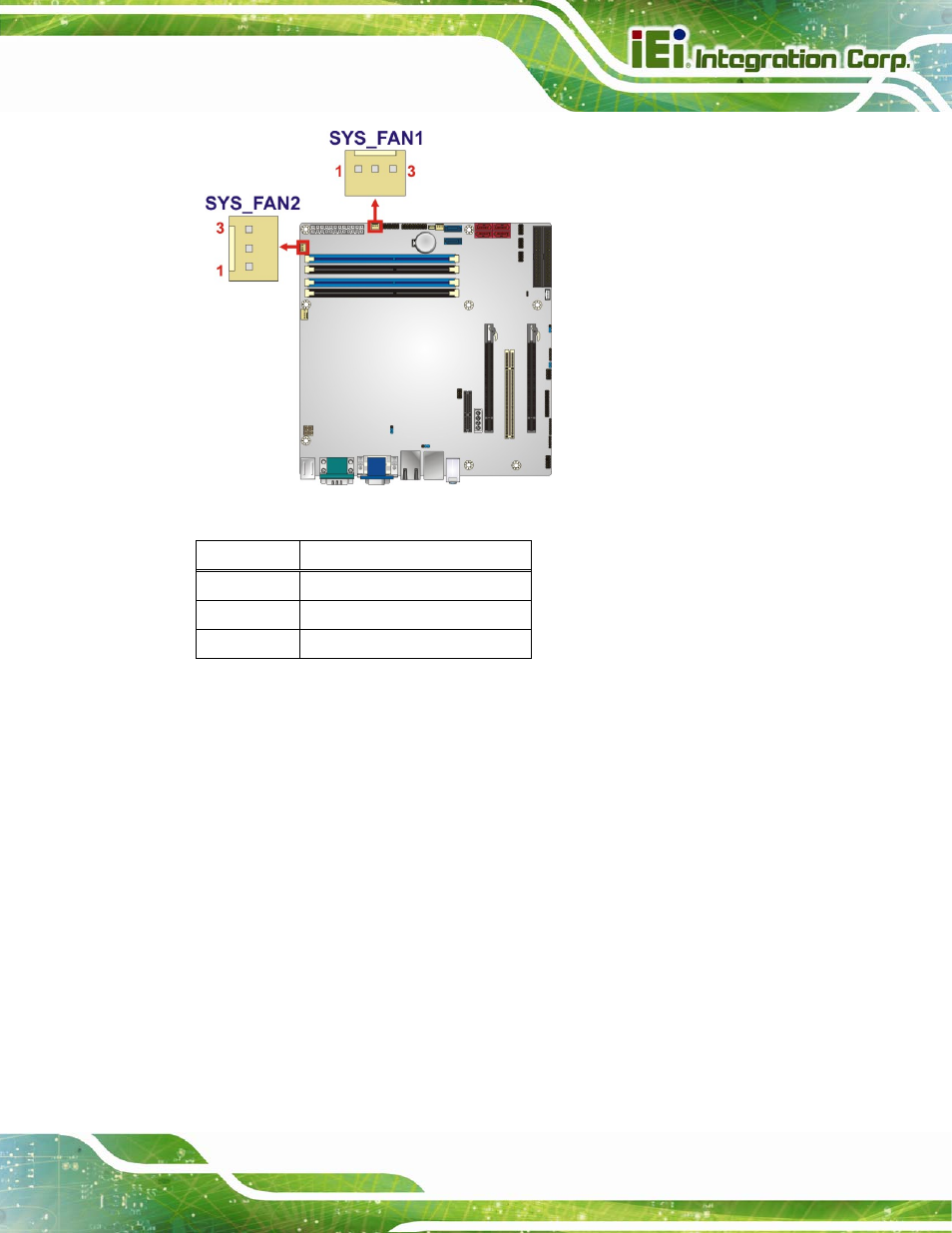

Figure 3-21: System Fan Connector Locations

PIN NO.

DESCRIPTION

1

NC

2

+12 V

3

GND

Table 3-23: System Fan Connector Pinouts

3.2.21 TPM Connector

CN Label:

TPM1

CN Type:

20-pin header

CN Location:

See Figure 3-22

CN Pinouts:

See Table 3-24

The TPM connector connects to a TPM module.
