IMB-C2060 microATX Motherboard
Page 60
4.4 Internal Peripheral Device Connections
This section outlines the installation of peripheral devices to the onboard connectors.
4.4.1 SATA Drive Connection
The IMB-C2060 is shipped with four SATA drive cables. To connect the SATA drives to
the connectors, please follow the steps below.
Step 1:
Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 2:
Insert the cable connector. Insert the cable connector into the on-board SATA
drive connector. See Figure 4-13.

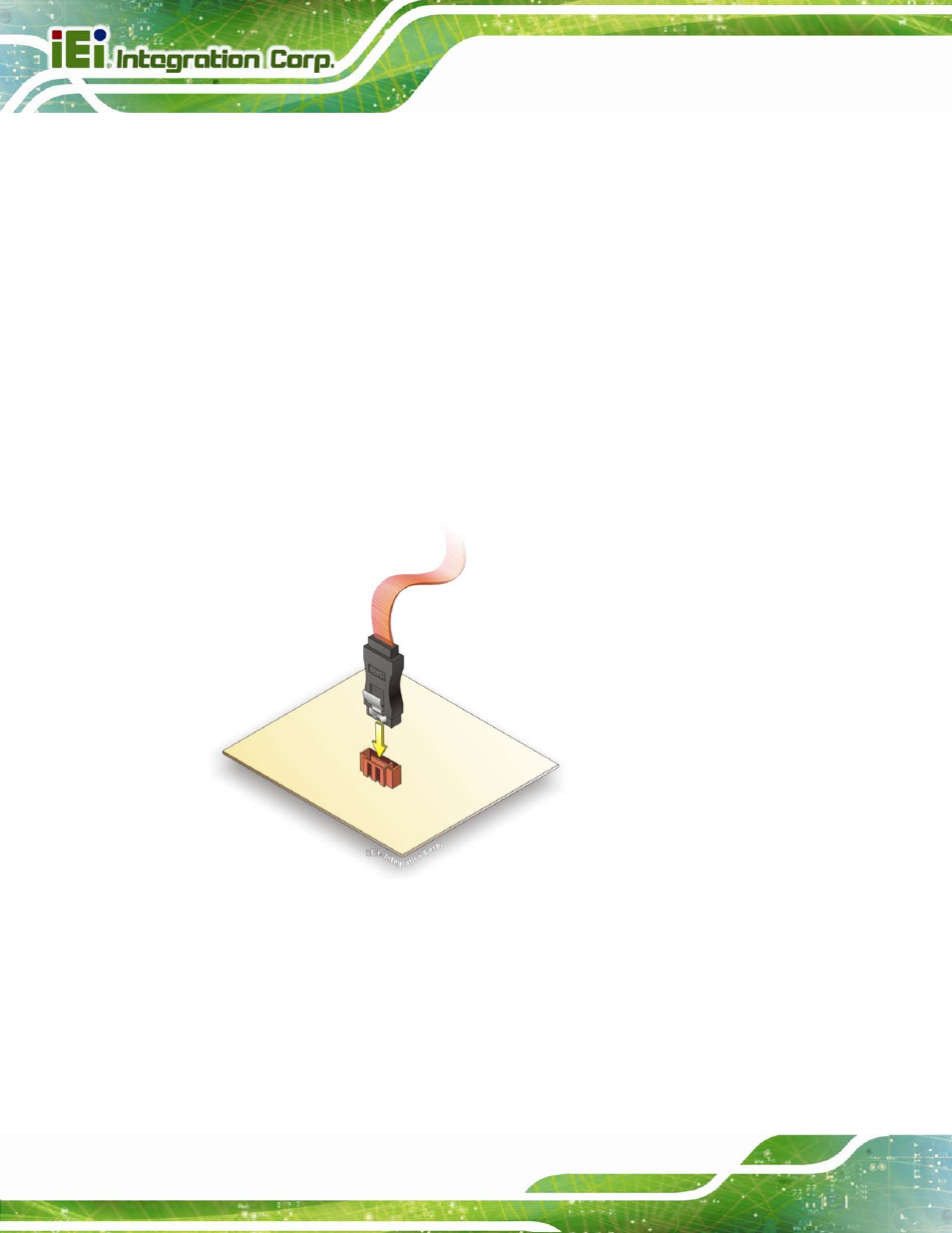

Figure 4-13: SATA Drive Cable Connection
Step 3:
Connect the cable to the SATA disk. Connect the connector on the other end
of the cable to the connector at the back of the SATA drive. See Figure 4-14.
Step 4:
Connect the SATA power cable (optional). Connect the SATA power
connector to the back of the SATA drive. See Figure 4-14.
