4.9.2 LAN Connection (Dual Connector)

There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

Step 1:

Locate the RJ-45 connectors. The location of the LAN connector is shown in

Chapter 3.

Step 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the KINO-PV-D5252/D4252. See Figure 4-16.

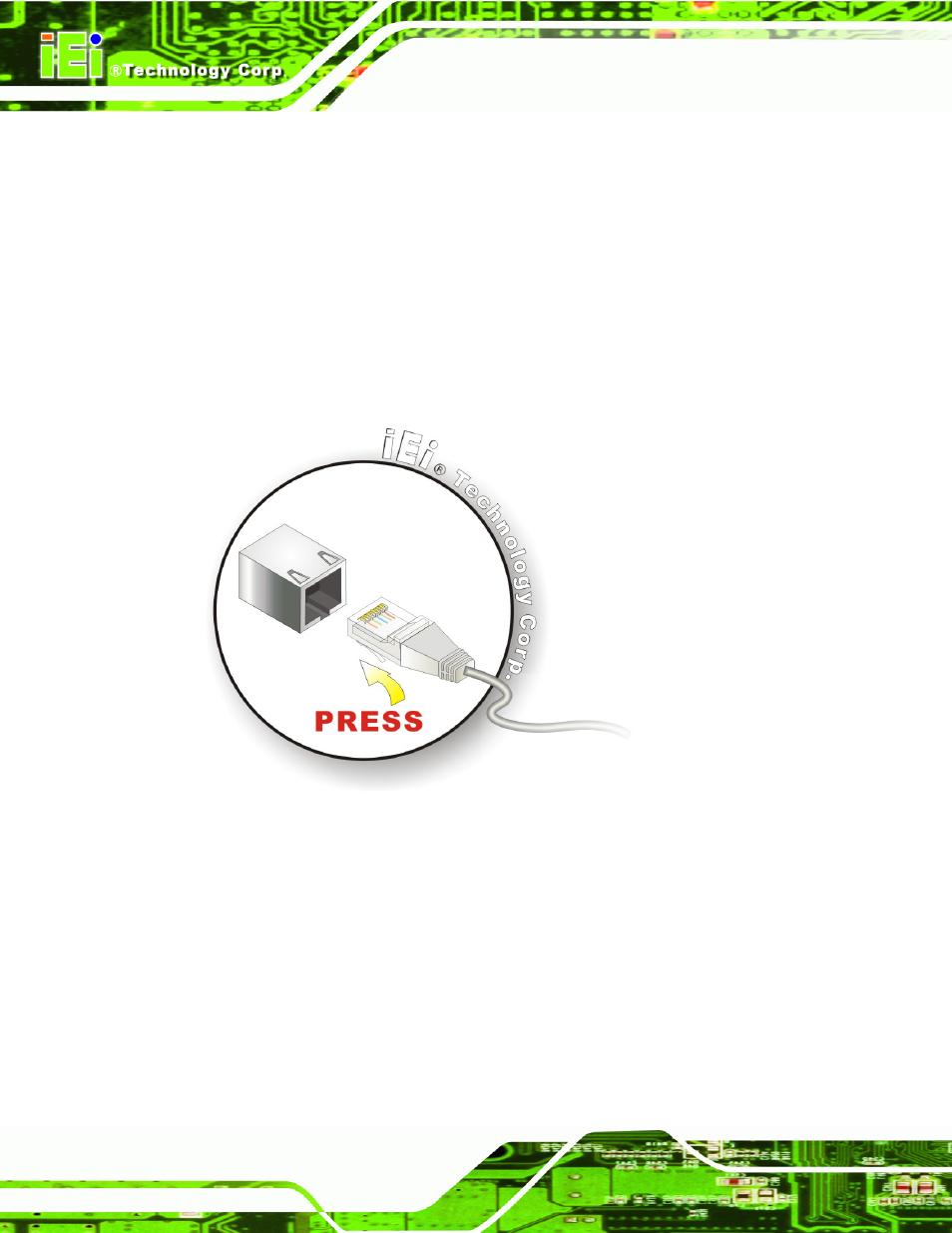

Figure 4-16: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

Step 0:

4.9.3 Serial Device Connection

The KINO-PV-D5252/D4252 has a single female DB-9 connector on the external

peripheral interface panel for a serial device. Follow the steps below to connect a serial

device to the KINO-PV-D5252/D4252.
