KINO-PV-D5252/D4252 Mini ITX SBC
Page 25
CN Location: See Figure 3-11
CN Pinouts: See Table 3-12
The keypad connector can be used to install a numeric keypad.

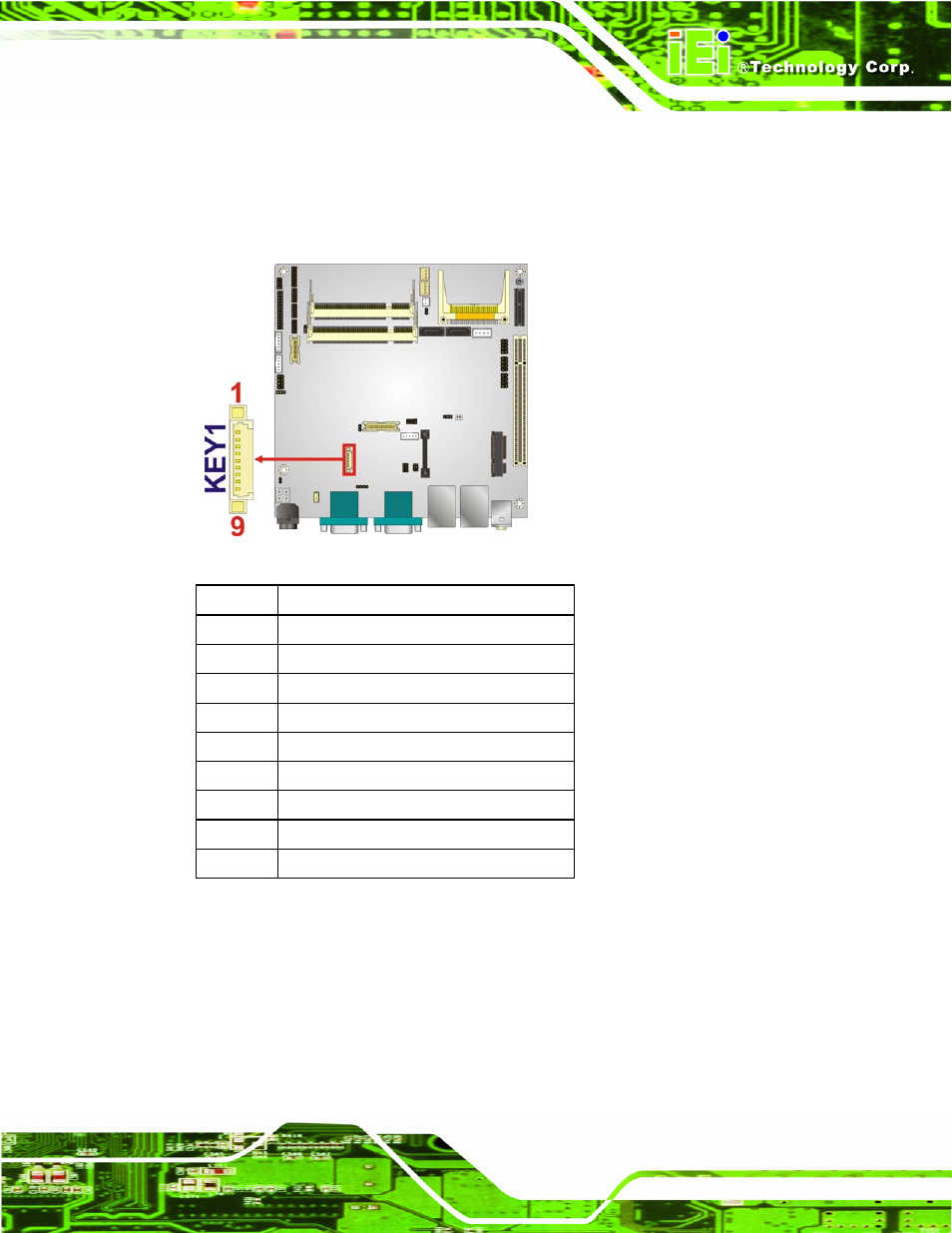

Figure 3-11: Keypad Connector Location
Pin Description
1 Red LED
2 NC
3 Green LED
4 Menu/Enter
5 Up
6 Down
7 Auto/Exit
8 Power
9 Ground
Table 3-12: Keypad Connector Pinouts
3.2.11 LVDS1 Connector (For Intel® Atom™ processor D525 dual LVDS
only)
CN Label: LVDS1
CN Type: 30-pin crimp
