KINO-PV-D5252/D4252 Mini ITX SBC

Page 24

3.2.9 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer (1x6)

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.

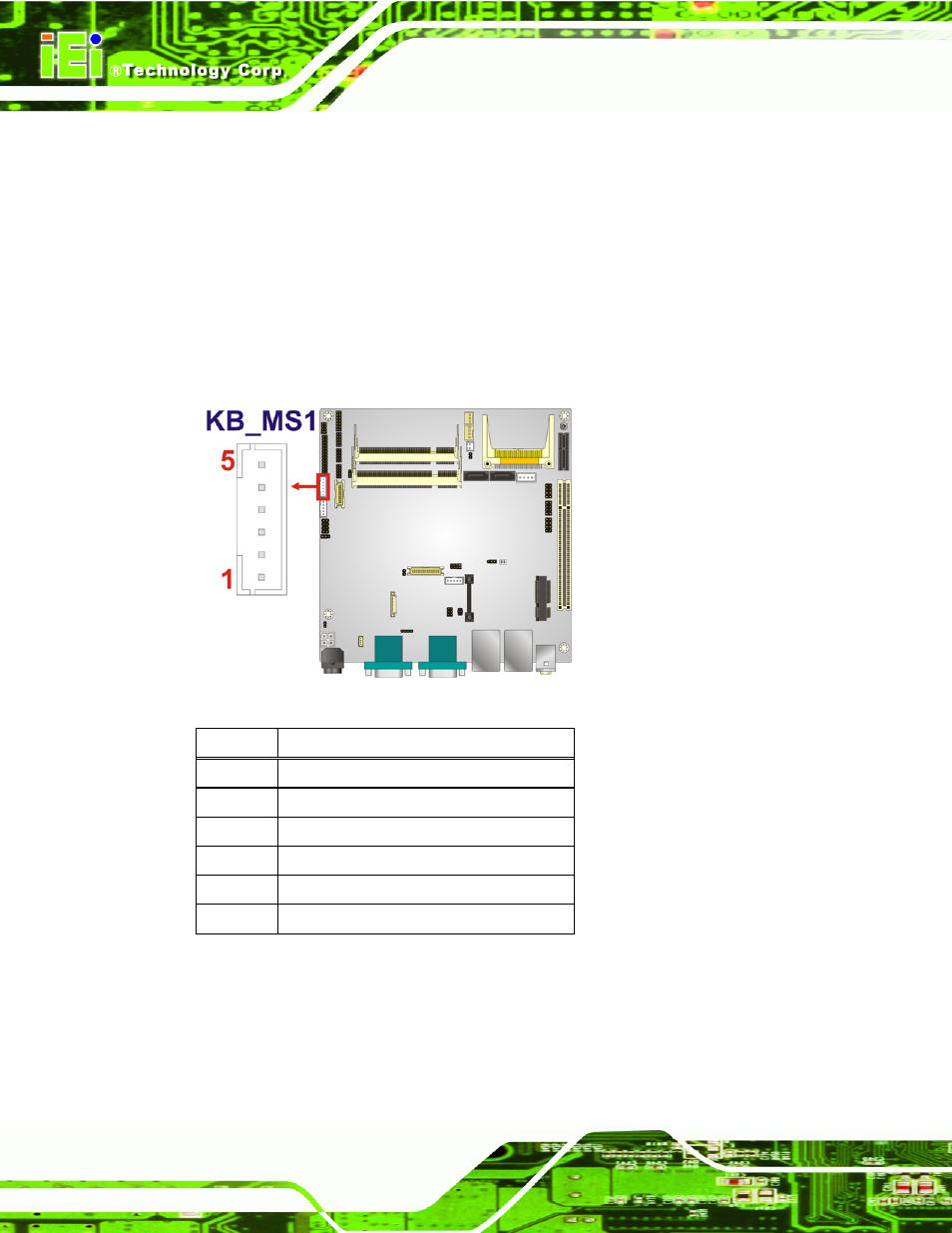

Figure 3-10: Keyboard/Mouse Connector Location

Pin Description

1 VCC

2 Mouse

Data

3 Mouse

Clock

4 Keyboard

Data

5 Keyboard

Clock

6 GND

Table 3-11: Keyboard/Mouse Connector Pinouts

3.2.10 Keypad Connector

CN Label:

KEY1

CN Type:

9-pin header
