KINO-PV-D5252/D4252 Mini ITX SBC

Page 20

Pin Description Pin Description

1 Ground

2 VCC5

3 Output

3 4 Output

2

5 Output

1 6 Output

0

7 Input

3

8 Input

2

9

Input 1

10

Input 0

Table 3-6: Digital I/O Connector Pinouts

3.2.5 Fan Connector (CPU)

CN Label:

CPU_FAN1

CN Type:

4-pin wafer

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-7

The fan connector attaches to a CPU cooling fan.

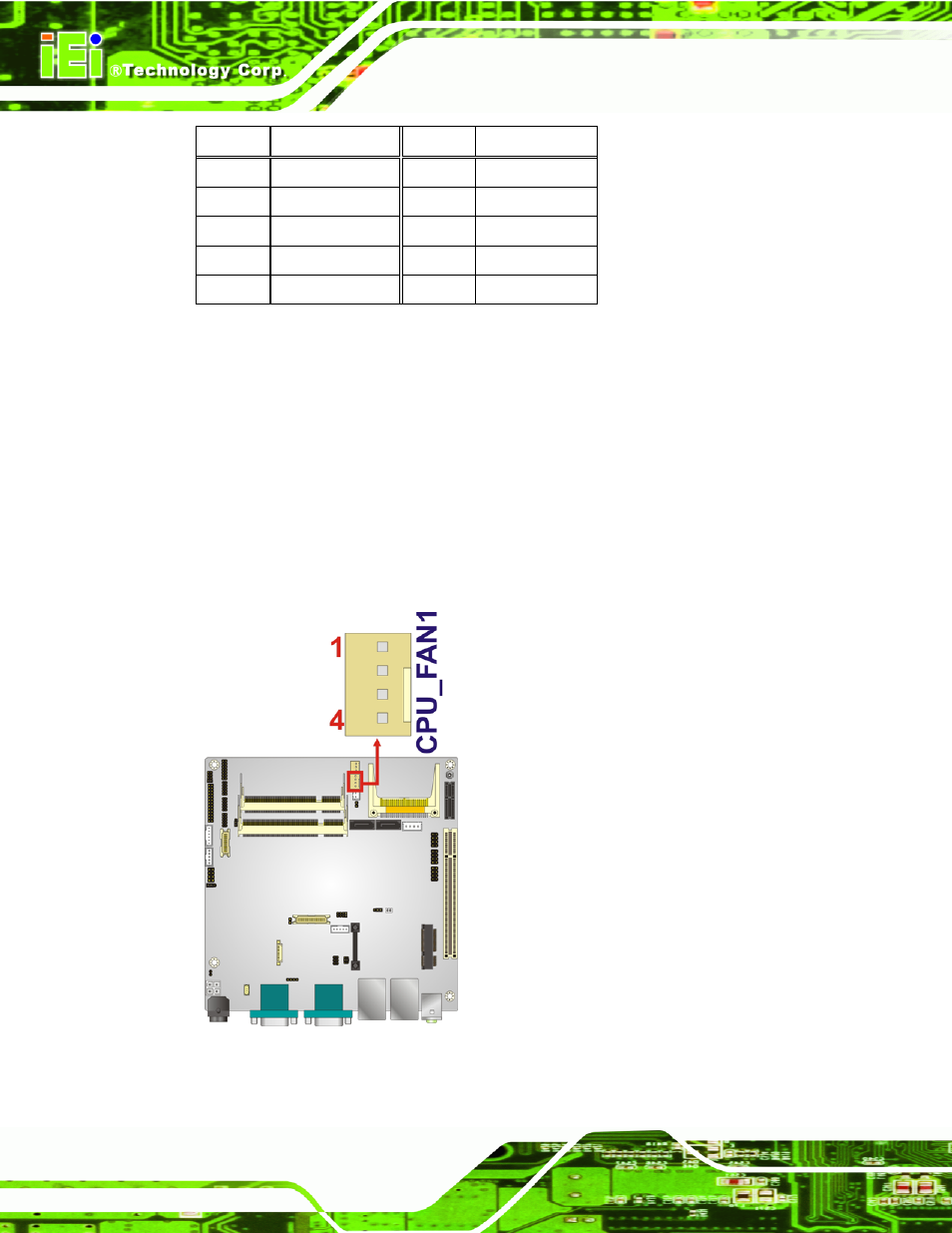

Figure 3-6: CPU Fan Connector Location
