KINO-PV-D5252/D4252 Mini ITX SBC

Page 33

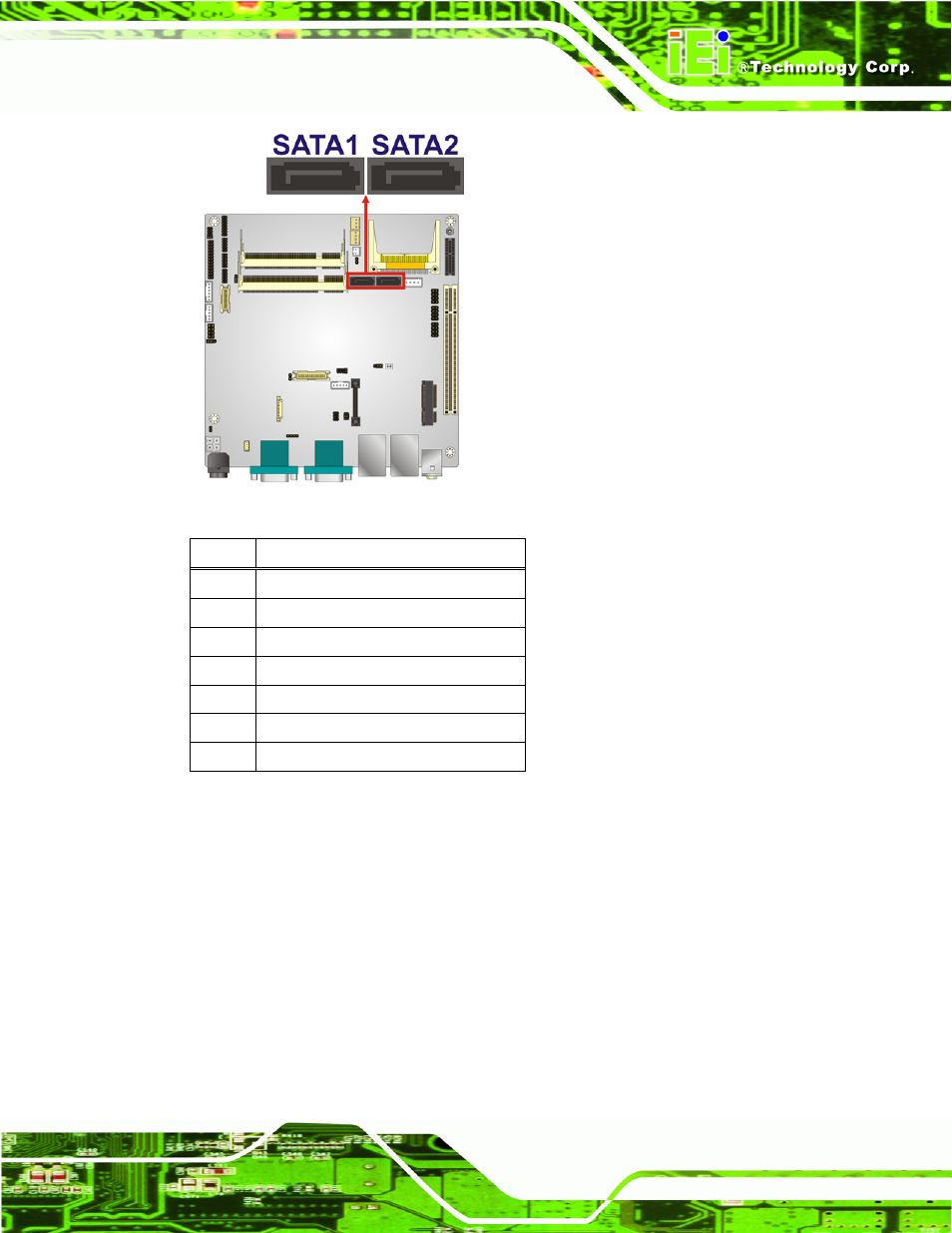

Figure 3-18: SATA Drive Connector Locations

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-19: SATA Drive Connector Pinouts

3.2.18 SATA Power Connector

CN Label:

SATA_PWR1

CN Type:

2-pin wafer

CN Location:

See Figure 3-19

CN Pinouts:

See Table 3-20

The SATA Power Connector provides power output to the SATA connectors.
