3.2.14 LVDS2 Backlight Inverter Connector

CN Label:

INV2

CN Type:

5-pin wafer

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-14

The backlight inverter connector provides power to an LCD panel.

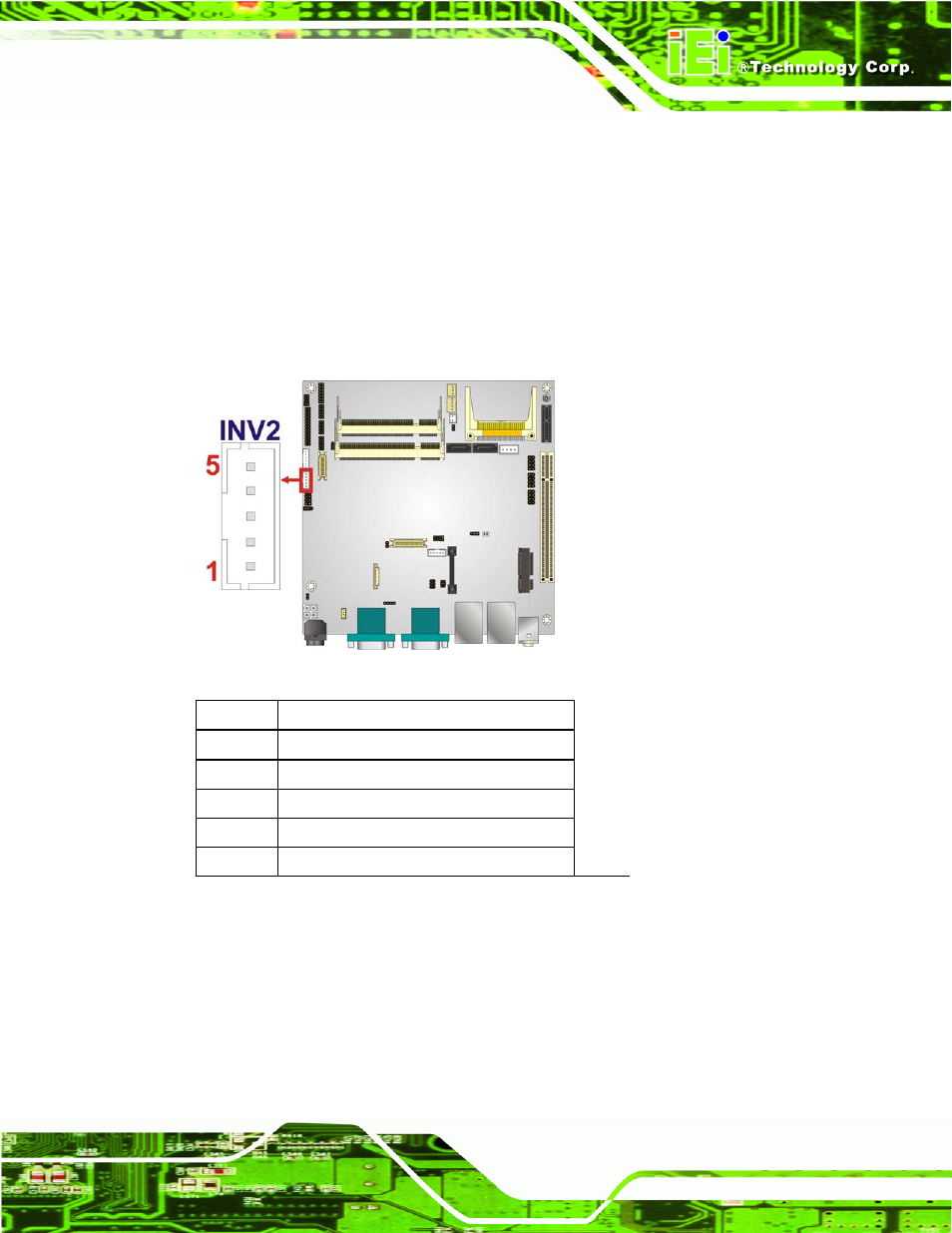

Figure 3-15: LVDS2 Backlight Inverter Connector Location

Pin Description

1 LCD_BKLTCTL

2 GROUND

3 +12V

4 GROUND

5 BACKLIGHT

ENABLE

Table 3-16: LVDS2 Backlight Inverter Connector Pinouts

3.2.15 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin box header

CN Location:

See Figure 3-16
