KINO-PV-D5252/D4252 Mini ITX SBC
Page 30
CN Pinouts: See Table 3-17
The parallel port connector connects to a parallel port connector interface or some other
parallel port device such as a printer.

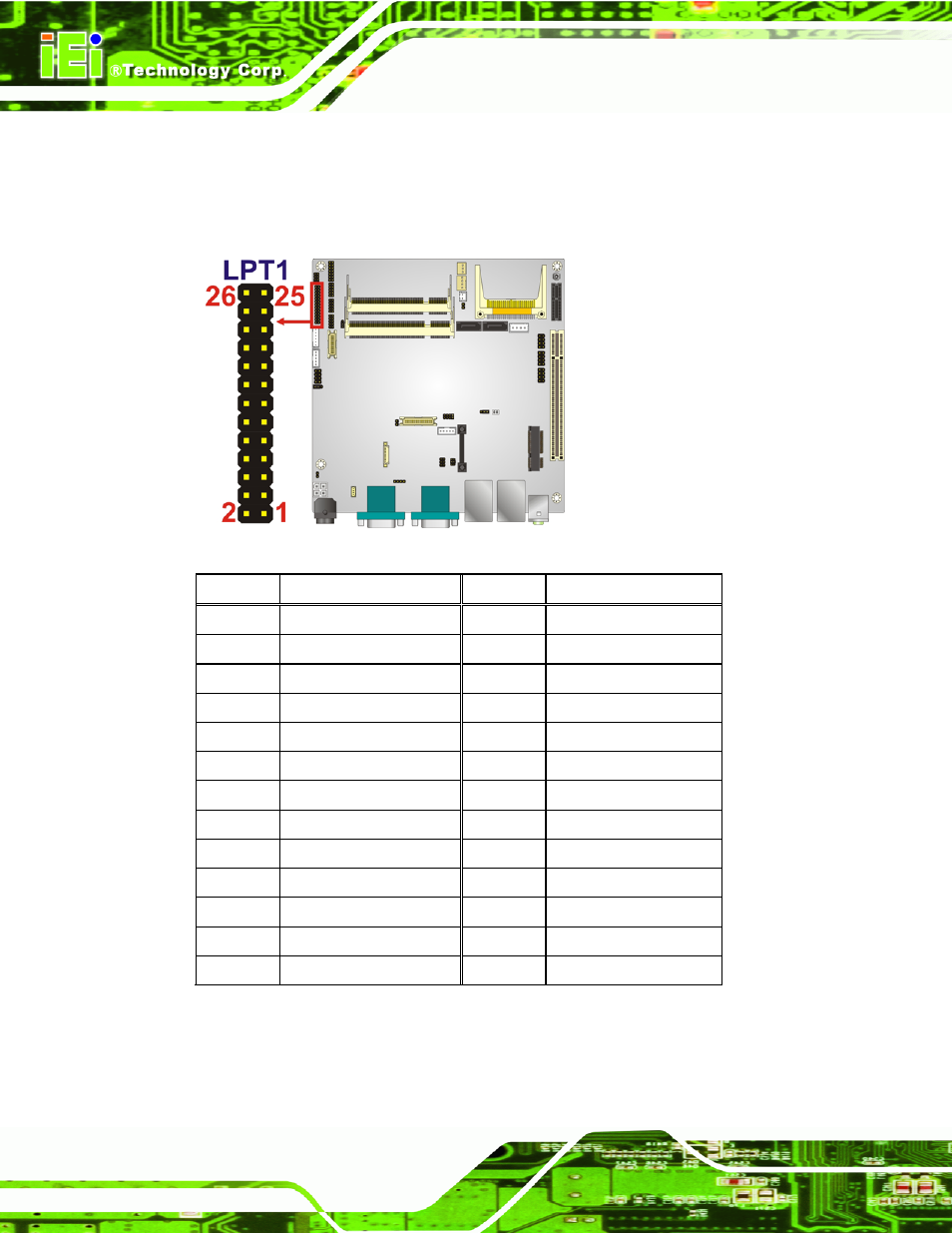

Figure 3-16: Parallel Port Connector Location
Pin Description Pin Description
1 STROBE# 2 AUTO FORM FEED #
3 DATA0 4 ERROR#
5 DATA1 6 INITIALIZE#
7 DATA2 8 PRINTER SELECT LN#
9 DATA3 10 GND
11 DATA4 12 GND
13 DATA5 14 GND
15 DATA6 16 GND
17 DATA7 18 GND
19 ACKNOWLEDGE# 20 GND
21 BUSY 22 GND
23 PAPER EMPTY 24 GND
25 PRINTER SELECT 26 NC
Table 3-17: Parallel Port Connector Pinouts
