KINO-PV-D5252/D4252 Mini ITX SBC
Page 26
CN Location: See Figure 3-12
CN Pinouts: See Table 3-13
The LVDS connector is for an LCD panel connected to the board.

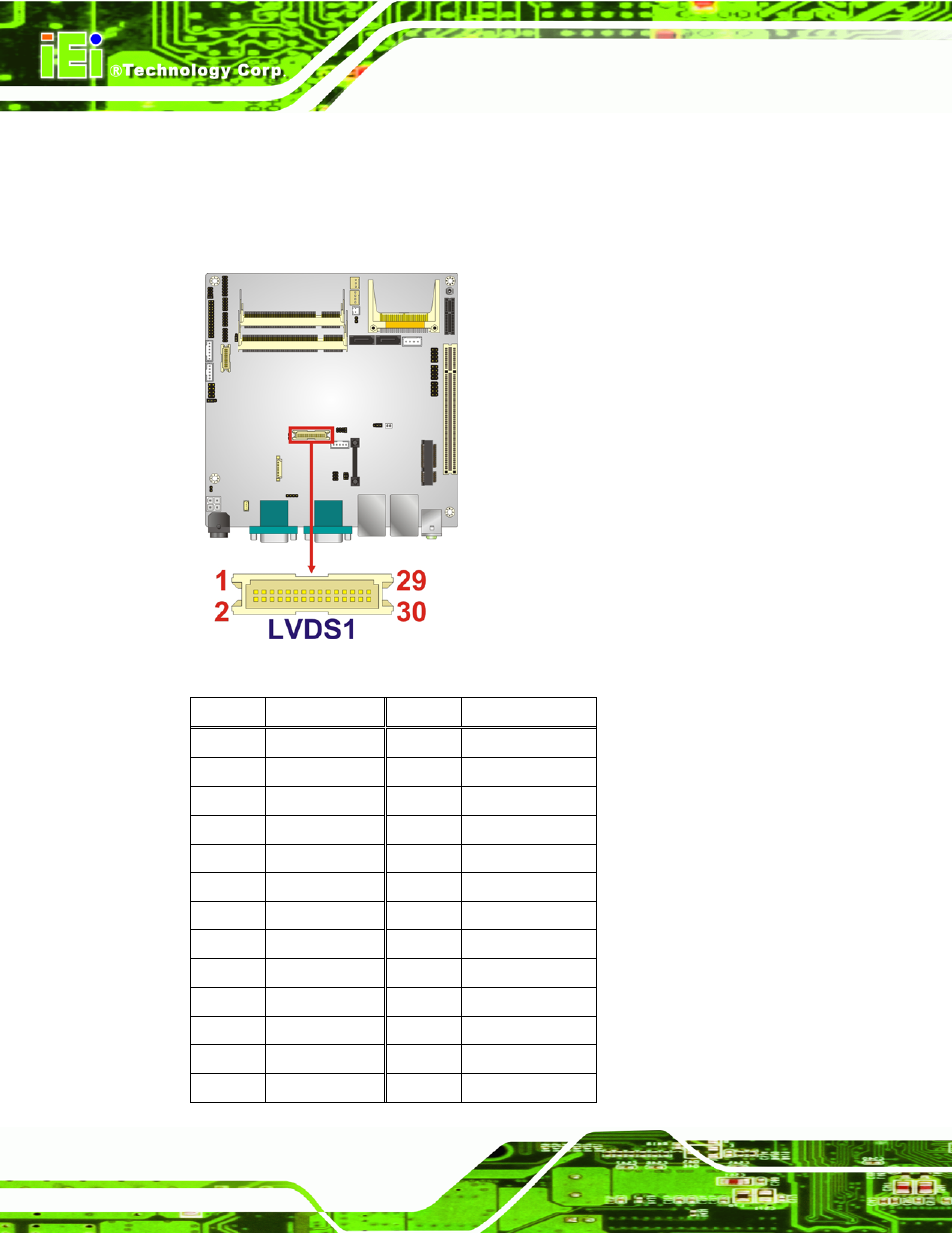

Figure 3-12: LVDS1 Connector Location
Pin Description Pin Description
1 GND1 2 GND2
3 A_Y0 4 A_Y0#
5 A_Y1 6 A_Y1#
7 A_Y2 8 A_Y2#
9 A_CK 10 A_CK#
11 A_Y3 12 A_Y3#
13 GND3 14 GND4
15 B_Y0 16 B_Y0#
17 B_Y1 18 B_Y1#
19 B_Y2 20 B_Y2#
21 B_CK 22 B_CK#
23 B_Y3 24 B_Y3#
25 GND5 26 GND6
