KINO-PV-D5252/D4252 Mini ITX SBC
Page 16

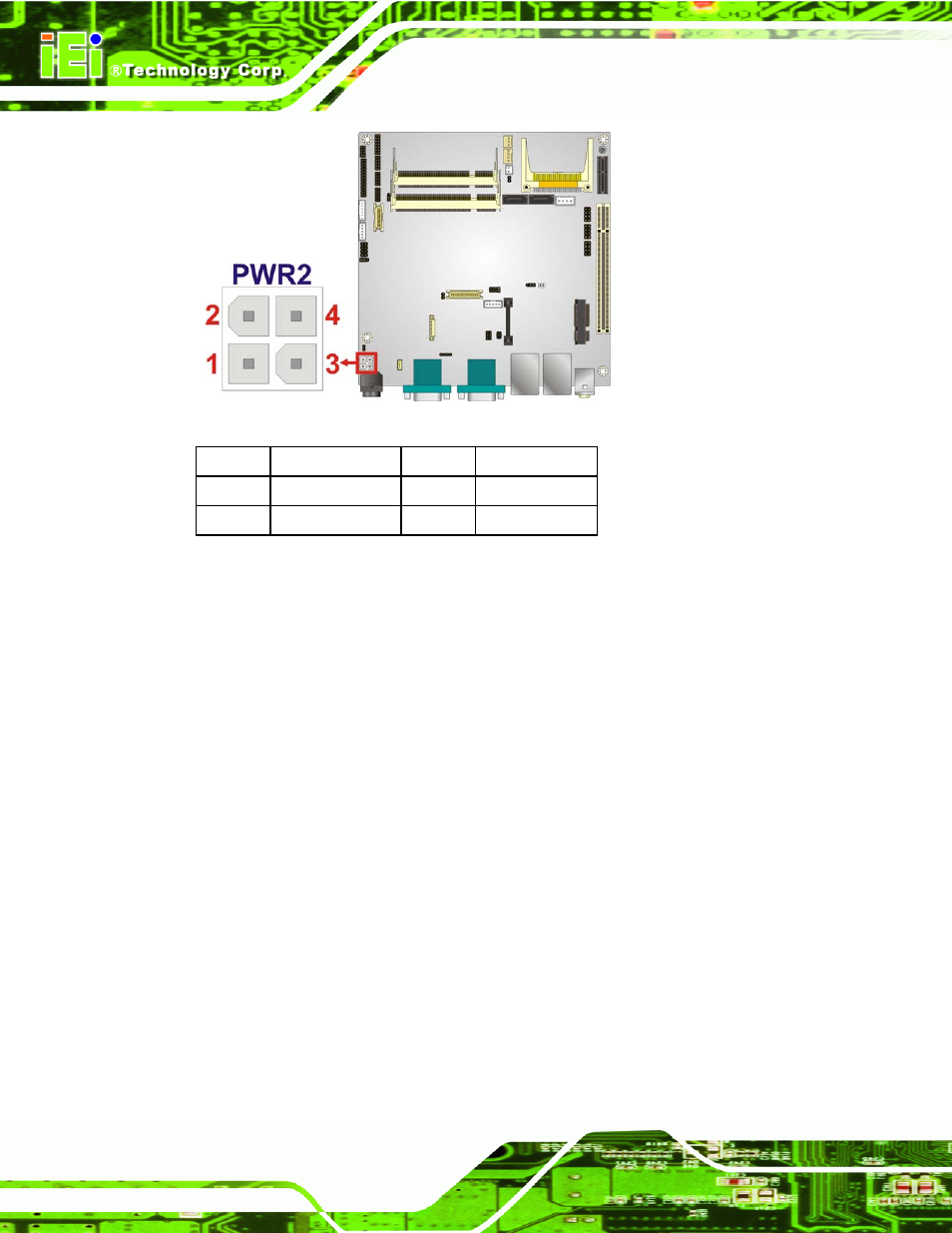

Figure 3-2: 12 V Power Connector Location
Pin Description Pin Description
1 GND 2 GND
3 +12V 4 +12V
Table 3-3: 12 V Power Connector Pinouts
3.2.2 Battery Connector
CN Label: BAT1
CN Type: 2-pin wafer
CN Location: See Figure 3-3
CN Pinouts: See Table 3-4
This is connected to the system battery. The battery provides power to the system clock to
retain the time when power is turned off.
