KINO-PV-D5252/D4252 Mini ITX SBC

Page 63

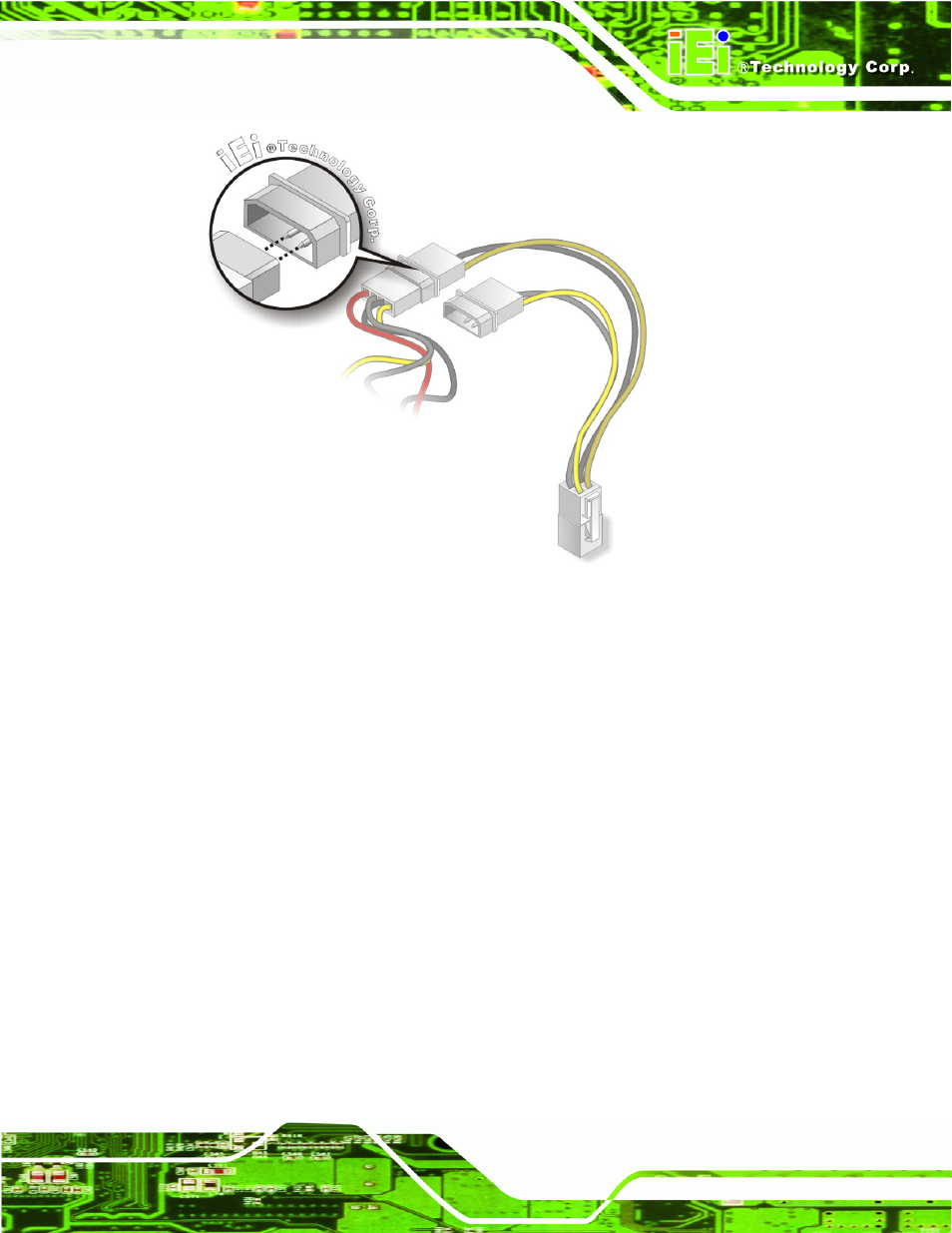

Figure 4-13: Connect Power Cable to Power Supply

4.8.2 Single RS-232 Cable with Slot Bracket

The single RS-232 cable consists of one serial port connectors attached to a serial

communications cable that is then attached to a D-sub 9 male connector that is mounted

onto a bracket. To install the single RS-232 cable, please follow the steps below.

Step 1:

Locate the connector. The location of the RS-232 connector is shown in

Chapter 3.

Step 2:

Insert the cable connector. Insert the connector into the serial port box header.

See Figure 4-14. A key on the front of the cable connectors ensures the

connector can only be installed in one direction.
