KINO-PV-D5252/D4252 Mini ITX SBC
Page 64

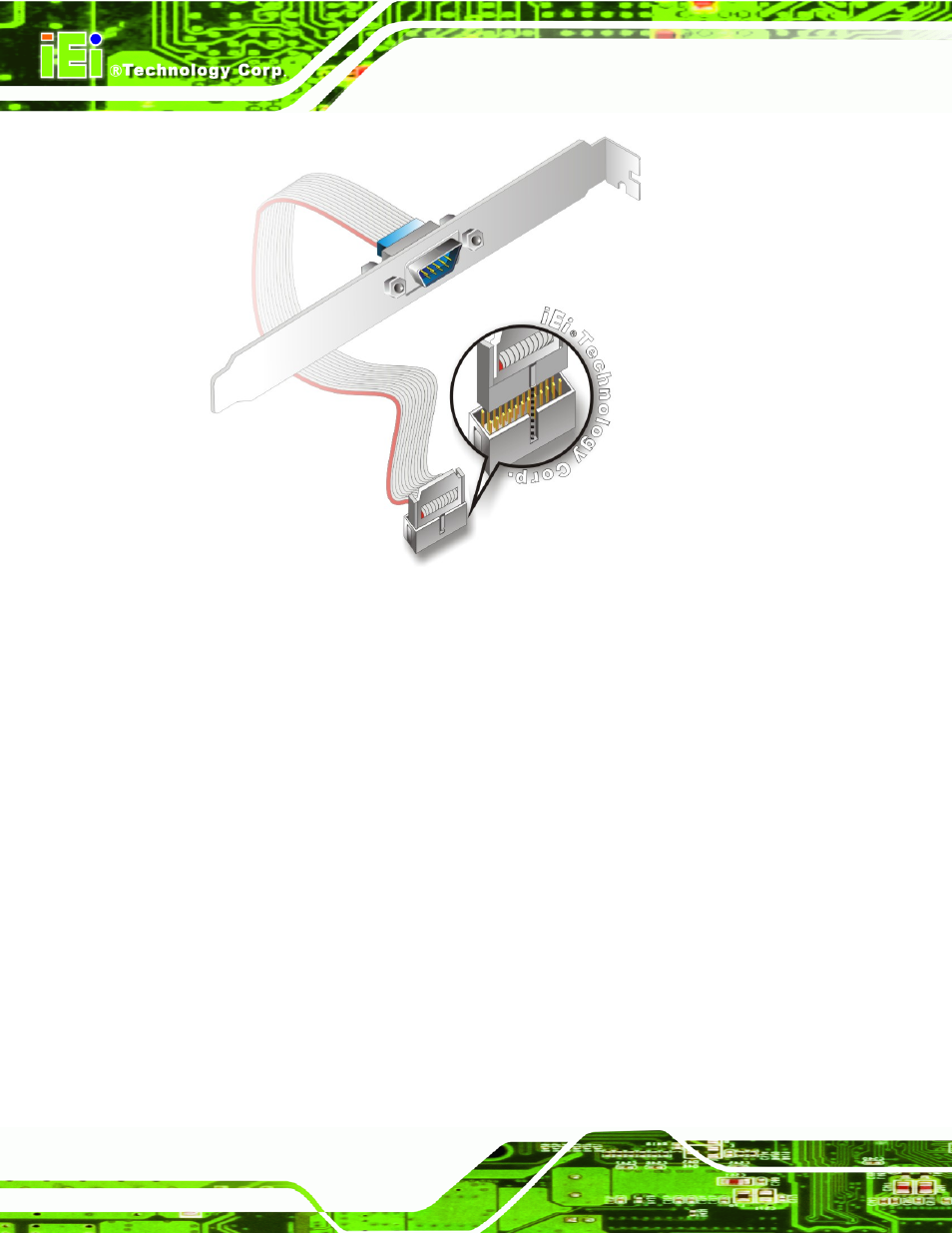

Figure 4-14: Single RS-232 Cable Installation
Step 3: Secure the bracket. The single RS-232 connector has one D-sub 9 male
connector secured to a bracket. To secure the bracket to the chassis please
refer to the reference material that came with the chassis Step 0:
4.9 External Peripheral Interface Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
 RJ-45 Ethernet cable connector
 Serial devices
 USB devices
 VGA monitor
 DVI devices
 Audio devices
