KINO-PV-D5252/D4252 Mini ITX SBC
Page 56

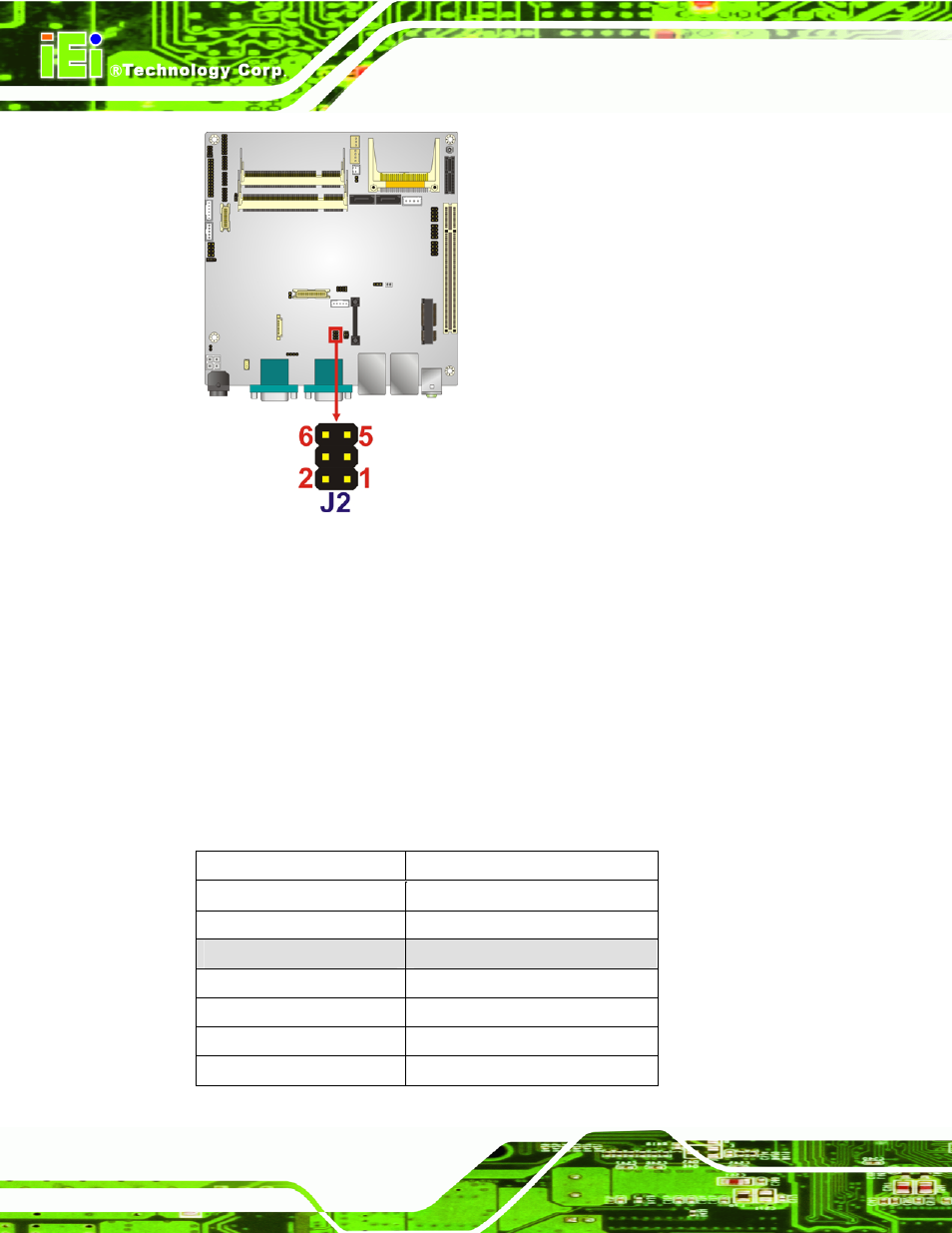

Figure 4-7: LVDS1 Panel Resolution Jumper Location
4.6.5 LVDS2 Panel Resolution Select Jumper
Jumper Label: J_LCD_TYPE1
Jumper Type: 6-pin header
Jumper Settings: See Table 4-6
Jumper Location: See Figure 4-8
The LVDS2 Panel Resolution jumper configures the resolution of the LVDS output. The
LVDS2 Panel Resolution jumper settings are shown below.
Setting Description
Open 640 x 480 (18 bit)
Short 1-2 800 x 400 (18 bit)
Short 3-4 (Default) 800 x 600 (18 bit)
Short 1-2 and 3-4 1024 x 768 (18 bit)
Short 5-6 1280 x 1024 (18 bit)
Short 1-2 and 5-6 1366 x 768 (18 bit)
Short 3-4 and 5-6 1280 x 800 (18 bit)
