KINO-PV-D5252/D4252 Mini ITX SBC
Page 27
Pin Description Pin Description
27 VCC_LCD 28 VCC_LCD
29 VCC_LCD 30 VCC_LCD
Table 3-13: LVDS1 Connector Pinouts
3.2.12 LVDS1 Backlight Inverter Connector
CN Label: INV1
CN Type: 5-pin wafer
CN Location: See Figure 3-13
CN Pinouts: See Table 3-14
The backlight inverter connector provides power to an LCD panel.

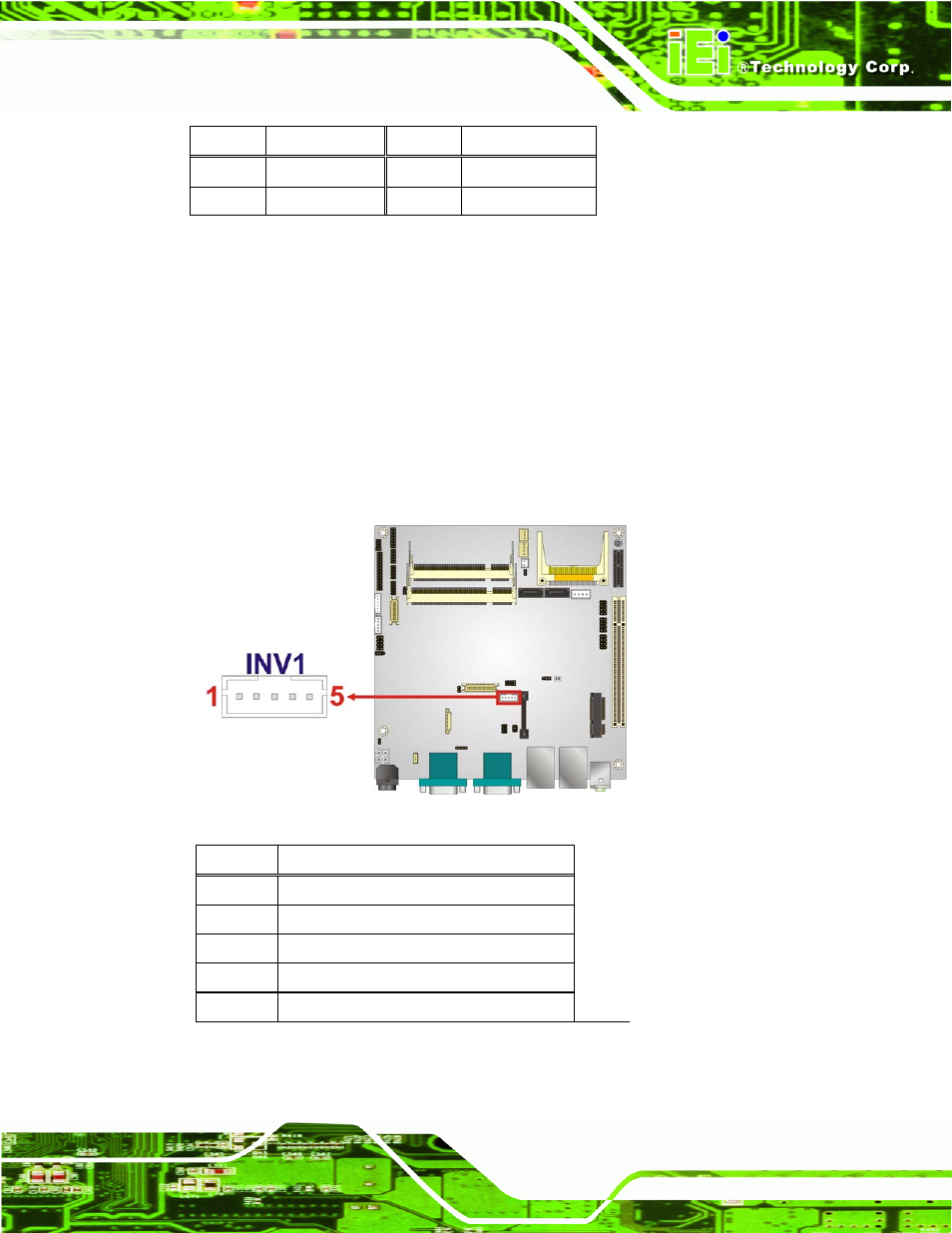

Figure 3-13: LVDS1 Backlight Inverter Connector Location
Pin Description
1 LCD_BKLTCTL
2 GROUND
3 +12V
4 GROUND
5 BACKLIGHT ENABLE
Table 3-14: LVDS1 Backlight Inverter Connector Pinouts
