3.2.16 PCIe Mini Card Slot
CN Label: CN2
CN Type: PCIe Mini card slot
CN Location: See
791H
Figure 3-17
CN Pinouts: See Table 3-18
The PCIe Mini card slot is for installing PCIe Mini expansion cards.

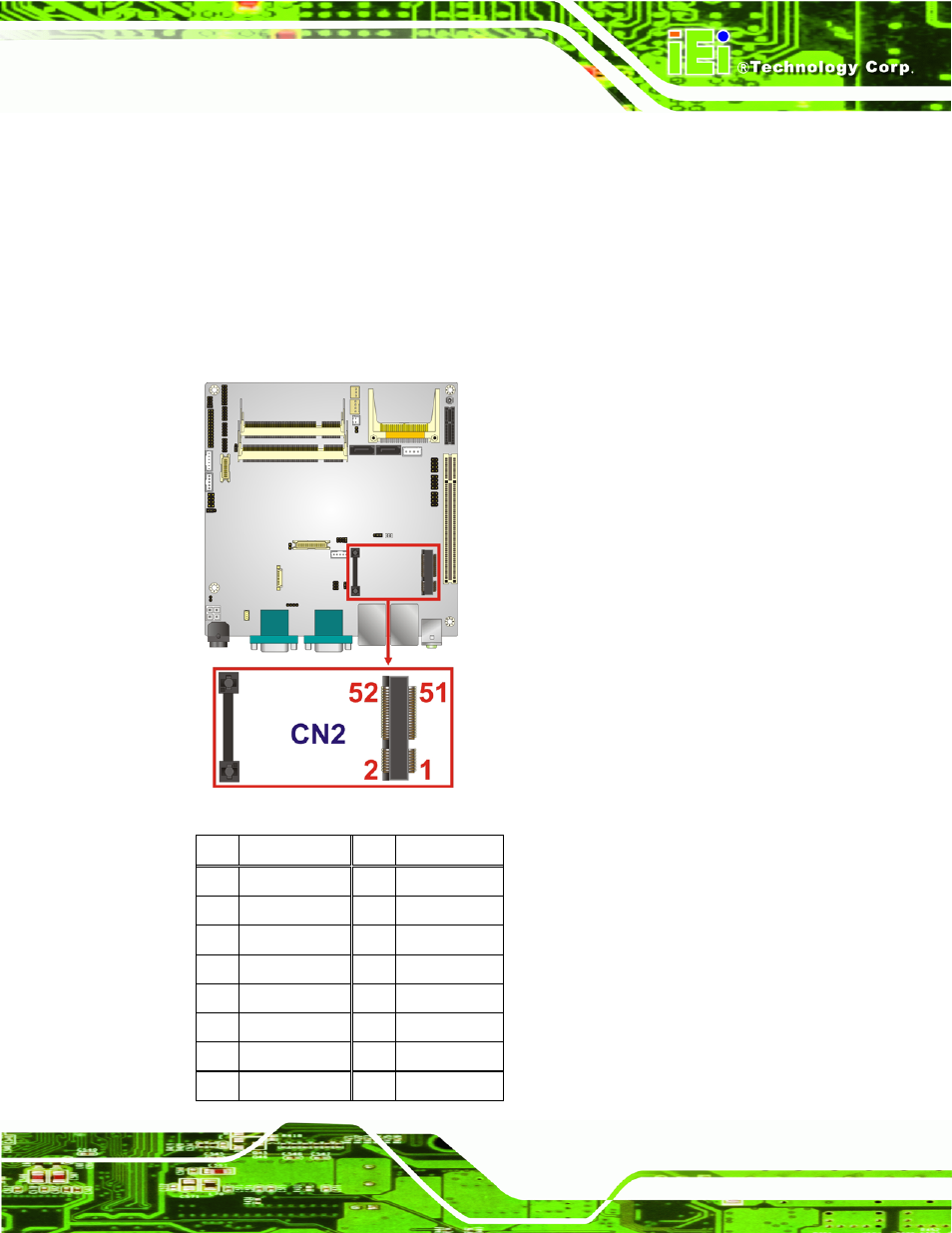

Figure 3-17: PCIe Mini Card Slot Location
Pin Description Pin Description
1 PCIE_WAKE# 2 VCC3
3 N/C 4 GND
5 N/C 6 1.5 V
7 CLKREQ# 8 LFRAME#
9 GND 10 LAD3
11 CLK- 12 LAD2
13 CLK+ 14 LAD1
15 GND 16 LAD0
