Step 1: Locate the RJ-45 connectors. The locations of the RJ-45 connectors are
shown in Chapter 3.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the PCIE-H610. See Figure 4-15.

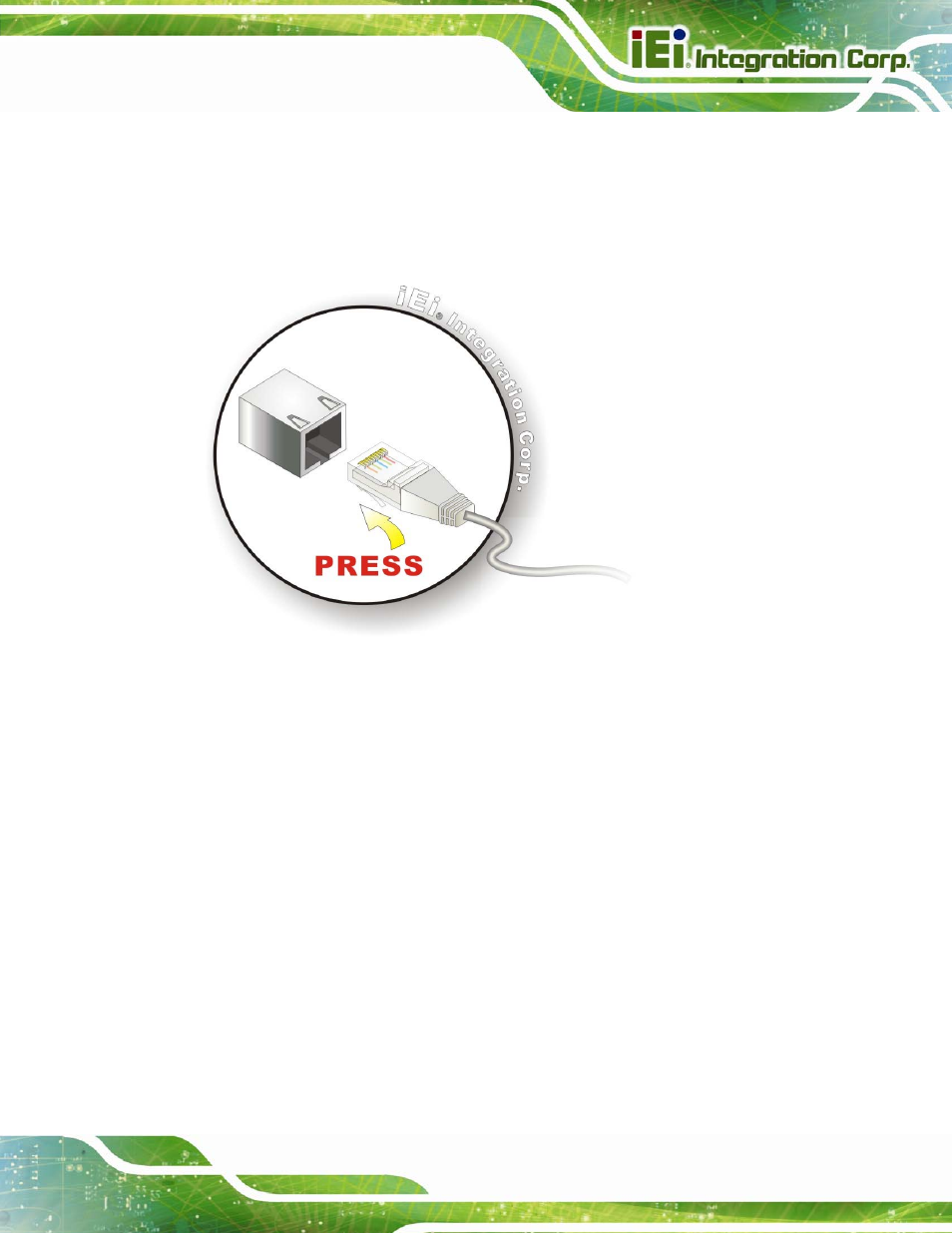

Figure 4-15: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the on-board RJ-45 connector.
4.6.2 USB Device Connection (Single Connector)
There is one external USB 2.0 connector. The connector is perpendicular to the
PCIE-H610. To connect a USB 2.0 or USB 1.1 device, please follow the instructions
below.
Step 1: Located the USB connector. The location of the USB connector is shown in
Chapter 3.
Step 2: Align the connectors. Align the USB device connector with the connector on
the PCIE-H610. See Figure 4-16.
