PCIE-H610 PICMG 1.3 CPU Card

Page 33

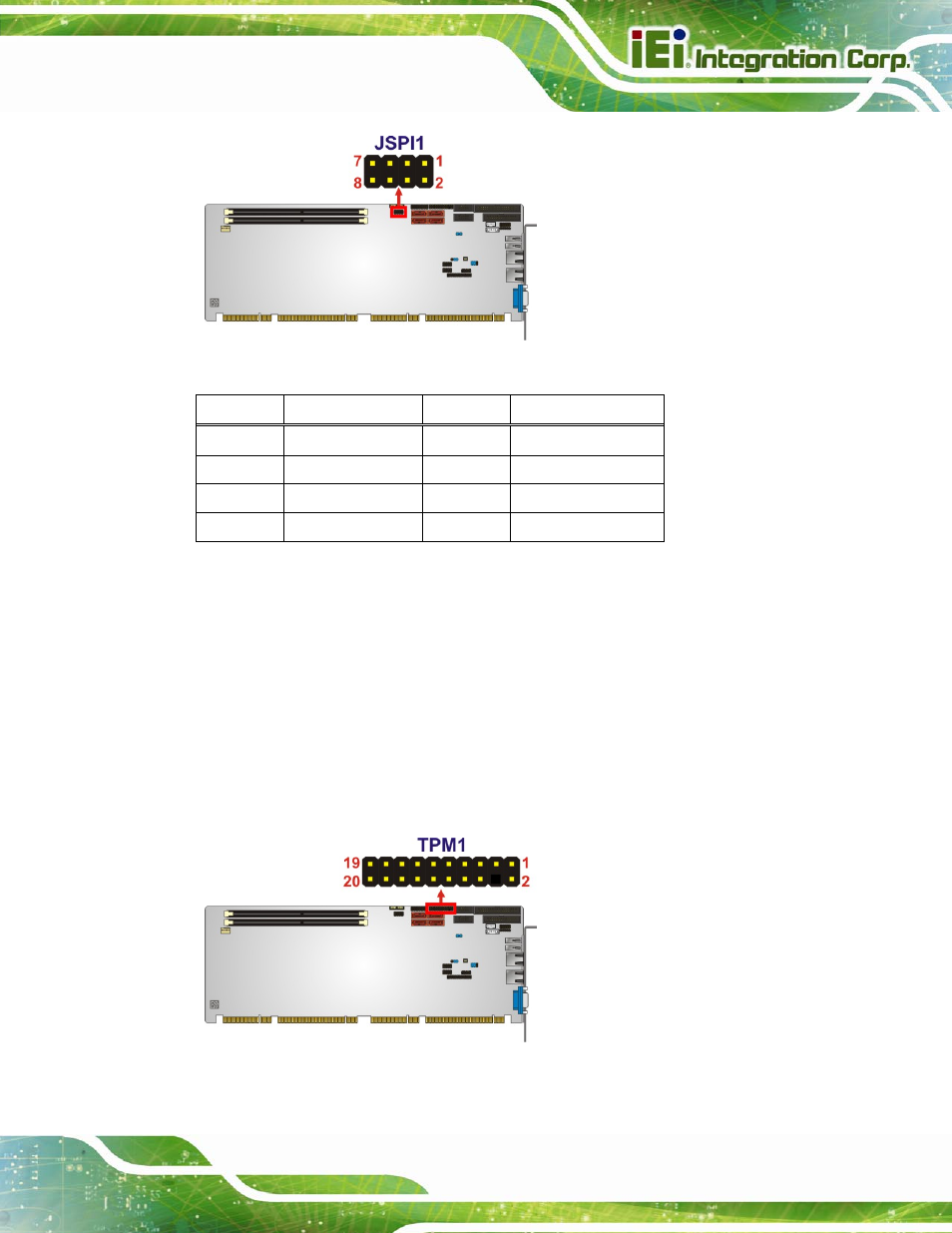

Figure 3-19: SPI Connector Location

Pin

Description

Pin

Description

1

SPI_VCC

2

GND

3

SPI_CS0

4

SPI_CLK

5

SPI_MISO

6

SPI_MOSI

7

NC

8

NC

Table 3-20: SPI Connector Pinouts

3.2.19 TPM Connector

CN Label:

TPM1

CN Type:

20-pin header

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-21

The TPM connector connects to a TPM module.

Figure 3-20: TPM Connector Location
