PCIE-H610 PICMG 1.3 CPU Card
Page 21

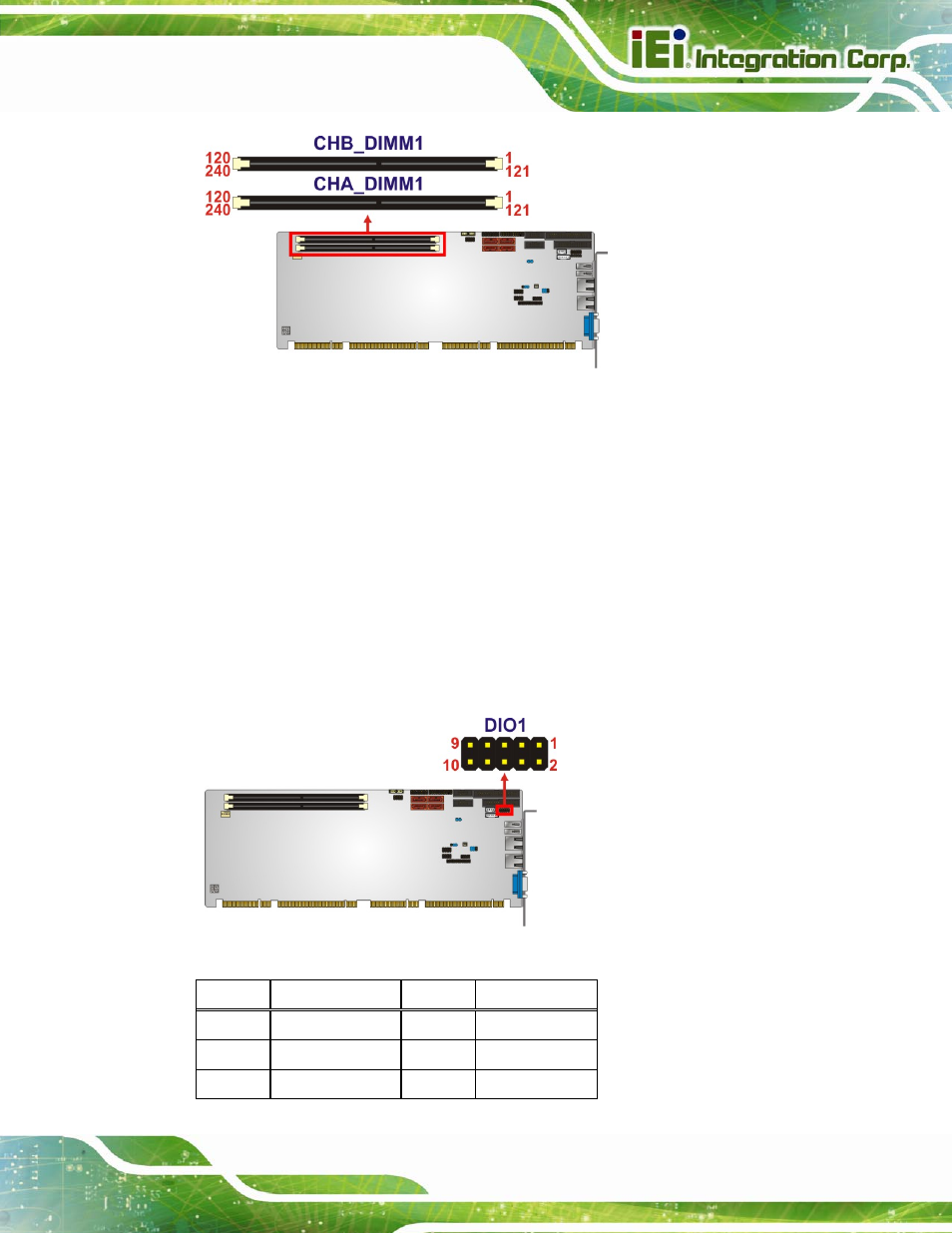

Figure 3-5: DDR3 DIMM Slot Locations
3.2.5 Digital I/O Connector
CN Label: DIO1
CN Type: 10-pin header
CN Location: See Figure 3-6
CN Pinouts: See Table 3-6
The digital I/O connector provides programmable input and output for external devices.
The digital I/O provides 4-bit output and 4-bit input.
Figure 3-6: Digital I/O Connector Location
Pin Description Pin Description
1 GND 2 VCC
3 Output 3 4 Output 2
5 Output 1 6 Output 0
