3.3 External Peripheral Interface Connector Panel
The figure below shows the external peripheral interface connector (EPIC) panel. The
EPIC panel consists of the following:

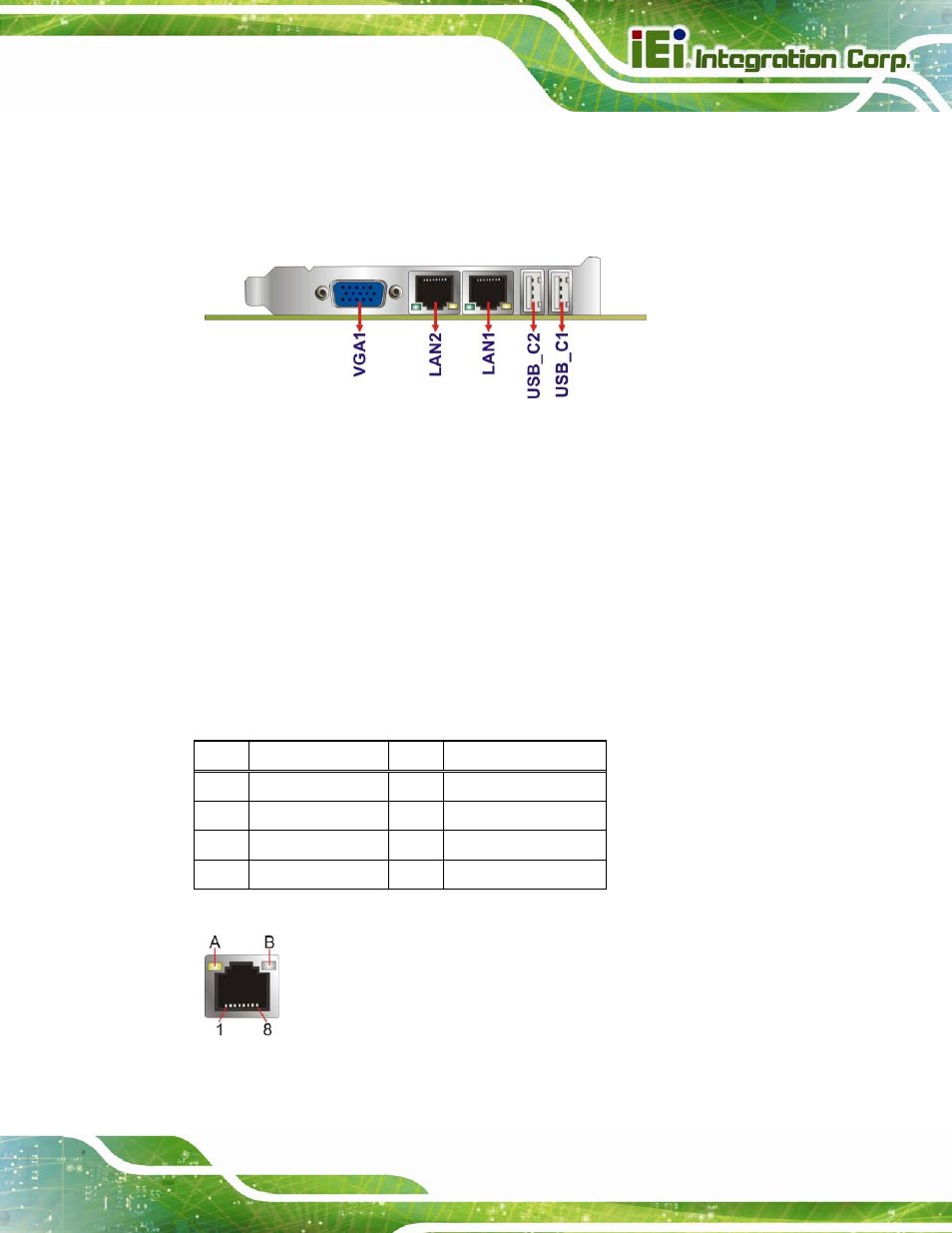

Figure 3-22: External Peripheral Interface Connector
3.3.1 Ethernet Connectors
CN Label: LAN1 and LAN2
CN Type: RJ-45
CN Location: See Figure 3-22
CN Pinouts: See Figure 3-23 and Table 3-23
The PCIE-H610 is equipped with two built-in RJ-45 Ethernet controllers. Each controller
can connect to the LAN through one RJ-45 LAN connector.
Pin Description Pin Description
1 MDIA3- 5 MDIA2+
2 MDIA3+ 6 MDIA1+
3 MDIA1- 7 MDIA0-
4 MDIA2- 8 MDIA0+
Table 3-23: LAN Pinouts
Figure 3-23: Ethernet Connector
