4.5.3 SATA Drive Connection
The PCIE-H610 is shipped with four SATA drive cables. To connect the SATA drives to
the connectors, please follow the steps below.
Step 1: Locate the connectors. The locations of the SATA drive connectors are shown
in Chapter 3.
Step 2: Insert the cable connector. Insert the cable connector into the on-board SATA
drive connector until it clips into place. See Figure 4-12.

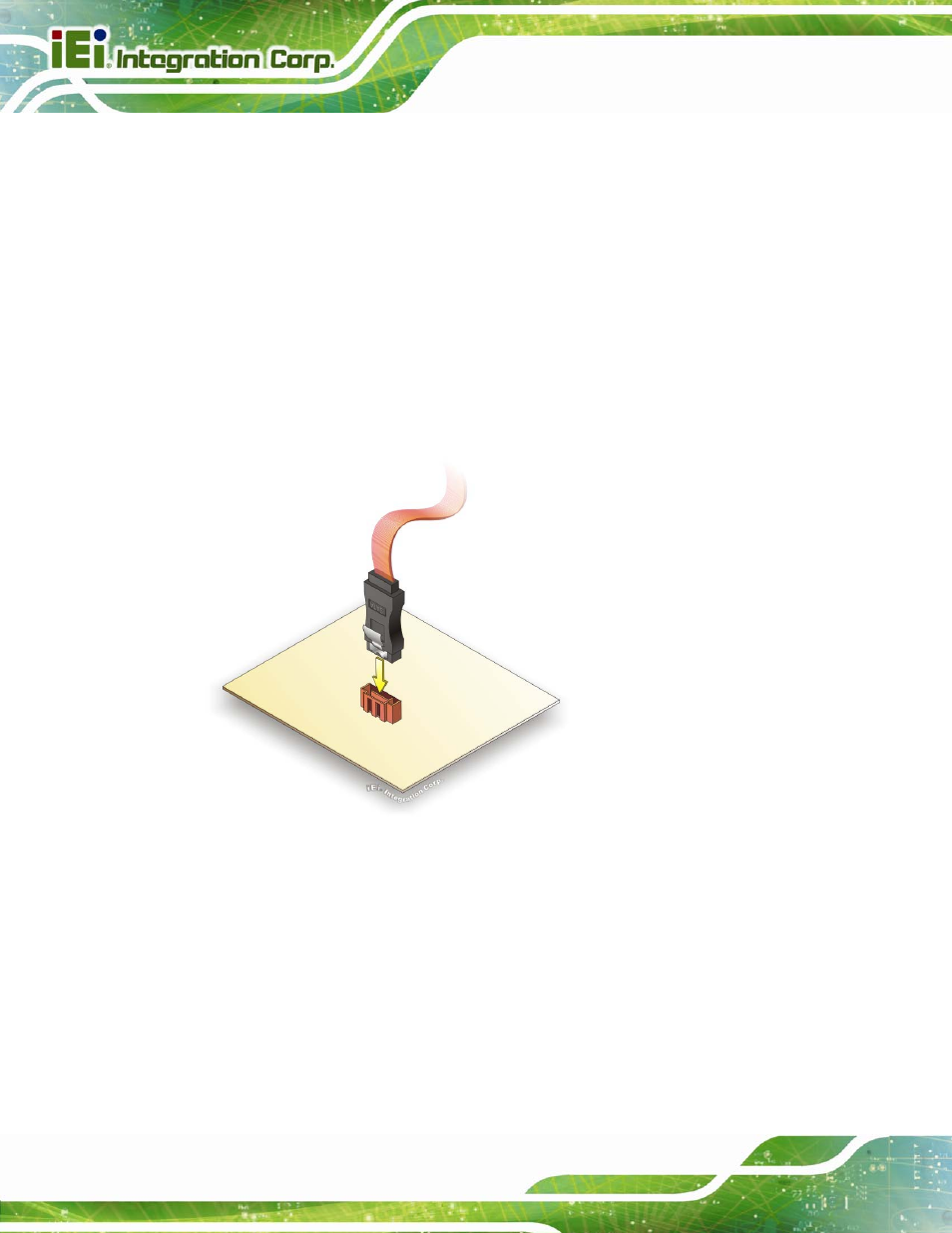

Figure 4-12: SATA Drive Cable Connection
Step 3: Connect the cable to the SATA disk. Connect the connector on the other end
of the cable to the connector at the back of the SATA drive. See Figure 4-13.
Step 4: Connect the SATA power cable (optional). Connect the SATA power
connector to the back of the SATA drive. See Figure 4-13.
