PCIE-H610 PICMG 1.3 CPU Card
Page 25
Pin Description Pin Description
29 GND 30 RDATA-
31 GND 32 SIDE1-
33 GND 34 DSKCHG-
Table 3-9: Floppy Disk Pinouts
3.2.9 Front Panel Connector
CN Label: F_PANEL1
CN Type: 14-pin header
CN Location: See Figure 3-10
CN Pinouts: See Table 3-10
The front panel connector connects to the indicator LEDs and buttons on the computer's
front panel.

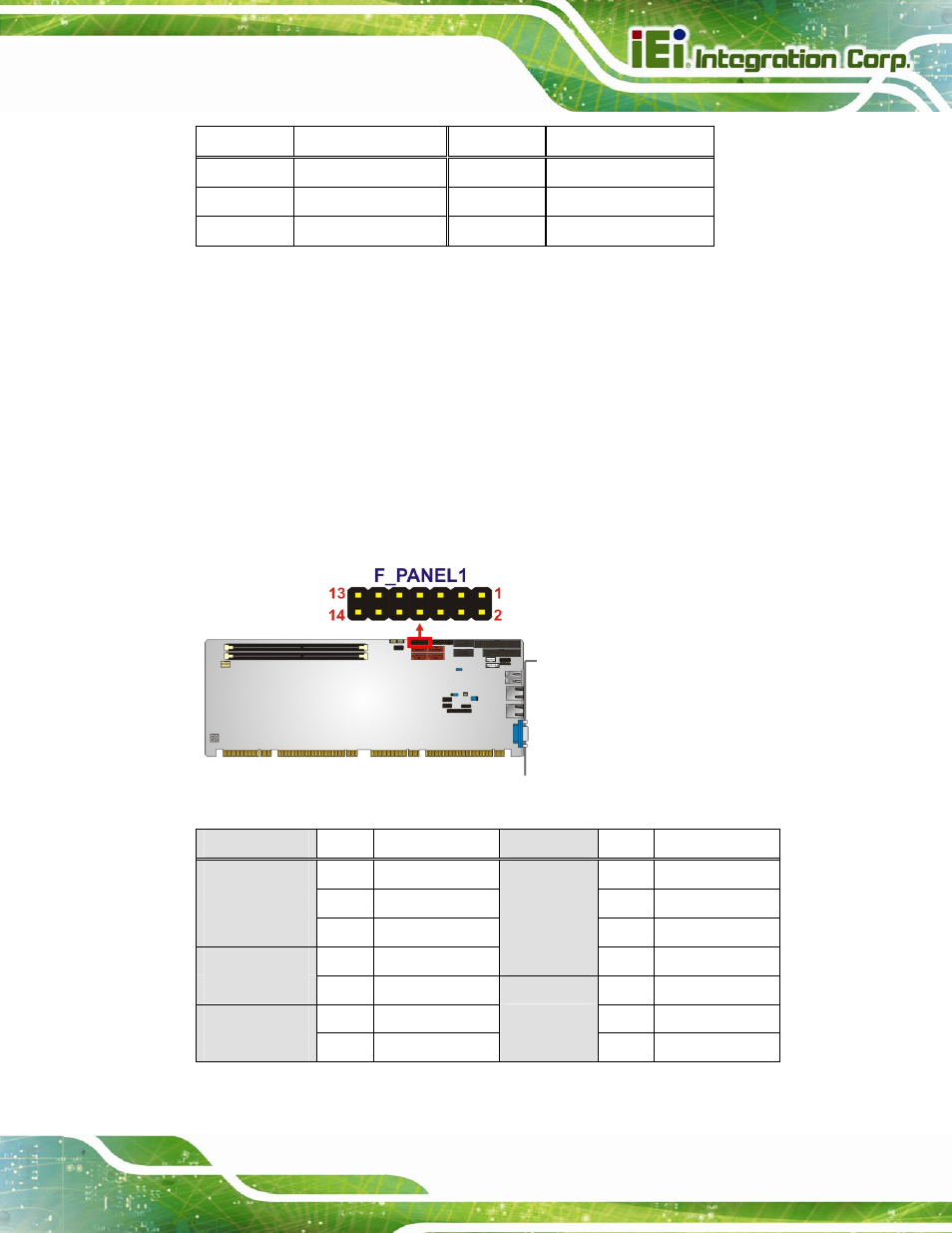

Figure 3-10: Front Panel Connector Location
Function Pin Description Function Pin Description
Power LED 1 +5V Speaker 2 +5V
3 N/C 4 N/C
5 GROUND 6 N/C
Power Button 7 PWR_BTN+ 8 Speaker
9 PWR_BTN- Reset 10 N/C
HDD LED 11 +5V 12 RESET-
13 HDD_LED- 14 GROUND
Table 3-10: Front Panel Connector Pinouts
