PCIE-H610 PICMG 1.3 CPU Card

Page 136

Step 7:

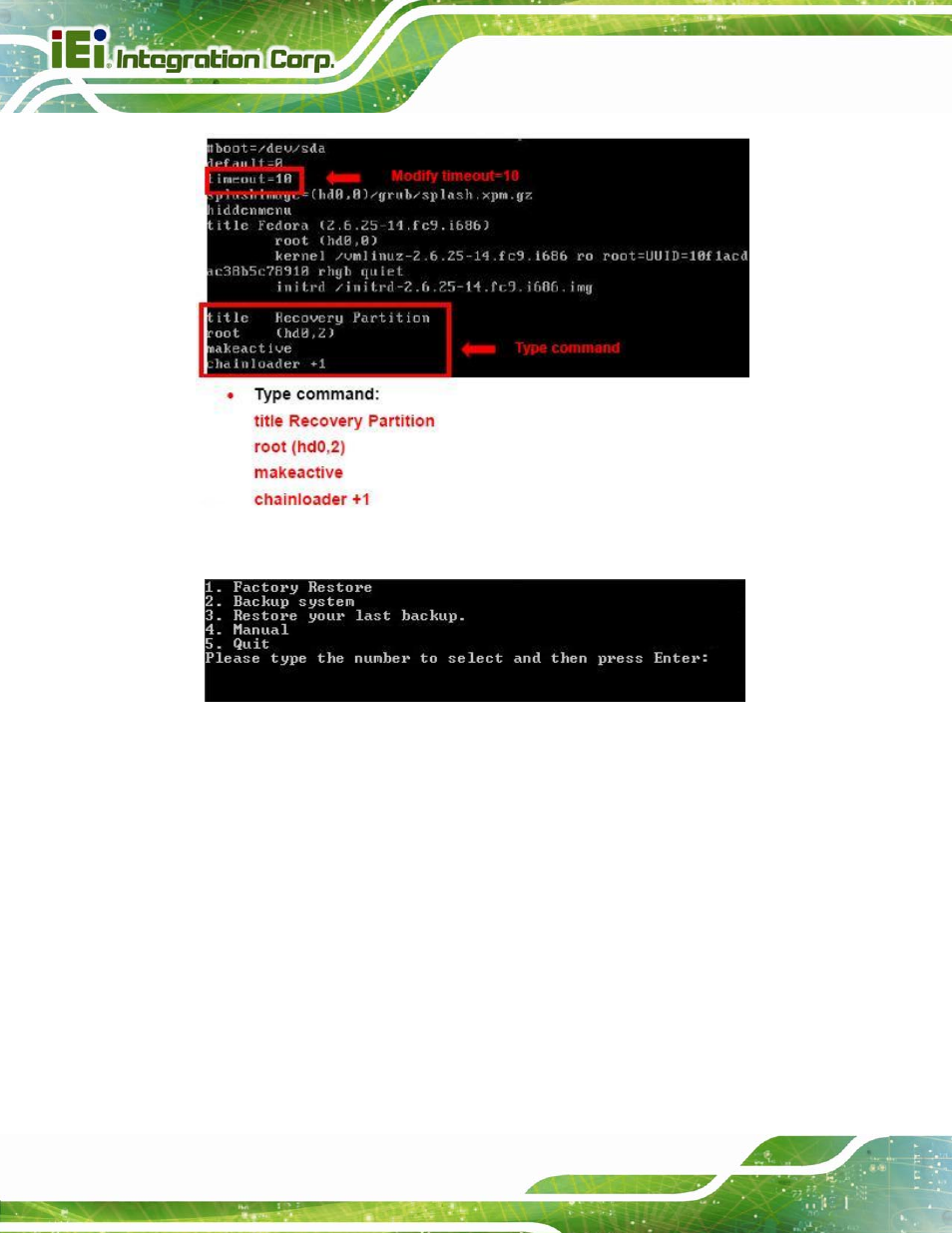

The recovery tool menu appears. (

79

Figure B-33)

Figure B-33: Recovery Tool Menu

Step 8:

Create a factory default image. Follow

Step 2

~

Step 12

described

in Section

79

B.2.5 to create a factory default image.

B.5 Recovery Tool Functions

After completing the initial setup procedures as described above, users can access the

recovery tool by pressing <F3> while booting up the system. However, if the setup

procedure in Section B.3 has been completed and the auto recovery function is enabled,

the system will automatically restore from the factory default image without pressing the

F3 key. The recovery tool main menu is shown below.
