PCIE-H610 PICMG 1.3 CPU Card

Page 45

Step 5:

Connect the fan cable. Connect the cooling kit fan cable to the fan connector

on the PCIE-H610. Carefully route the cable and avoid heat generating chips

and fan blades.

4.2.3 DIMM Installation

To install a DIMM, please follow the steps below and refer to Figure 4-6.

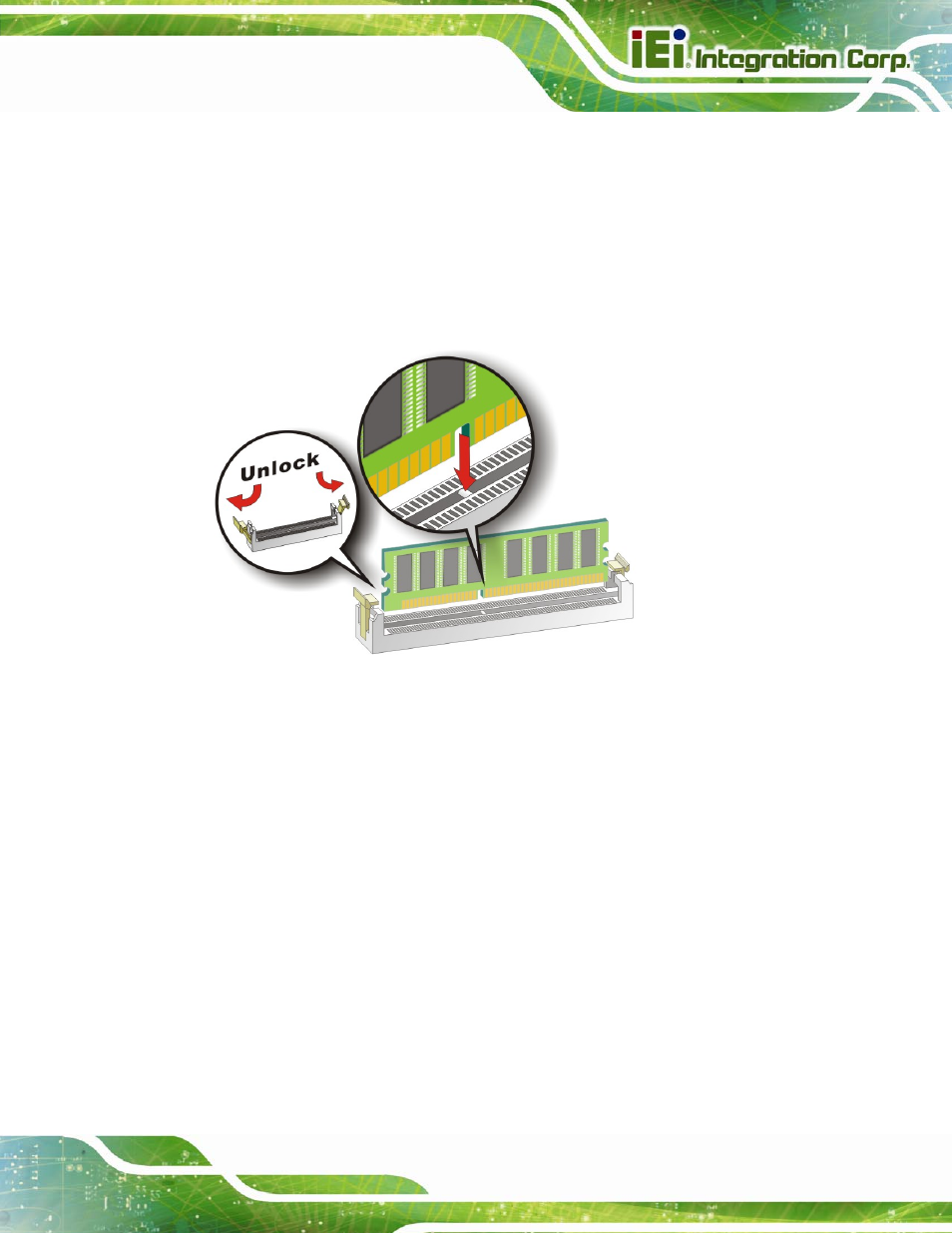

Figure 4-6: DIMM Installation

Step 1:

Open the DIMM socket handles. Open the two handles outwards as far as

they can. See Figure 4-6.

Step 2:

Align the DIMM with the socket. Align the DIMM so the notch on the memory

lines up with the notch on the memory socket. See Figure 4-6.

Step 3:

Insert the DIMM. Once aligned, press down until the DIMM is properly seated.

Clip the two handles into place. See Figure 4-6.

Step 4:

Removing a DIMM. To remove a DIMM, push both handles outward. The

memory module is ejected by a mechanism in the socket.
