3.2 Internal Peripheral Connectors

The section describes all of the connectors on the PCIE-H610.

3.2.1 Audio Kit Connector

CN Label:

J_AUDIO1

CN Type:

10-pin header

CN Location:

See Figure 3-2

CN Pinouts:

See Table 3-3

This connector connects to an external audio kit.

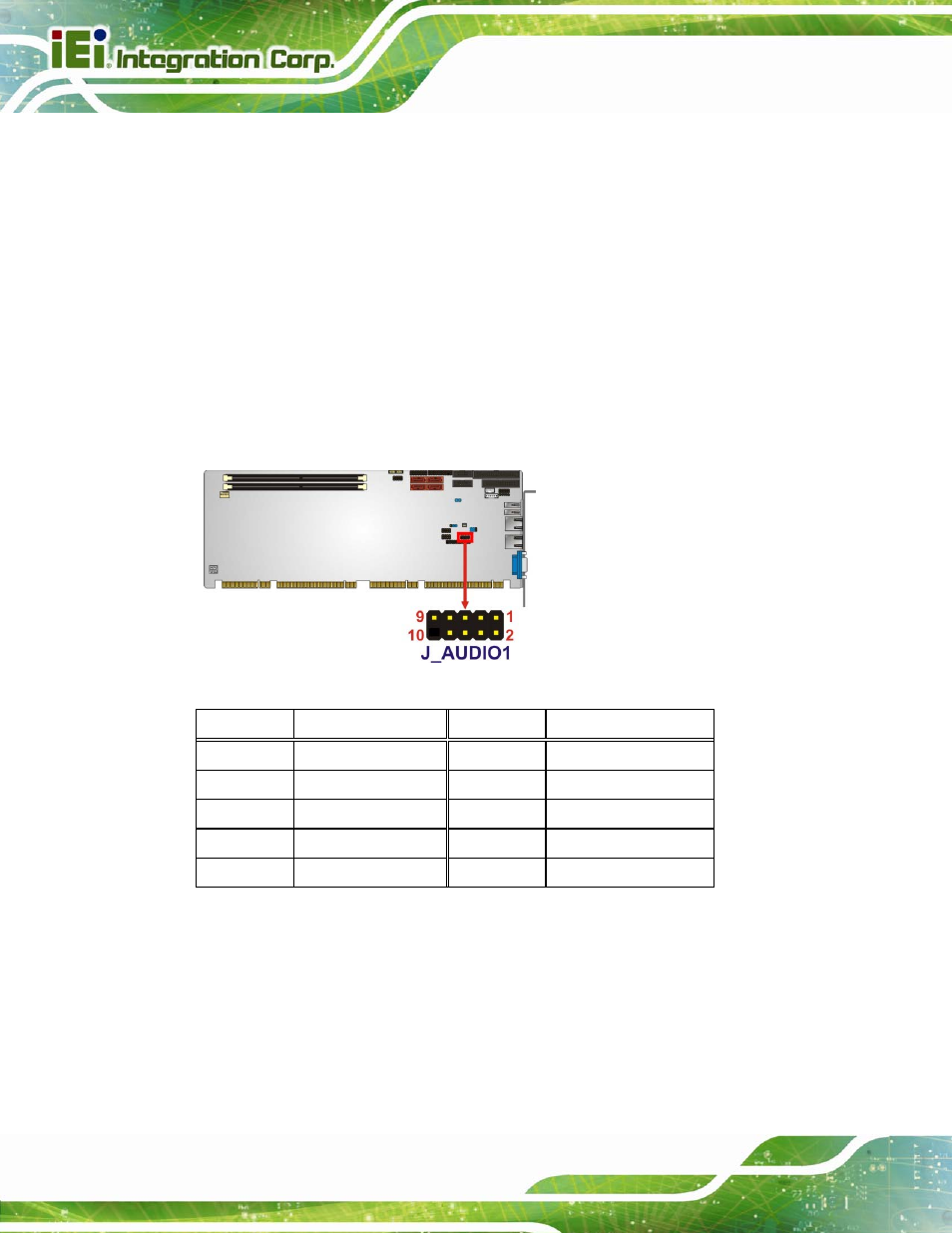

Figure 3-2: Audio Connector Location

Pin Description Pin Description

1 ACZ_SYNC 2 ACZ_BITCLK

3 ACZ_SDOUT

4 ACZ_PCBEEP

5 ACZ_SDIN 6 ACZ_RST#

7 ACZ_VCC 8 ACZ_GND

9 ACZ_12V 10

ACZ_GND

Table 3-3: Audio Connector Pinouts
