PCIE-H610 PICMG 1.3 CPU Card
Page 2
1.1 Introduction

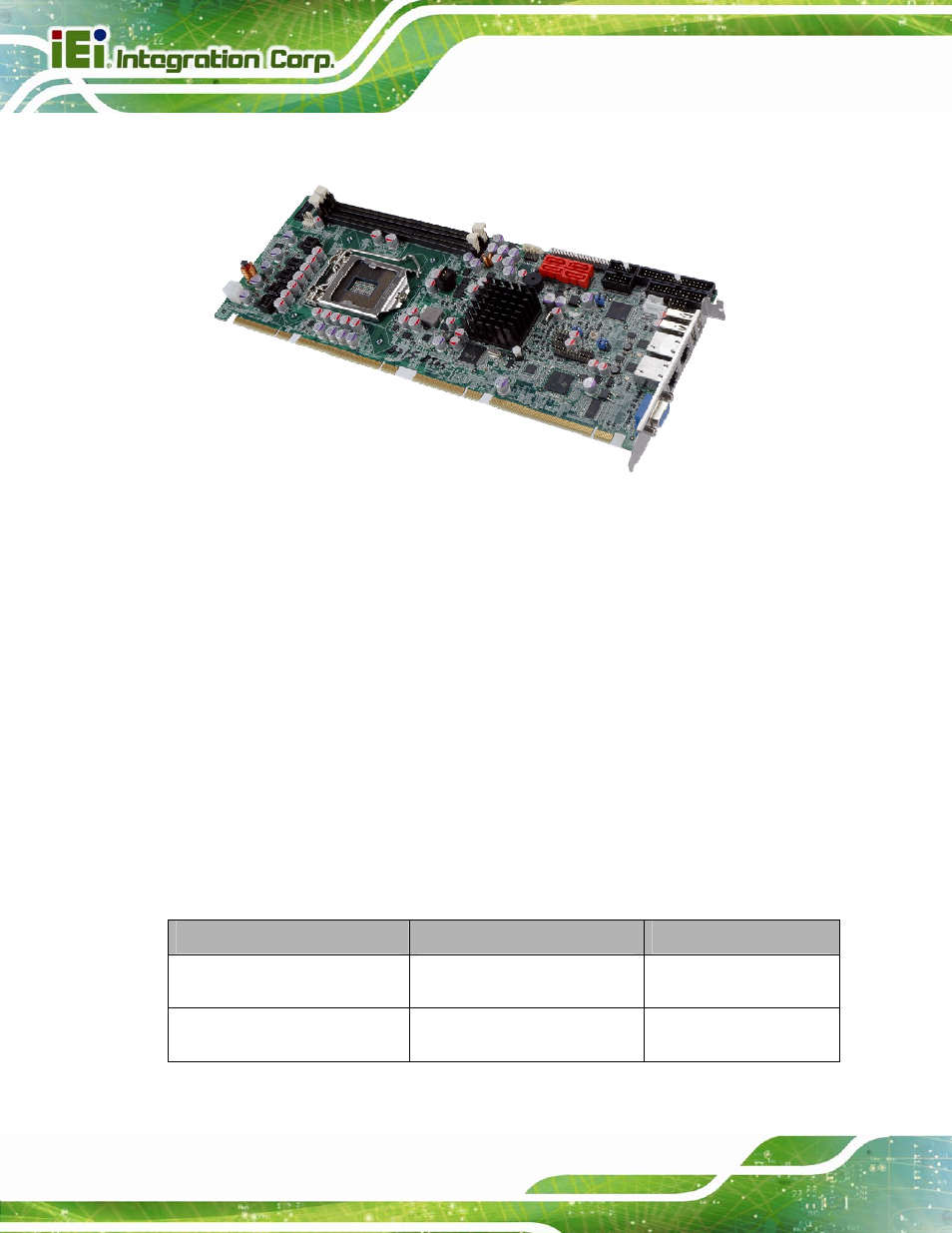

Figure 1-1: PCIE-H610
The PCIE-H610 PICMG 1.3 CPU card is a Socket LGA1155 32nm Intel® Core
i3/i5/i7/Pentium®/Celeron® processor platform that supports two 240-pin 1066/1333 MHz
dual-channel DDR3/DDR3L DIMM modules up to 16.0 GB.
The PCIE-H610 supports two GbE interfaces through the Realtek RTL8111E PCIe
Ethernet controllers. The integrated Intel® H61 chipset supports four SATA 3Gb/s drives.
Two USB 2.0 on the rear panel, four USB 2.0 by pin header and four USB 2.0 by
backplane pin header (via golden fingers) provide flexible expansion options. High
Definition Audio (HDA) support ensures HDA devices can be easily implemented on the
PCIE-H610.
1.2 Model Variations
The model variations of the PCIE-H610 are listed below.
Model No.
CPU Supported
DVI-D by 26-pin header
PCIE-H610-DVI-R10
LGA1155 Intel® Core™
i7/i5/i3/Pentium®/Celeron®
Yes
PCIE-H610-R10
LGA1155 Intel® Core™
i7/i5/i3/Pentium®/Celeron®
No
Table 1-1: PCIE-H610 Model Variations
