To connect the auxiliary power adapter, align the white arrow of the auxiliary power connector
with the arrow on the input connector on the back of the unit and push it in. To disconnect the
auxiliary power adapter, grasp the connector and pull it out.

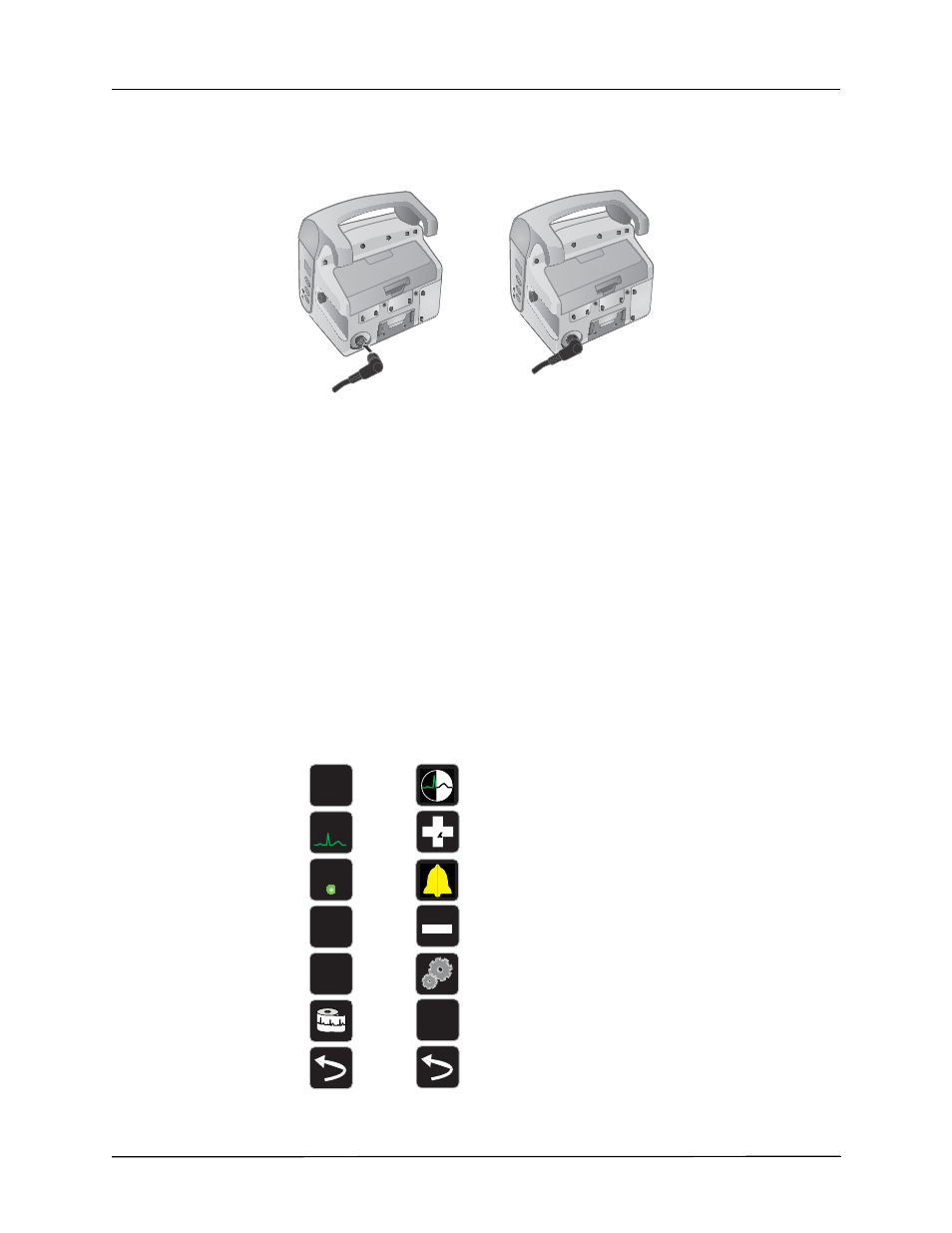

Figure 2-14.
Connecting the Auxiliary Power Adapter
Navigating the Display Screen
You can access the Propaq MD functions using the quick access keys that are located on the left
side of the display screen, and the navigation keys that are located on the right side of the front
panel.
Quick Access Keys
The seven quick access keys on the left side of the display screen are an easy way to access the
functionality of the Propaq MD. When you press the last key (left arrow), five more keys are
displayed.
I, II,
III...
Analyze
12
CO
2
LOG
IBP
R
First level keys
Second level keys
