Defibrillator Controls and Indicators
9650-0806-01 Rev. C Propaq MD Operator’s Guide 2–13
Pediatric-size electrodes are built in to the paddle assembly beneath the standard electrode
plates. The user must manually adjust energy settings to pediatric levels consistent with their
institution’s protocols.

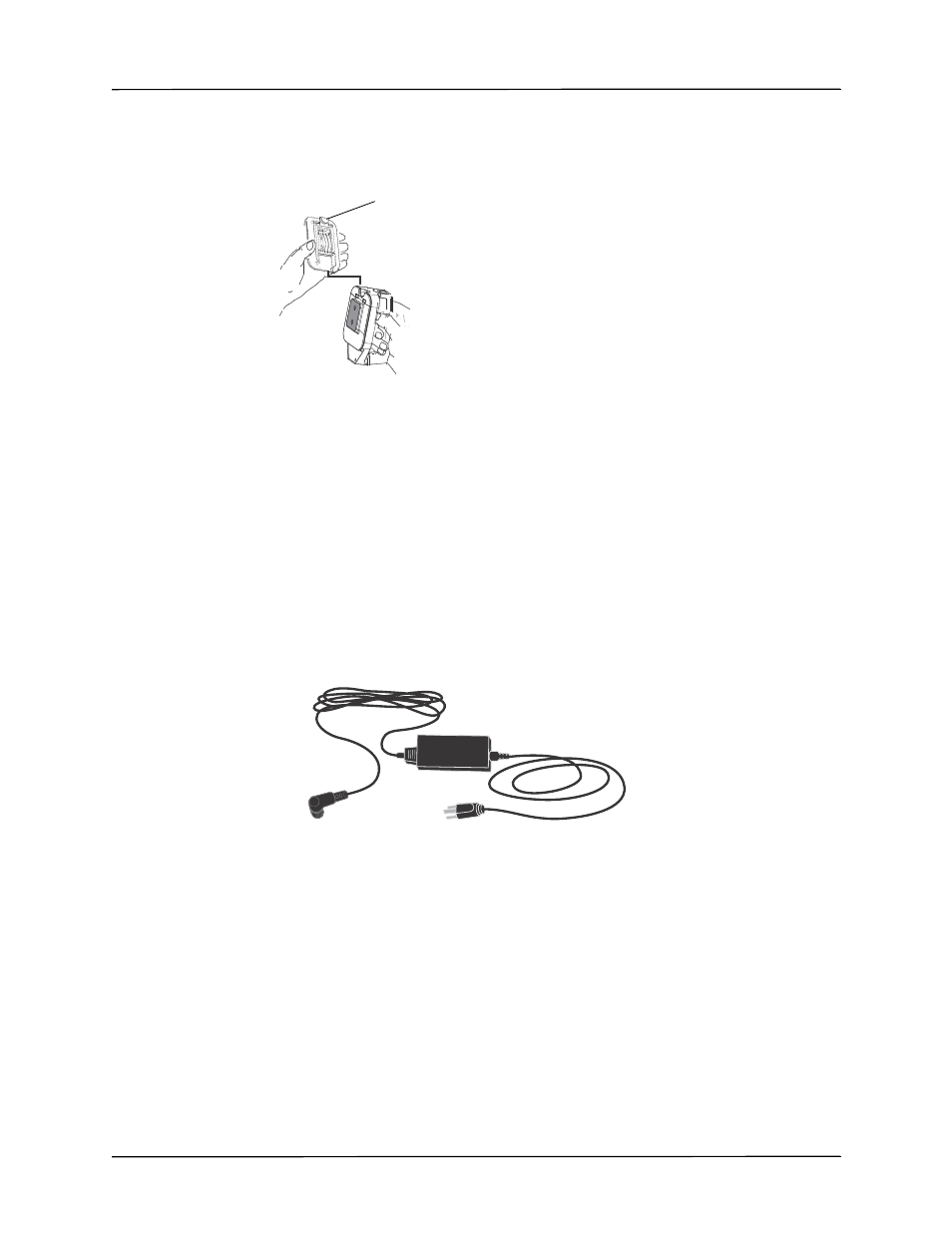

Figure 2-12. Pediatric Plate
Note: The Propaq MD defibrillator also supports ZOLL autoclavable internal handles for use
during open chest defibrillation procedures.
Auxiliary Power Adapter
The auxiliary power adapter is used as backup power to operate the Propaq MD unit. When it is
connected to the unit, it powers the unit and charges the battery that is installed inside it. When
the power cord is plugged in and the auxiliary power connector is inserted into the back of the
Propaq MD unit, the auxiliary power LED on the front panel illuminates and the auxiliary
power icon displays at the top of the display screen.
Figure 2-13. Auxiliary Power Adapter
To expose the pediatric plate, press the PEDI button at
the top of the paddle, then slide the Adult plate upward.
Before replacing the Adult plate, be sure to clean the
pediatric plate and surrounding area thoroughly.
Slide the Adult plate onto the paddle until it locks into
place.
PEDI button
