External paddles – ZOLL Propaq MD Rev C User Manual
Page 50
C
HAPTER
2
P
RODUCT
O
VERVIEW
2–10
www.zoll.com
9650-0806-01 Rev. C

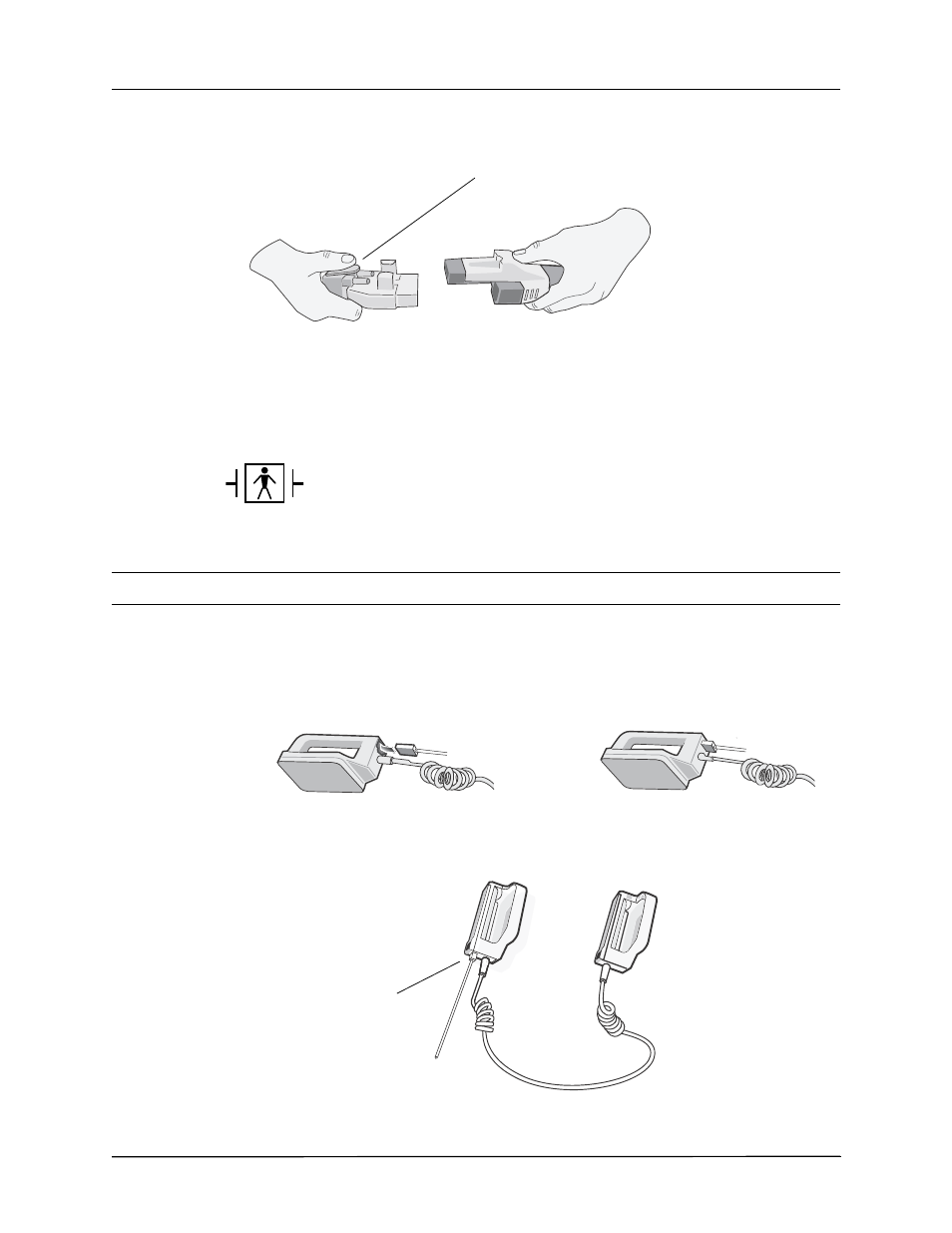

When disconnecting the OneStep electrode and OneStep cable, press down the latch with your
thumb as shown.
External Paddles
The external paddles on the Propaq MD device are used for defibrillation and synchronized
cardioversion.
Caution
You cannot use paddles for external transcutaneous pacing.
Attaching the MFC cable
Attach the MFC from the Propaq MD unit to the connector at the base of the APEX paddle.
Figure 2-7.
Attaching the MFC to the APEX Paddle
Figure 2-8.
MFC Connected to APEX Paddle
Latch
Paddles are defibrillation-proof Type BF equipment.
1. Align MFC as shown.
2. Insert MFC into APEX handle.
MFC connected to
APEX paddle
MFC Connected to
APEX Paddle
