ZOLL Propaq MD Rev C User Manual
Page 51
Defibrillator Controls and Indicators
9650-0806-01 Rev. C
Propaq MD Operator’s Guide
2–11
If you need to detach the MFC from the APEX paddles, push the RELEASE button (see Figure
2-11) in the direction of the arrow and unplug the MFC.
Attaching the OneStep Cable
When connecting a OneStep electrode to the OneStep cable, push the two connectors together
until the latch clicks, as shown.
When disconnecting the OneStep electrode and OneStep cable, press down the latch with your
thumb as shown.
When attaching the OneStep cables to paddles, attach the OneStep cable from the Propaq MD
unit to the connector at the base of the apex paddle.

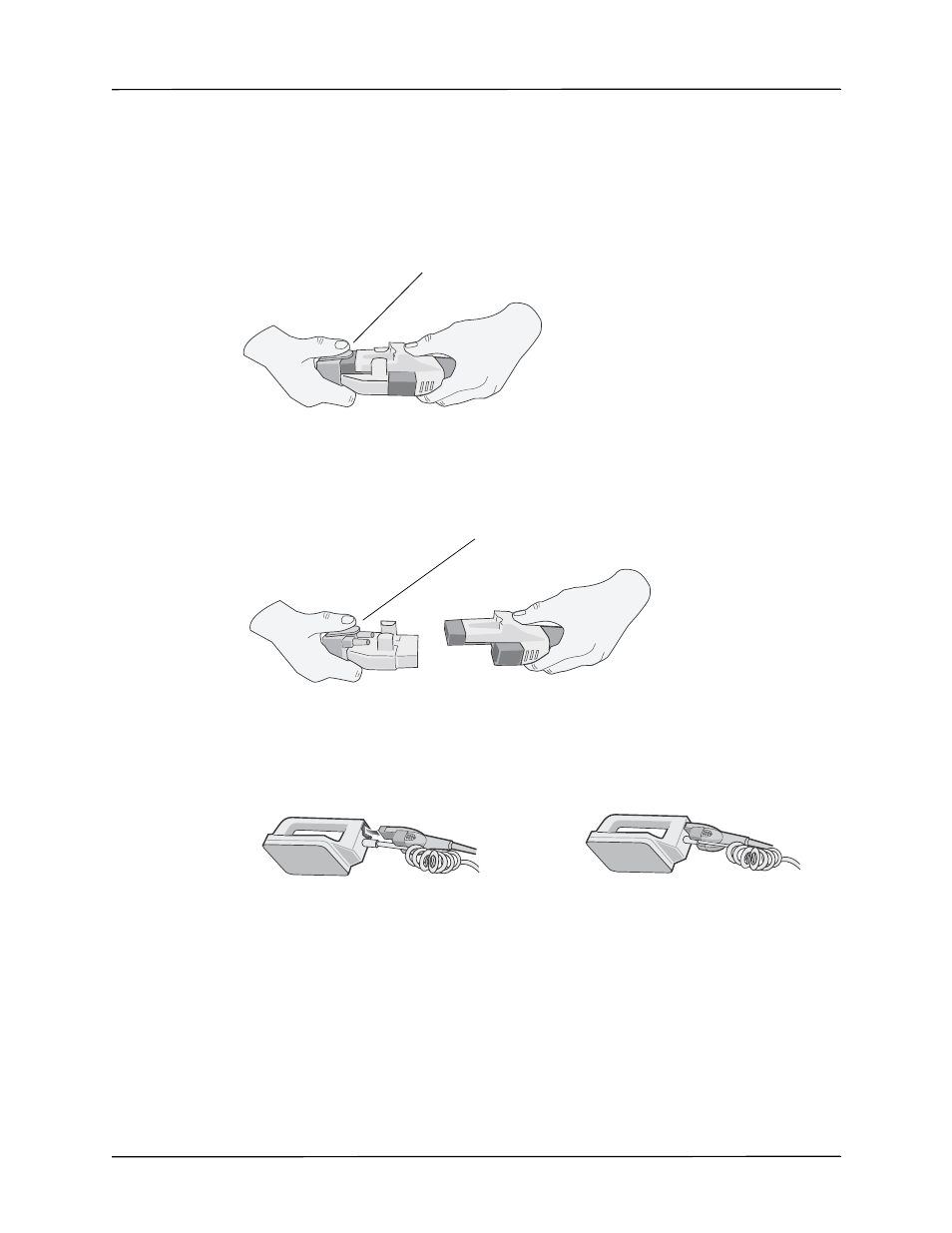

Figure 2-9.
Attaching the OneStep Cable to the APEX Paddle
Latch
Latch
1. Align OneStep cable as shown.
2. Insert OneStep cable into APEX paddle.
