Caution
Changing the selected energy while the unit is charging or charged causes the defibrillator to
disarm itself. Press the CHARGE button again to charge the unit to the newly selected energy
level.
Press the CHARGE button again to confirm the charge.

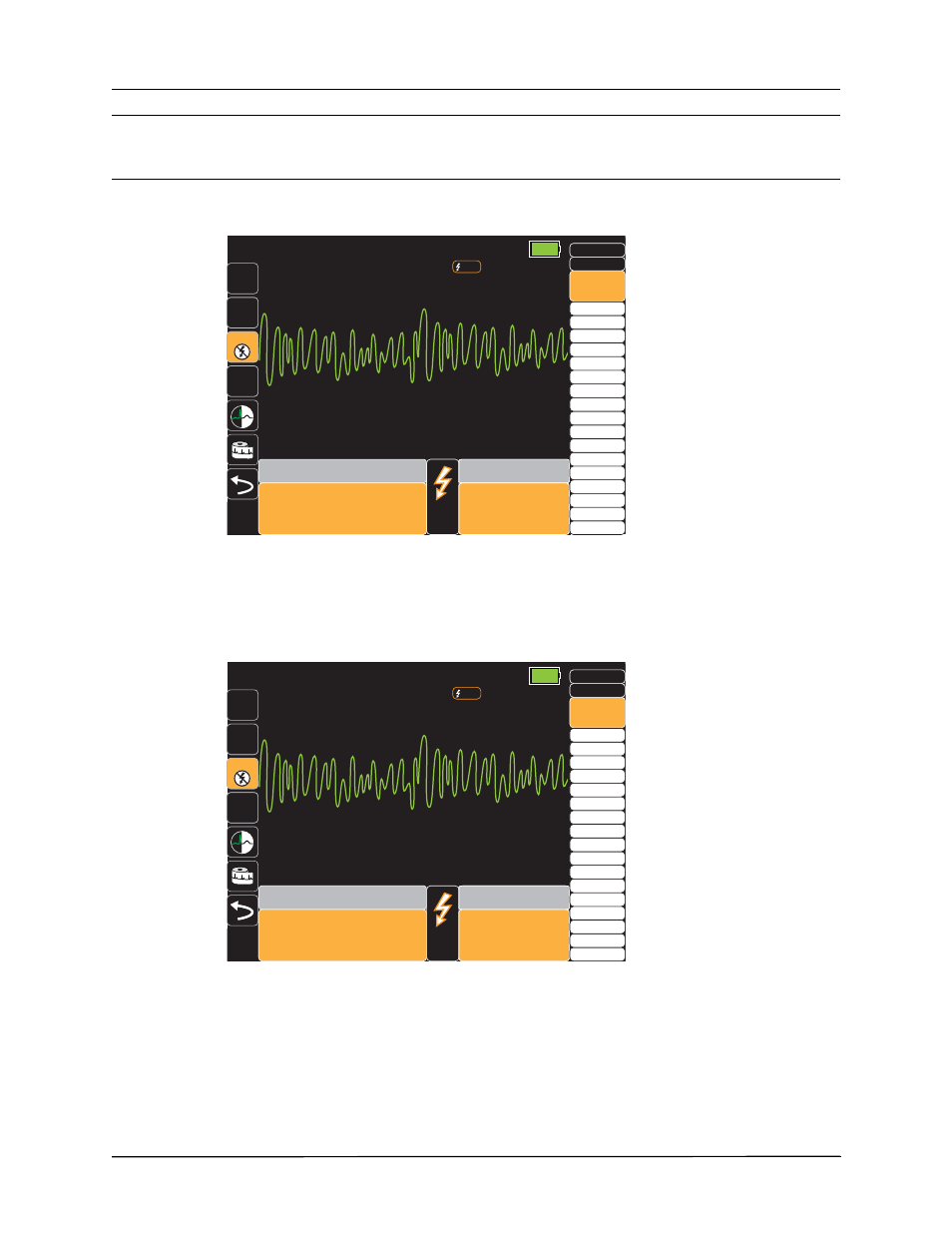

A charging message displays at the bottom of the screen, and a distinctive charging tone sounds
indicating that the unit is charging. The energy range bar graph on the right side of the display
highlights the charge level until it reaches the selected energy. When the unit is fully charged,
the tone changes to a continuous charge ready tone, the highlighted energy bar graph includes
the selected energy, and the charge indicator on the APEX paddle lights up.
