1A-1
1A
1A-2
1A-3
1B
3
2
4
How to Order:
1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B and Item 2.
3. Specify Voltage for Item 4.
Example:
SFC-170 Clutch per I-25756 - 90 Volt
Antibacklash Armature
1/4" Armature Hub Bore
1/4" Rotor Bore
These units meet standards set forth in UL508 and are
listed under guide card #NMTR2, file #59164.
These units are CSA certified under file #LR11543.
Item Description Part Number Qty.
1A Armature and Hub
1A-1 Armature Hub 1
1/4" Bore 5102-541-002
5/16" Bore 5102-541-003
3/8" Bore 5102-541-004
1A-2 Armature 110-0111 1
1A-3 Release Spring 808-0019 1
1B Antibacklash Armature 1
1/4" Bore 5623-111-008
5/16" Bore 5623-111-009
3/8" Bore 5623-111-010
2 Rotor 1
1/4" Bore 5603-751-028
5/16" Bore 5603-751-029
3/8" Bore 5603-751-030
3 Mounting Accessory 5102-101-001 1
4 Field 1
6 Volt 5603-451-047
24 Volt 5603-451-049
90 Volt 5603-451-051

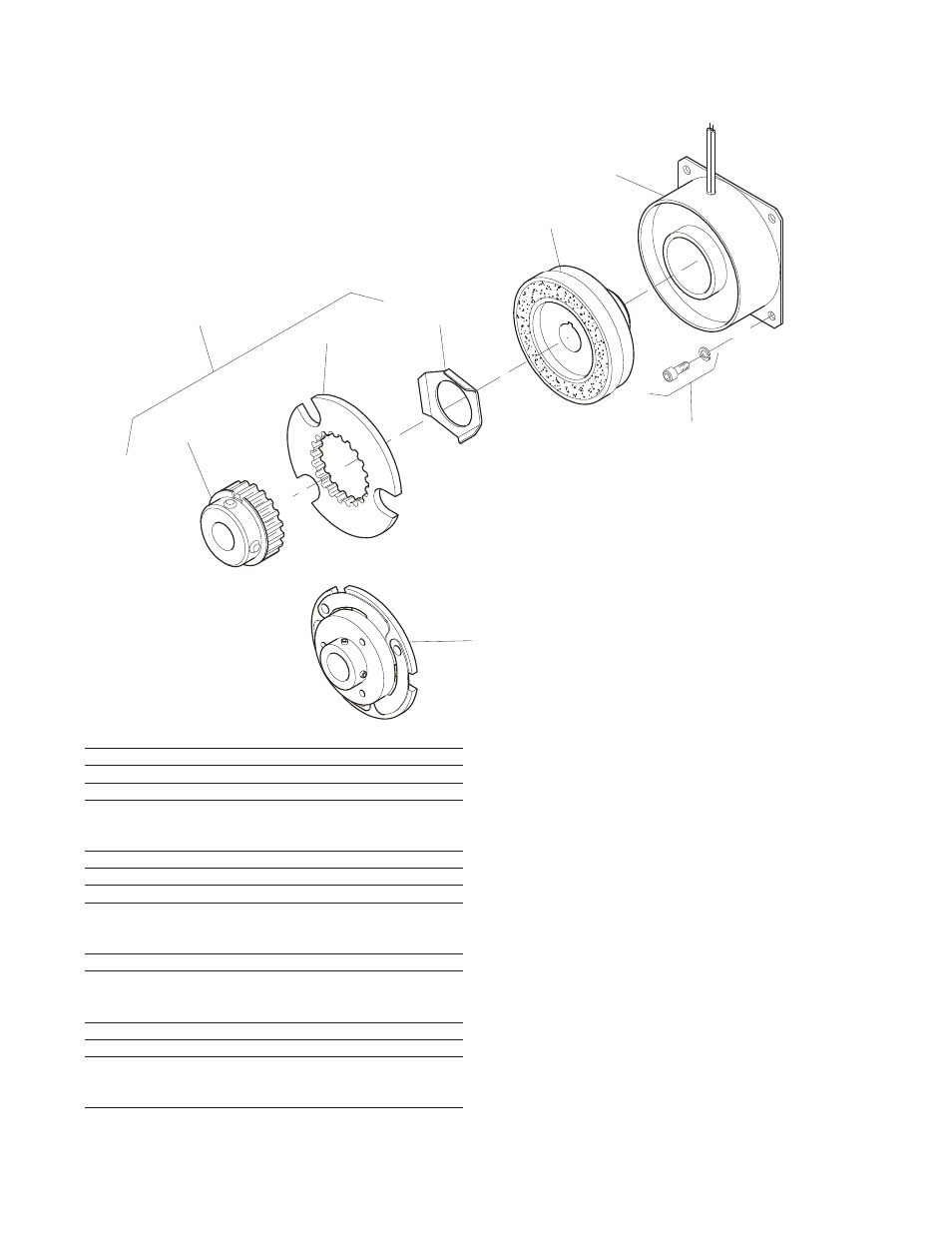

SFC-170 Clutch Coupling Flange Mounted – Outside Mounted Drawing I-25756
33 Warner Electric • 800-825-9050 P-200
• 819-0481
