Warner Electric SFC-120, SFC-170, SFC-250, SFC-400 Bearing Mounted, Flange Mounted - Manual (Page 27)

1
2
3
4
(Shipped Assembled)
4-1
4-2
4-3
4-2
4-4
4-4-1
4-5

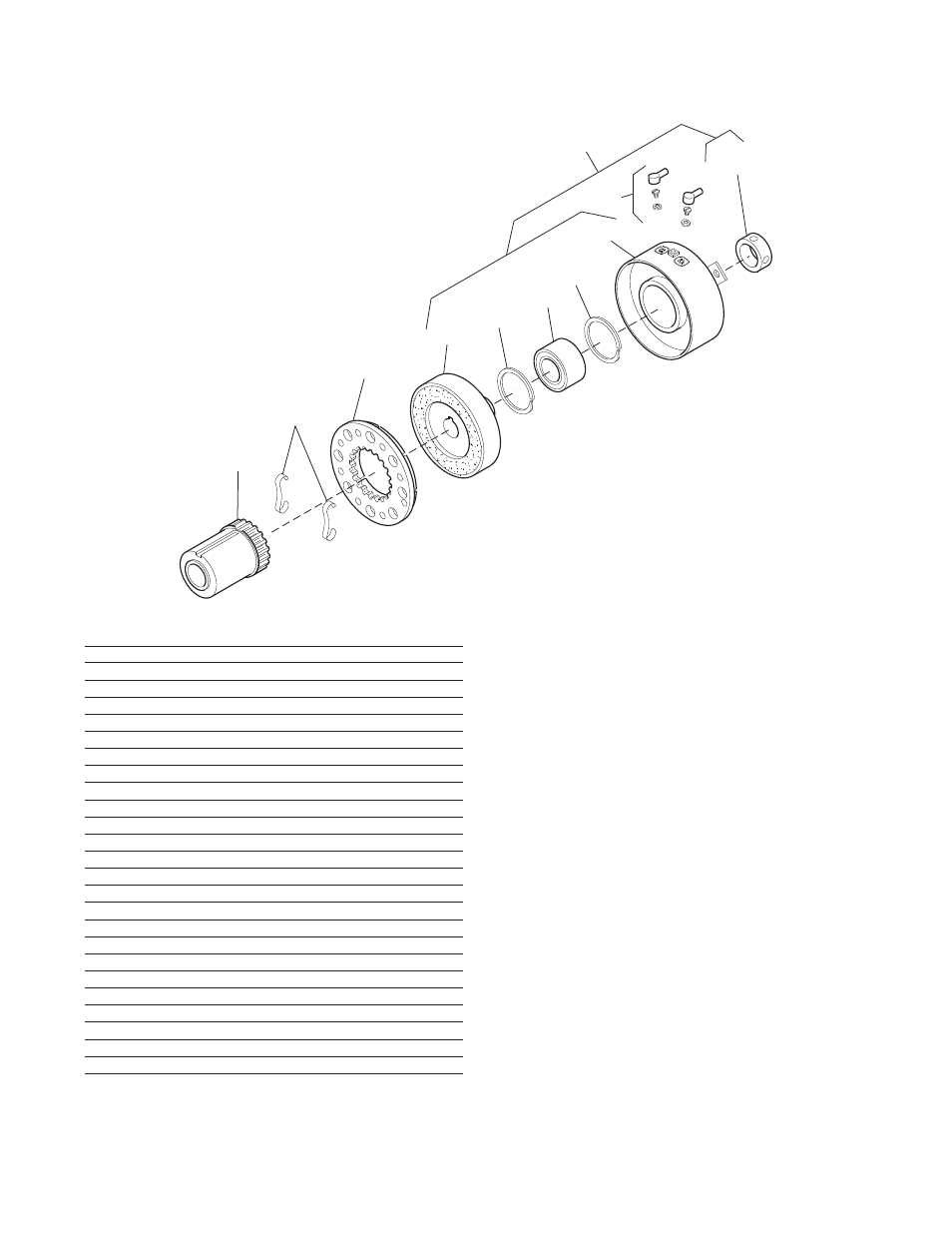

SF-250 Clutch Bearing Mounted Drawing I-25521
Item Description Part Number Qty.
1 Armature Hub 1
3/8" Bore 5124-541-002
1/2" Bore 5124-541-003
5/8" Bore 5124-541-005
2 Release Spring 5103-101-003 1
3 Armature 5124-111-001 1
4 Field and Rotor Assembly 1
6 Volt – 3/8" Bore 5103-452-002
24 Volt – 3/8" Bore 5103-452-004
90 Volt – 3/8" Bore 5103-452-007
6 Volt – 1/2" Bore 5103-452-016
24 Volt – 1/2" Bore 5103-452-018
90 Volt – 1/2" Bore 5103-452-021
4-1 Rotor 1
3/8" Bore 5103-751-014
1/2" Bore 5103-751-016
4-2 Retainer Ring 748-0371 2
4-3 Ball Bearing 166-0108 1
4-4 Field 1
6 Volt 5103-451-018
24 Volt 5103-451-020
90 Volt 5103-451-023
4-4-1 Terminal Accessory 5103-101-002 1
4-5* Set Collar 266-0005 1
*Used with 1/2" Bore only.
How to Order:
1. Specify Bore Size for Item 1 and Item 4.
2. Specify Voltage for Item 4.
Example:
SF-250 Clutch per I-25521 - 90 Volt
1/2" Armature Hub Bore
1/2" Rotor Bore
These units meet standards set forth in UL508 and are
listed under guide card #NMTR2, file #59164.
These units are CSA certified under file #LR11543.
