Warner Electric SFC-120, SFC-170, SFC-250, SFC-400 Bearing Mounted, Flange Mounted - Manual (Page 21)

1A
1A-1
1A-2
1A-3
2
3
4
1B

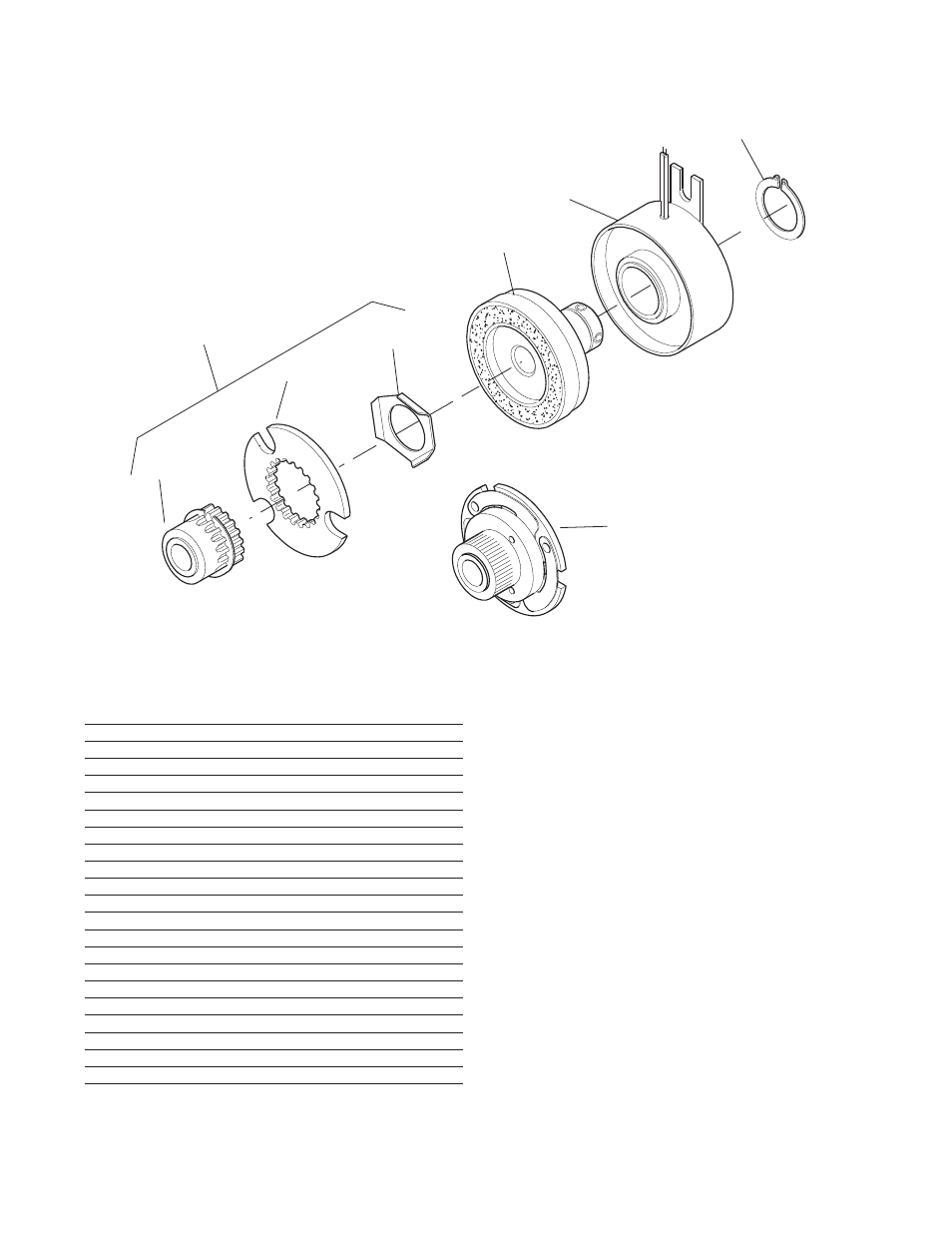

SF-170 Clutch Bearing Mounted Drawing I-25755
Item Description Part Number Qty.
1A Armature and Hub
1A-1 Armature Hub 1
1/4" Bore 5123-541-002
5/16" Bore 5123-541-003
3/8" Bore 5123-541-004
1A-2 Armature 110-0111 1
1A-3 Release Spring `808-0019 1
1B Antibacklash Armature 1
1/4" Bore 5603-111-033
5/16" Bore 5603-111-034
3/8" Bore 5603-111-035
2 Rotor 1
1/4" Bore 5603-751-019
5/16" Bore 5603-751-021
3/8" Bore 5603-751-020
3 Field 1
6 Volt 5603-451-039
24 Volt 5603-451-041
90 Volt 5603-451-043
4 Retainer Ring 748-0024 1
How to Order:
1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B and Item 2.
3. Specify Voltage for Item 3.
Example:
SF-170 Clutch per I-25755 - 90 Volt
Antibacklash Armature
1/4" Armature Hub Bore
These units meet standards set forth in UL508 and are
listed under guide card #NMTR2, file #59164.
These units are CSA certified under file #LR11543.
21 Warner Electric • 800-825-9050 P-200
• 819-0481
