F:\Manual\SM-1517R-110V-100514 14.05.2010. - 21 -
PS2
SERIES NO. STRETCH WRAPPING MACHINE
LS2
26, Sec. 1, Ta Fu Road, Tan Tzu Hsiang,
Taichung Hsien, Taiwan, R.O.C. SHII MEEI INDUSTRIAL CO., LTD. LS2-2
l ON
0 O FF
9 8 7
PS2
Kgs. WEIGHT bar AIR SM- ITEM NO.
TEL:88 6 4 533−6601
PS1
LS2-1
M1
M1 LS2 -1 LS2
PS1
Phase A DATE V
R
Hz POWER
FAX:886 4 533−6776
3
6
Power
For SM-251 7 Only Follower-Plate Up Turntable Slo w Down
Film Seat Zero Return
Turntable Zero Return
Film Cut Stan d By (AUTO)
2
5
1
4
Follower-Plate Down
LS4-Down LS3 -Up
M3
LS1
PH
M2 BK2
No Film (SM-1517R)
BK2 Fuse Fail BK2 Fail M2 Motor Trip-Out
Emergency Stop M1 Motor Trip-Out Breakdown Indicator
M2
PH
LS1
M3
BK2
LS2 -2

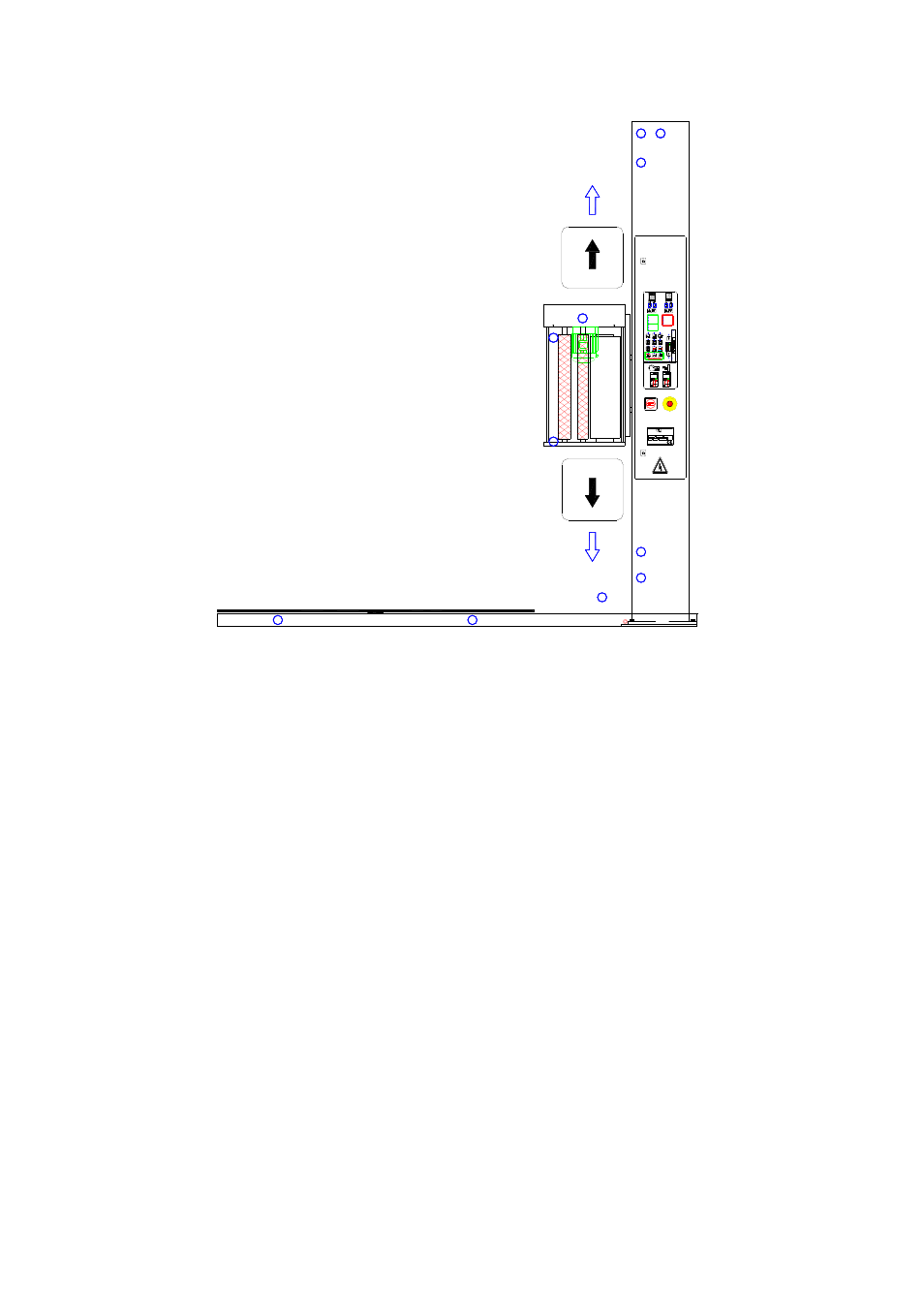

5-5 Motion Indication
M2 Motor Ascending and Descending Indicator
If this LED light is on indicates the M2 motor is in operation, the pre-Stretch Unit is ascending or
descending.
LS1 Upper Limit Safety Switch Indicator
If this LED light is on, indicates the package has over the packing height limit of this machine or
the PH (height detecting optical sensor) has failed; please check if the package height has over the
limit or PH sensor has failed.
M3 Pre-Stretch Unit Motor Indicator
When the turntable is starting to rotate and the film pulls the free roller, this light will be on and the
film will start to be sent out from the Pre-Stretch Unit; if this LED light is not on, the film will not
be sent out from the Pre-Stretch Unit.
PH Height Detecting Optical Sensor Indicator
When PH has detected the package, this LED light will not be on. Once the film carrier ascend and
the PH sensor can not detect the package, this light will be on and the film carrier stop.
LS2-2 Pre-Stretch Unit Safety Switch Indicator
This switch is parallel link with the LS2 (lower Limit Safety Switch). When this LED light is on
