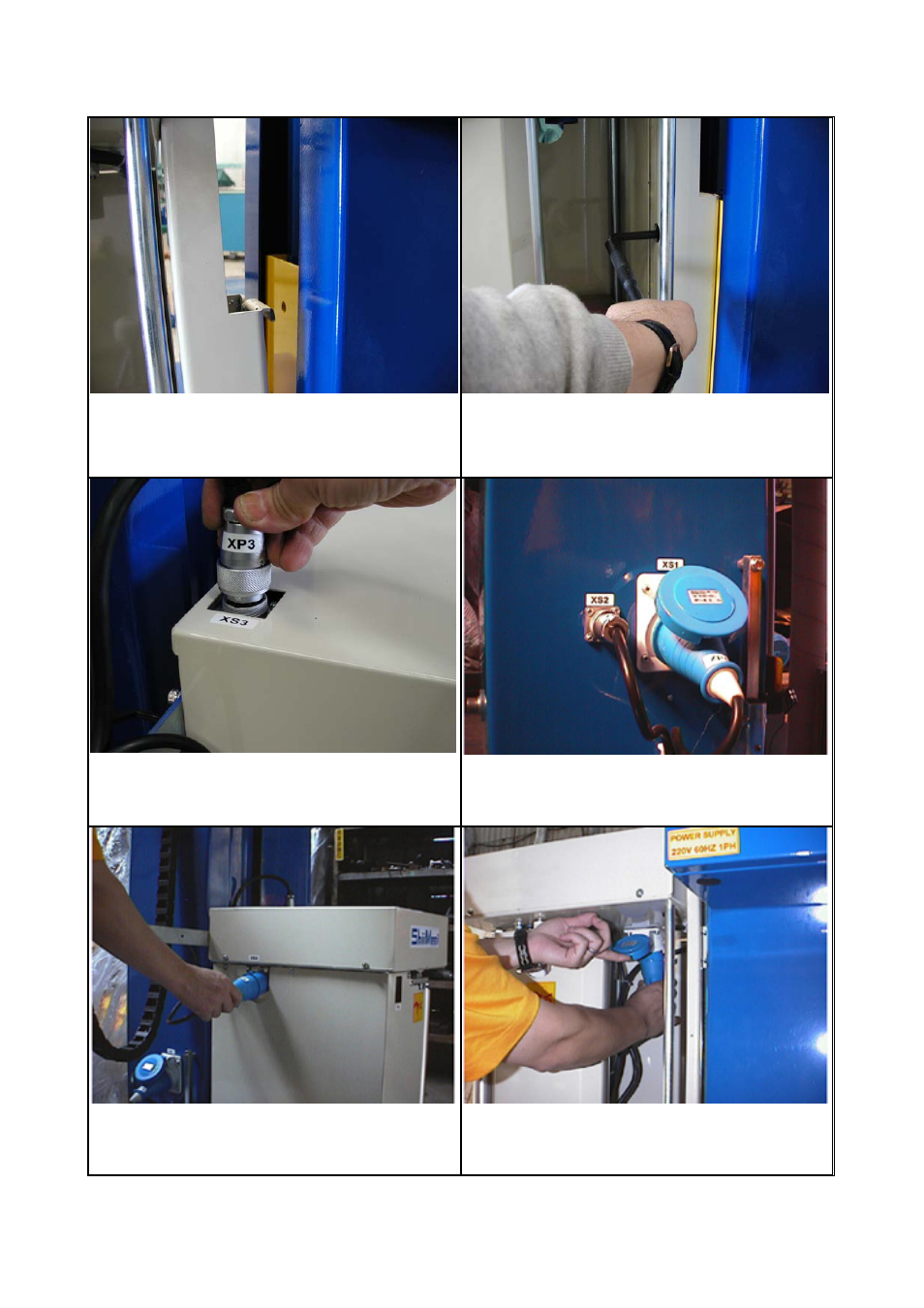

4-5 Assemble the Pre-stretch Unit
Place the M12 x 55 bolts into place and hook the
pre-stretch unit onto the film seat.
Make sure bolts are tightened onto the film seat
to secure the pre-stretch unit and ensure safe
operation.
Connect XP3 onto XS3 and tighten.
Connect XP1 onto XS1.
Extend connection point XP4 through the
pre-stretch unit.
Connect XP4 onto XS4.
