4-3 Handling and Transportation
Caution!
The machine shall be moved by persons who are qualified. Persons exclude the
operators are not allowed to stay in the work place during transporting the machine.
1. Please refer to machine specifications to arrange handling equipment. Be sure to use capable
fork-lifter to lift of machine.
2.
The handling and transportation shall be carried out by qualified persons.
3. Forklift that used in handling the machine shall be operated by a qualified driver.
4. Before handling, make sure all movable parts are secured in their positions and all movable
accessories should be removed from machine.
5. During handling, people are strictly prohibited from entering into the path of machine
movement.
6. While transportation, keep attention to the balance of machine.

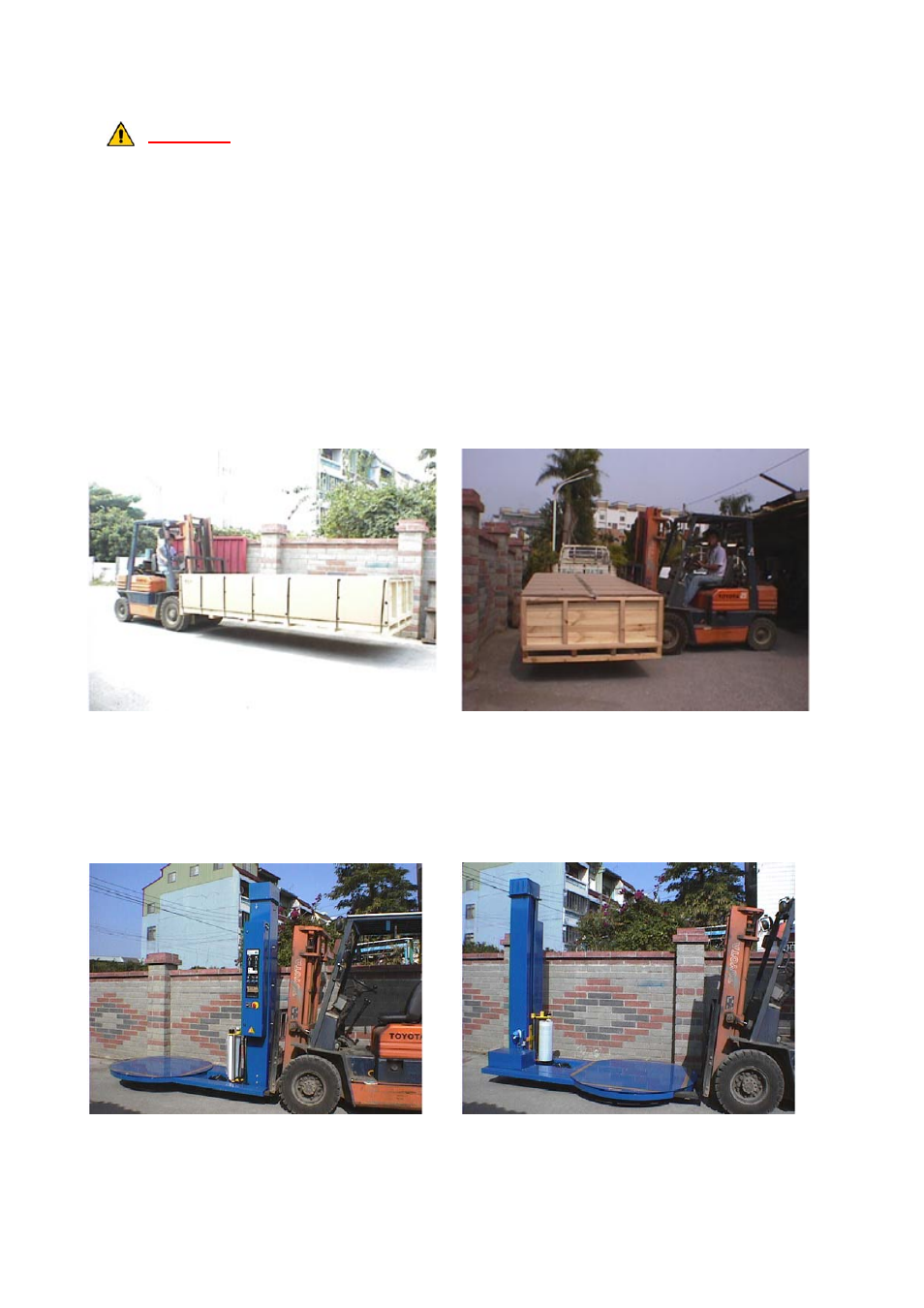

7. As the fork position, please refer to the diagrams shown below.
Fig.1 Fig.2
For machine pack transportation:
1. If the machine pack is transported from the narrow side, the fork length used on the forklift
should be more than 2.2 m. (as shown in the illustration diagram Fig.1)
2. If the machine pack is transported from the wide side, the fork length used on the forklift should
be more than 1 m. (as shown in the illustration diagram Fig.2)
Fig.3 Fig.4
For machine handling, please do it according to that shown in the illustration diagram Fig.3 and
Fig.4
